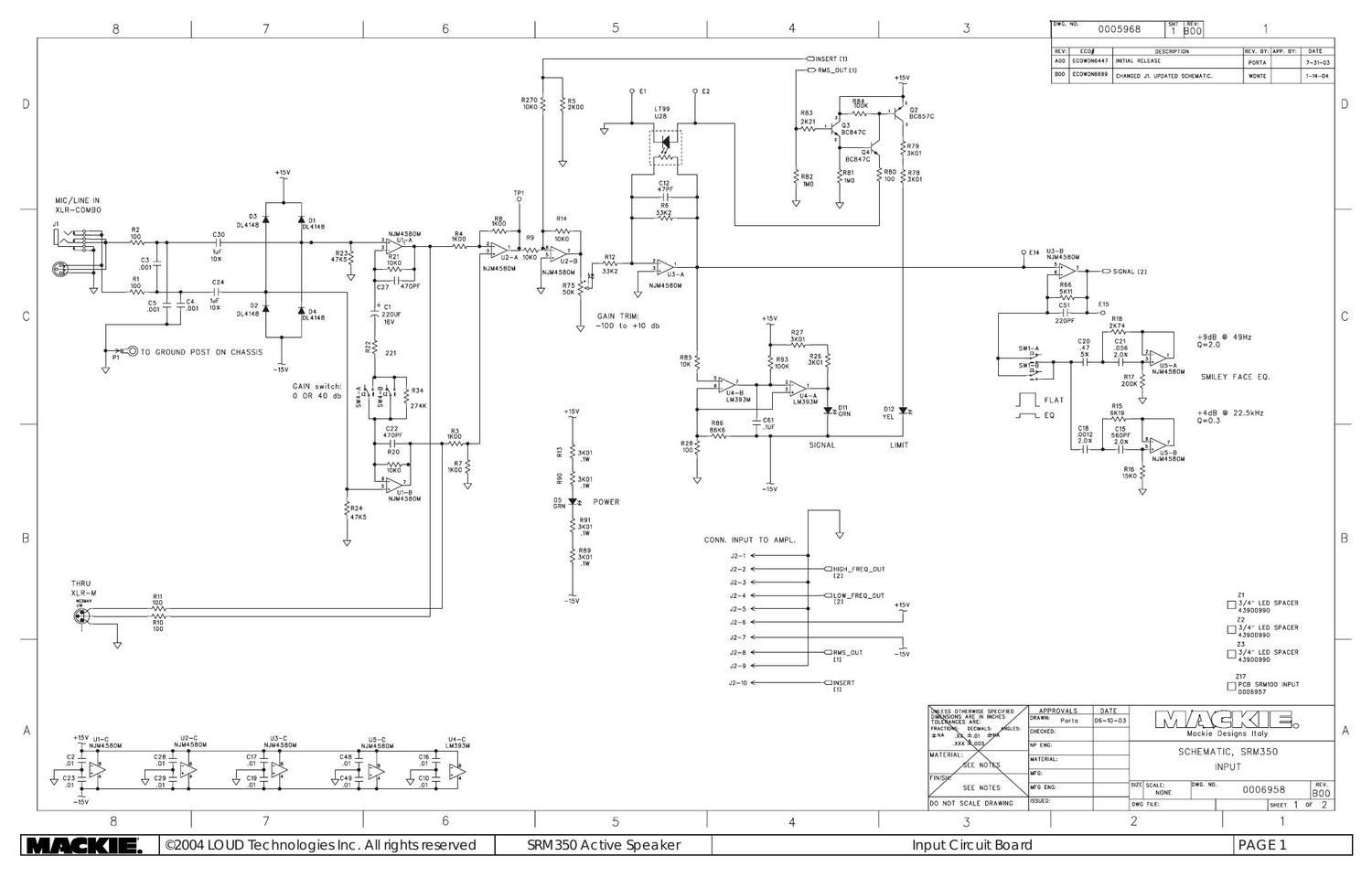

Mackie SRM350 Input Board Schematics

This is the 3 pages manual for Mackie SRM350 Input Board Schematics.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 3
left right
Mackie SRM350 Input Board Schematics

Extracted text from Mackie SRM350 Input Board Schematics (Ocr-read)

Page 1

©2004 LOUD Technologies Inc. All rights re served SRM350 Active Speaker Input Circuit Board PAGE 2

Page 2

©2004 LOUD Technologies Inc. All rights re served SRM350 Active Speaker Input Circuit Board PAGE 3 Top view Top viewBottom surface view, looking through the board from the top Bottom surface view
