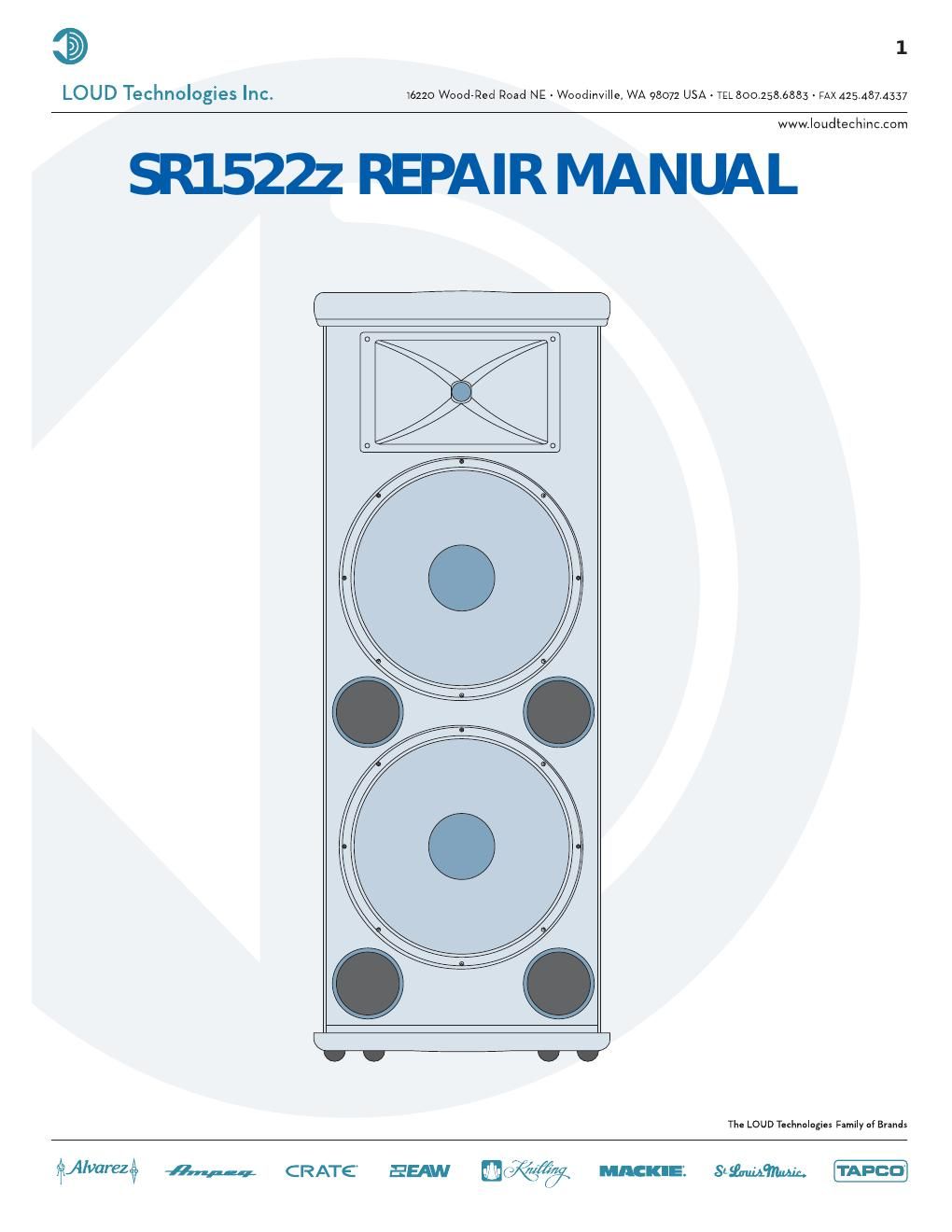

Mackie SR1522z Repair Manual

Page 2

(3

2

LOUD Technologies Inc. 16220 Wood-Red Road NE - Woodinville, WA 98072 USA . TEL800.258.68&3 - rAx425,487.4337

These instructionsare intended to help restore any ailing SR15222Active

www.|oudtechinc.com

Loudspeaker backto factory working conditions They show how to remove and
replace the driversand the amplifierassembly.

Please contact Mac kie Tech Support (1-800-898-3211) to receive a Service
Request Numberand Order Numberfor parts needed forthis restoration. They will
also help you determine the nature ofthe problem and what partswill repairthe unit.

Tools needed:

***NOTE: not all toolslisted below will be needed foryourrepain°l°t

Phillips head screwdriver.

3mm and 5mm allen wrenches
8mm open end wrench.

Solid workbench.

Non-carpeted workarea due to static electricity. Ifavailable, an ESD mat
(Electro-static discharge) isoptimal.

Parts needed:

WNOTE: not all partslisted below will be needed foryourrepair"°°k

Led PCBAssembly Part #0007334 pages 3-4
15" Woofer (Botto m) Pa rt #0013913 pa ges 5-6
15" Woofer (Top) Pa rt #0013913 pa ges 7-9
High Freq uency Dn'ver Pa rt #0008093 pages 1013
Diaphragm Part #coming soon pagesl4elS
AmplifierAssembly Pa rt #0014138-00 pages 16-19

& Safety Vlbmings:

Make sire thatyou turn off the unitand disconnectthe powercord (and all
othercords) before you begin these procedures

Always use safety glasses!
Please try NOTto touch any ofthe pcb circuitry, capacitors, resistors, etc.

Take care to read and follow these instructions It may help to read the
instructionspriorto the repairto get an idea of what it entails.

Before beginning the repair, touch metal to discharge any lingering internal
static electricity.
