Luxman SQ 700 X Owners Manual

Page 1

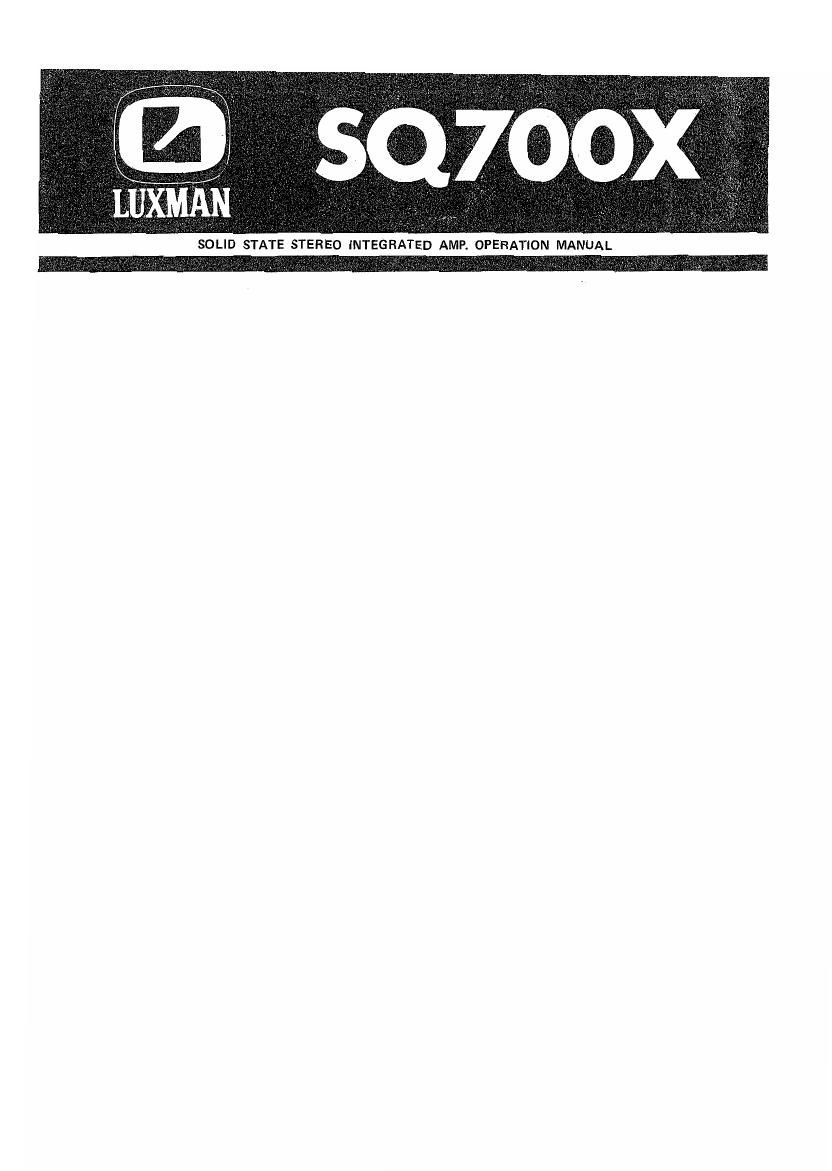

SOLID STATE STEREO INTEGRATED AMP. OPERATION MANUAL

Page 2

NOMENCLATURE AND USAGE OF EACH CONTROL

1) Input Selector Switch

This switch permits proper selection of desired programme
sources. You may set either of the positions (PHONO-i,
PHON0-2, AUX-1, AUX-2). Input selection shall be com-
pleted by setting this switch on the corresponding position
to the desired programme sources after connection of
input.

2) Treble Level Control

This is level control to vary the treble response. A clockwise
turn of the knob boosts the treble response, and counter-
clockwise decreases and cuts off. This knob has the
click-stopper of 11 points, and yields flat frequency
response at the centre of rotation angle. You can choose a
turn-over (roll-off) frequency at either of 2.5KHz or 5KHz
with the selector switch (3).

This level control is of independent structure, and permits
separate control of both left and right channels. The left
one is for left channel and the right one for right channel.
This is convenient for adjustment of different levels
between both channels due to different output of the
speaker systems.

Fl. lill'llT SELECTOR SWITCH

2. TliEliLE LEVEL [IflllTllfl

3) Treble Frequency Selector Switch

Treble turn-over or roll-off frequencies of the treble level
controii2) can be selected by this switch. You may choose
2 points (2.5KHz, 5KHz). By setting on 2.5KHz position
you can intensify treble response of tone control for the
purpose of adjusting the treble end response by leaving the
mid range on the flat response this switch shall be set on
5KHz position.

4) Bass Level Control

A clockwise turn of this knob boosts the bass response,
while counter-clockwise decreases and cuts off. This control
is of the same structure as that of Treble Level Controli2)
and an operation corresponds to what is expressed in (2).

5) Bass Frequency Selector Switch

Function-wise this is the same with Treble Frequency
Selector Switch expressed in [3). To intensify tone control
effect it shall be set on 500Hz position.

6) Tone Defeat Switch

By setting this switch on "defeat" position a flat frequency
response is obtained irrespective of the positions of Bass
Level Control and Treble Level Control.

li. MDDE SELECTOR SW iTCli

L TU. VOLUME liUllTlTllL-1

(LillliliLE FEEBUENEV SELEBTlTli SWTTDII

7. PlLflT LAMP

l2. SPEAKER SWITIlll

5. BASS fliEfllJl-TNLY

13.TAPE MBHTTDH SWITEil
-8.TUIIE EEFEAT Will)" 15. MAINS SWITCH

9. BALM"?! CONTROL

SELECT lill SWlT Ell

11, )lEAlTFllDNE JACK TASS LEVEL EDITRUL

i4. iiTTENlIATDil
