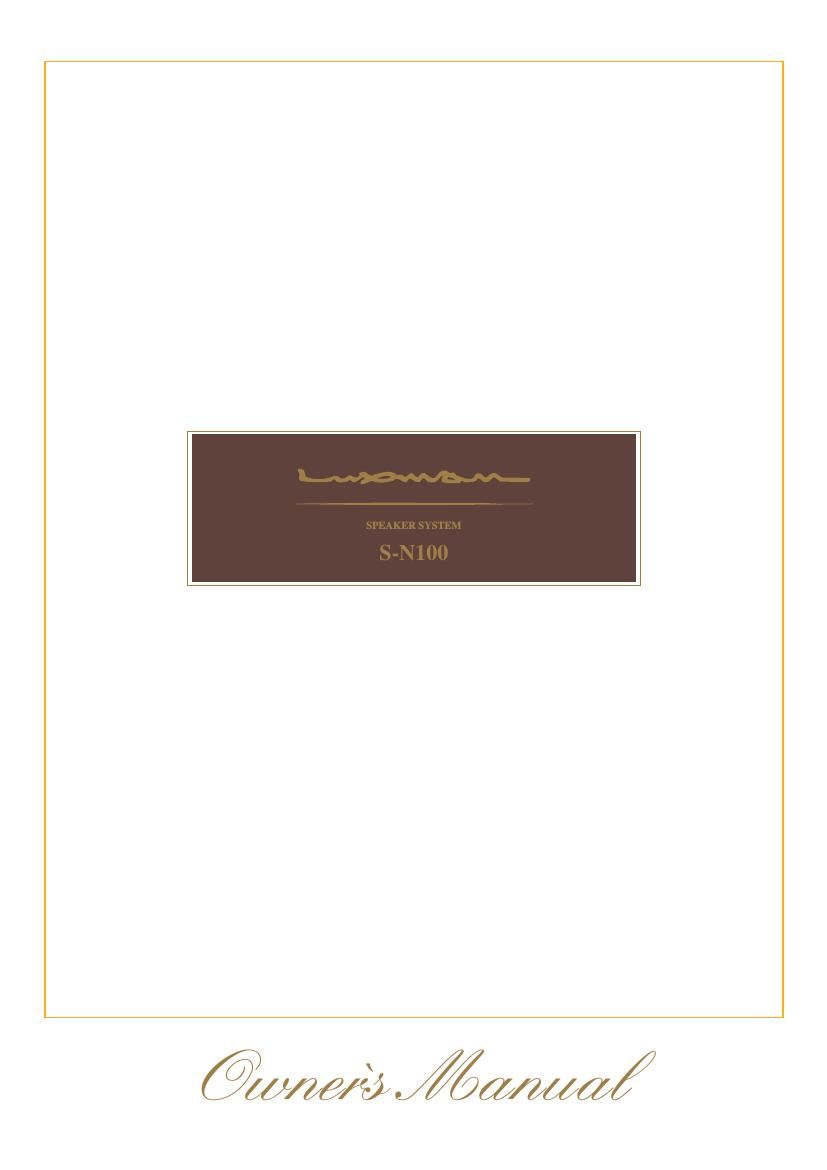

Luxman S N100 Owners Manual

Page 1

2 Thank you for buying our Luxman Speaker Systems S-N100. In 1925 when NHK began its regular radio broadcasting services, Luxman was founded by the name of Kinsuido Radio Department. For more than 80 years since then, the company has released so many products to audio and music fans. At any time in those years, the enthusiastic feeling of such audio and music lovers has been kept unchanged. Luxman considers that high-fidelity playback of emotions of musical artists as well as listeners deep impression on the reproduced music and strong attachment to play- back equipment is the highest achievement for the audio products. Luxman and its working staff are happy to have such a great opportunity that you have selected our Luxman products by virtue of a profound lot and that both of us can have the same emotions and values in regard to audio matters and music. Before you use our products, please read through this Owners Manual so that you can use this unit correctly and safely. Then, performance of this unit can be maxi- mized and you can enjoy the reproduced music at the highest grade. After you have read this manual, please keep it carefully together with the warranty sheet and the safety precautions. We hope that you will pleasantly use our equipment for a long time. Contents Precautions ...................................................................................................................3 Names and Functions of Parts......................................................................................4 Connections ..................................................................................................................5 Specifications ................................................................................................................6 After-sales services and quality assurance...................................................................6 Troubleshooting ............................................................................................................7

Page 2

3 Precautions Installation location Install the unit where it will be in a stable position. Do not install where the temperature is abnor- mally high such as in direct sun- light or where it is dusty or humid because this could damage this unit despite proper heat radiation. Do not install this unit where it will interfere with driving the car. Exterior finish The cabinet surface of this unit is made of natural wood materials. Therefore, color and patterns are natural and the sections are all different. Finish is controlled by rigorous quality standards. This unit can be used safely. Cautions for amplifier connections When making amplifier connec- tions, be sure not to cause short- circuiting between ! and @ of the speaker output terminals of the amplifier or the speaker input ter- minals of this unit. If signals are applied with the circuit left short- circuited, a large current may be carried in the output circuit of the amplifier and can cause a mal- function. Repair and adjustments When repair and adjustments are needed, please ask the store where you bought the unit or any nearby Luxman Service Center. Cleaning For cleaning, use a piece of soft cloth to wipe the unit such as cleaning cloth available on the market. If the unit has become very dirty, remove the dirt with soft cloth absorbing a small amount of neu- tral detergent, and then wipe the unit with dry cloth. Do not use a solvent like benzine or thinner because such a substance can often damage the exterior. When installing this unit on a slippery floor, use the anti-slip accessories for safety. The anti-slip accessories should be stuck to adequate places at the four corners on the bottom section of the right and left speakers. After installation, con- firm that this unit does not slip easily. When installing it in a high position in the room, use fixing metal fittings for safety, without fail, to avoid falling from vibrations due to earthquakes and other causes. Safety cautions Caution
