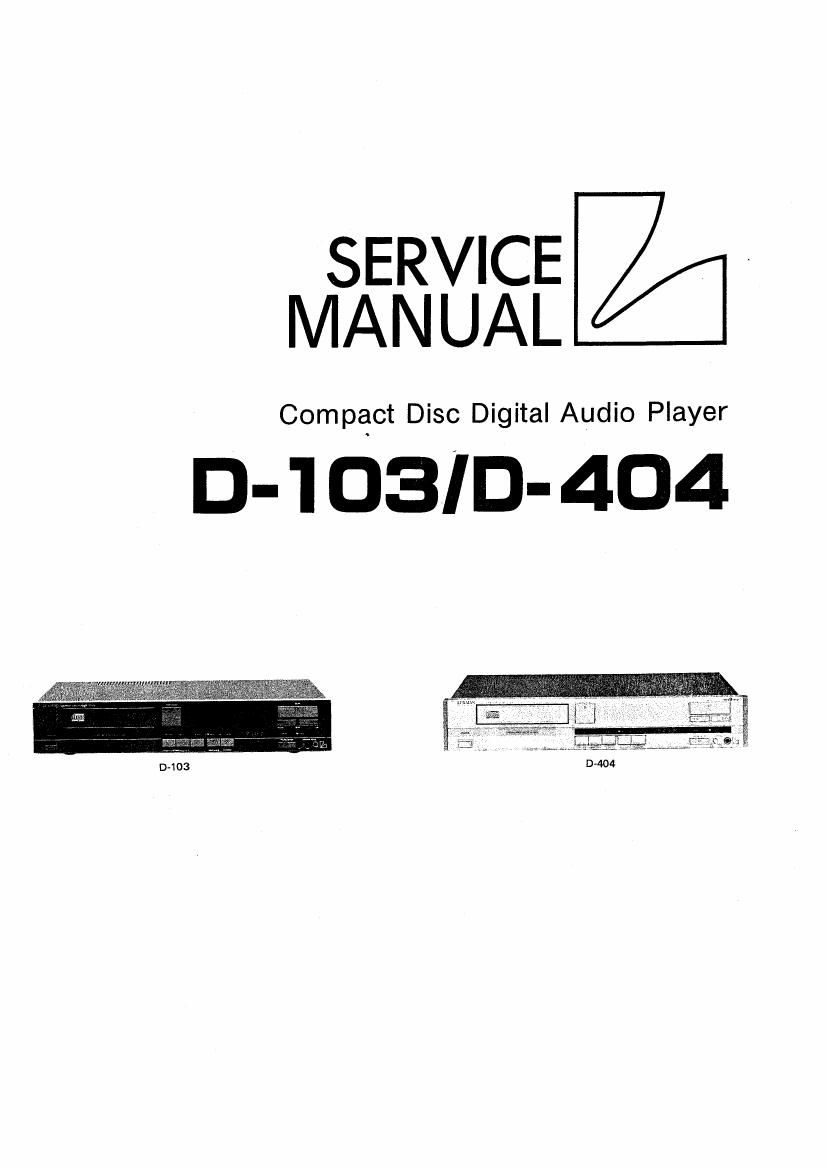

Page 1
SERVICE
MANUAL
Compact Disc Digital Audio Player
D- 1 03] D- 404
0-103 0-404
Page 2
03/ D- 404
Contents < a m >
Specifications ................................................................... 2
Parts Locations .................................................................. 3
Disassembly instructions ......................................................... 4 to 6
Block Diagram .................................................................. 7
Adjustment Locations ............................................................. 8
Adjustment Procedures ......................................................... 9 to 26
Wiring Diagram ............................................................. 27 to 28
Schematic Diagram .......................................................... 29 to 30
Parts List ................................................................. 31 to 35
Mechanism Exploded View ......................................................... 36
Mechanism Assembly Parts List ................................................ I ...... 37
Exploded View (Cabinet) .......................................................... 38
Cabinet Assembly Parts List ........................................................ 39
Packing Method View ............................................................. 40
Packing Assembly Parts List ........................................................ 41
Specifications ( tress )
Type .................................................... Compact Disc player with optical pickup
Quantization ................................................................. 16 bit linear
Channels ...................................................................... 2 (stereo)
Frequency response ...................................................... 5 Hz - 20 kHzilgdB
Dynamic range .................................................................... 80 dB
Total harmonic distortion ....................................................... 0,01% (1 kHz)
Channel separation ................................................................. 80 dB
Wow and flutter .............................................................. Unmeasurable
Output .................................................................... 2.0 i0.5 volts
Pickup ............................................................. Semiconductor laser type
Track location .................................................................. By track
Power supply .......................................................... AC 220V, 50 Hz (AK)
AC 120V, 60 HZ (UZ, UC)
AC 100V, 50/60 Hz iAJ)
Power consumption ............................................................ 13 watts (AJ)
14 watts (AK, UZ, UC)
Dimensions ................................................ 439(W) x 75(H) x 300(D) mm (D403)
453(W) x 75(H) x 300(D) mm (0-404)
Weight .......................................................................... 5.1 kg
Accessories ............................................................... Connection cables
Specifications are subject to change without notice.
