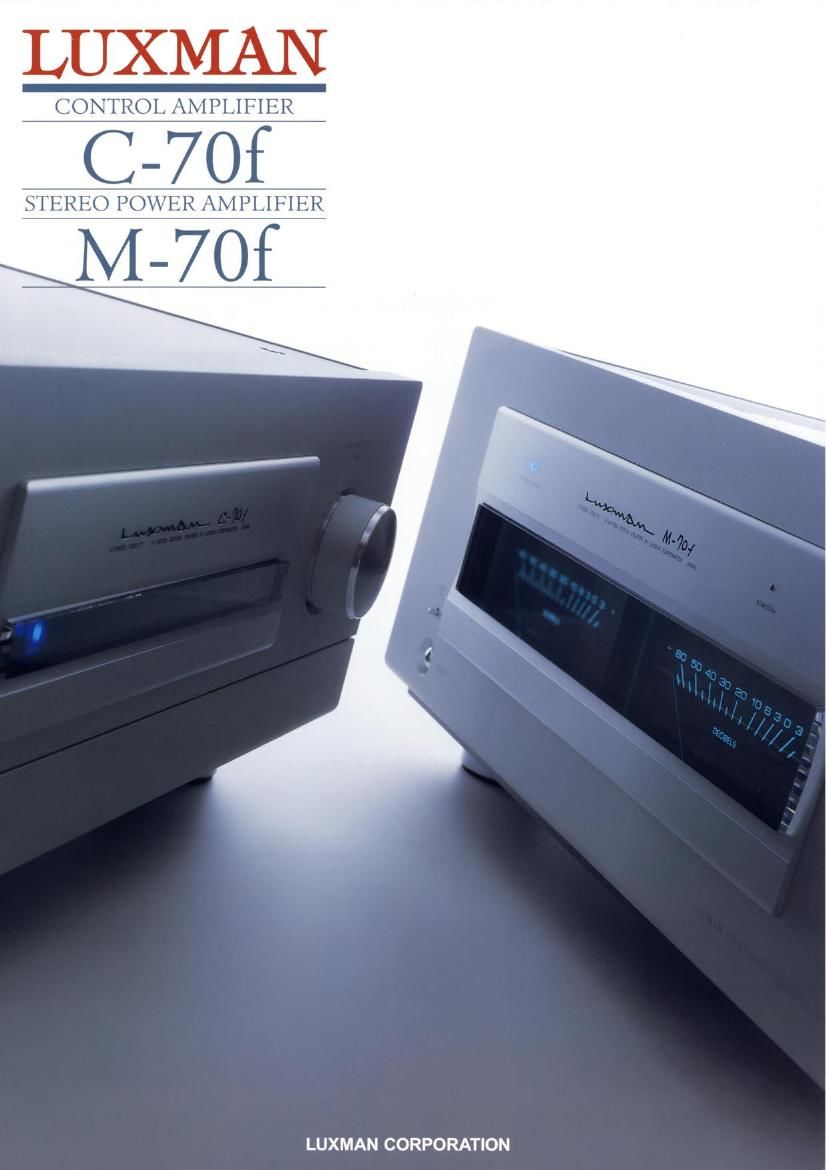

Page: 1 / 8
Extracted text from Luxman C 70 Brochure (Ocr-read)
Page 1
e exploration into the deep fields
The position grabbing the key of the sound quality of control amplifier is the sound volume adjusting mechanism, namely the
attenuator. In C-70f, the newly-developed high sound quality attenuator LECUA (LUXMAN Electric Controlled Ultimate
Attenuator) which has positioned the super-higher fixed resistance switching type attenuator built in the Luxmans flagship control
amplifier C-10 at a very high level was installed. LECUA is the attenuator which places the 48-position sound quality at the most
prioritized position by carrying out the attenuation by just the normal 2-base fixed resistors. By supplying the mechanism which
could activate the FET switch in non-contact mode with high-performance photo interrupter, the outstanding reliability without
noise could be obtained. The LECUA initially built in the C-70f is composed of the independent 4 circuits that are equipped with
hot side/cold side for transferring the stereo balance. It is a kind of large-scale electronic attenuator with totally 16 circuit boards
and about 2,000 pieces of components. But the biggest feature of the most important signal pass lies in that it is composed of very
simple circuits containing 2-base fixed resistors carefully manufactured for improving the sound quality. The 48 positions in total
are the set up positions maintained for actual sound volume, and could offer an firm operation by click ·touch with a light and joyful
heart. A convenient unit·gain [gain-1] position was prepared for the introduction of home theatre processor. With the development
of LECUA which could gain an overwhelming resolution and quietness even at the tiny level isolated from the left and right level
errors, Luxmans control amplifier has reached a new peak.
Page 2
The technical innovation aims at improving the reproduction of music
The negative feed back (NF) circuit is not only one of the absolutely necessary parts for improving the features of the amplification,
but also could exert impact on the sound quality as a whole. Here, the most important thing is nothing but the dynamic status of music
reproduction, and the special attentions should be paid to the acquisition of neutral sound color, the rising of sound and the overall
speed feeling, braking force, etc. The ODNF (Only Distortion Negative Feedback) circuit independently developed by Luxman is
quite different from the existing method which feeds the output signal (music signal) back to the amplification circuit with only
the differential signal which is the distorted element arising from the special circuit comparing and picking out the input waveform
and output waveform, and was fed back to the amplification circuit as a distorted element to cancel it. Thus the DC servo amplifier
controlling the phase perfection circuit and super-lower band could be omitted, and the sound in super-higher band could be realized
by keeping the natural sound color as it was with the high slewing rate. Through the operation of repeating the trial listening and of
improving the sophistication, the ODNF circuit has been evolving into Version 2. The natural sound quality and the drive feeling in the
direction of lower band of M-70f will supply you with the lifelike reality of the passion poured into the music by the players while fully
displaying the charm of integrated speaker system.
