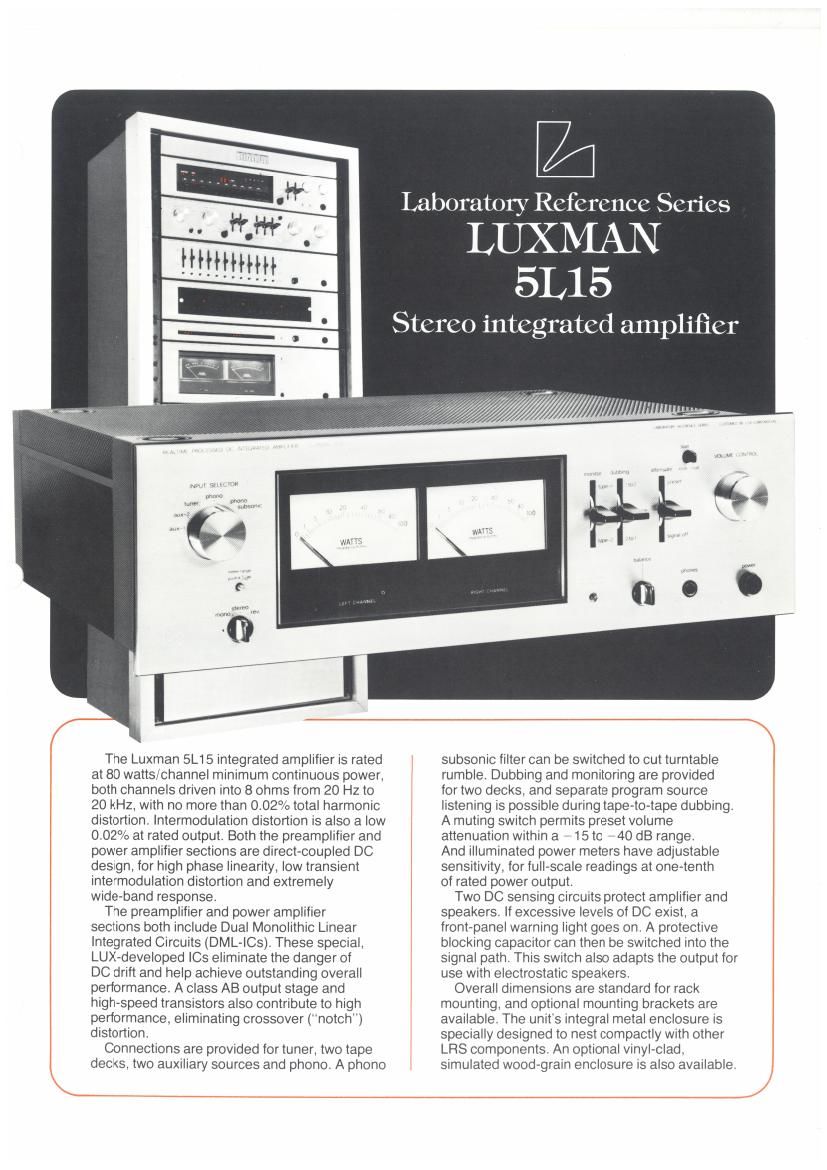

The Luxman 5L15 integrated amplifier is rated
at 80 watts/channel minimum continuous power,
both channels driven into 8 ohms from 20 Hz to
20 kHz, with no more than 0.02% total harmonic
distortion. lntermodulation distortion is also a low
0.02% at rated output. Both the preamplifier and
power amplifier sections are direct-coupled DC
design, for high phase linearity, low transient
intermodulation distortion and extremely
wide-band response.

The preamplifier and power amplifier
sections both include Dual Monolithic Linear
Integrated Circuits (DML-le). These special,
LUX~developed le eliminate the danger of
DC drift and help achieve outstanding overall
performance. A class AB output stage and
high-speed transistors also contribute to high
performance, eliminating crossover (notch")
distortion.

Connections are provided for tuner, two tape
decks, two auxiliary sources and phono. A phono

Laboratory Reference Series

LUXMAN
5L15

Stereo integrated amplifier

subsonic filter can be switched to cut turntable
rumble. Dubbing and monitoring are provided
for two decks, and separate program source
listening is possible during tape-to-tape dubbing.
A muting switch permits preset volume
attenuation within a 715 to 740 dB range.

And illuminated power meters have adjustable
sensitivity, for full-scale readings at one-tenth

of rated power output.

Two DC sensing circuits protect amplifier and
speakers. lf excessive levels of DC exist, a
front-panel warning light goes on. A protective
blocking capacitor can then be switched into the
signal path. This switch also adapts the output for
use with electrostatic speakers.

Overall dimensions are standard for rack
mounting, and optional mounting brackets are
available. The units integral metal enclosure is
specially designed to nest compactly with other
LRS components. An optional vinyl-clad,
simulated wood-grain enclosure is also available.

Page 2

/

\

flaw selector switch

Meter range switch

Stereo/mono/reverse

Switched convenience out rat

Unswitched convenience outle

\

k
(

Illuminated power meters

mode switch

Tape 1/2 monitor and digning switches

Muting swrtch

Volume control\

DC offset warning light

15-40, dB muting switch

Center-detent
balance control

Headphone jack
Power on/ofl switch
Electrostatic/normal

Overcurrent protection fuses
Speaker connectors

' Both preamp and power amp
sections are direct»coupled DC
design, for high phase linearity and
low transient intermodulation
distortion.

' New, LUX-developed Dual
Monolithic Linear Integrated Circuits
(DML-le) eliminate the danger of
DC drift.

' Class AB output stage combines
the advantages of both class A and
class B, eliminating notch distortion
while maintaining high efficiency.

' Tape monitor and dubbing
switches are provided for two
decks. Listening to a separate
program source is possible during
tape-to-tape dubbing.

' Phono subsonic filter, with a
cutoff at 17 Hz, eliminates turntable
rumble.

Preamplifier section

S/N ratio:

Phono: greater than 80 dB below
2.5 mV (IHF A" weighted)

Tuner, Aux. 12: greater than 100 dB
(IHF A" weighted)

Frequency response:

Phono: FIIAA, :02 dB

Tuner, Aux. 1/2: DC to 100 kHz. *10 (18
Input sensitivity:

Phone: 3 mV

Tuner, Aux. 1/2: 300 mV

Output voltage:

Preamp out, rec out: 300 mV, rated

Outputs for LED peak indicator

Power amp Preamp
Inputs outputs

' Muting switch provides instant
volume attenuation, with preset
range from 715 to ~ 40 dB.
Signal-off position provides
complete muting.

' Illuminated power meters
provide indication of average power
output, and a meter range switch
permits monitoring both high- and
low-output levels, With the switch
depressed, meters read full-scale at
one-tenth of rated power,

' Speaker and amplifier
protection circuitry includes a DC
input sensor and DC drift sensor,
with a warning light to indicate
excessive DC levels. When the
warning light goes on, a protective
blocking capacitor can be switched
into the signal path. Turn-on time
delay muting also safeguards

PERFORMANCE SPECIFICATIONS

Power amplifier section

Power output: 80 W minimum
continuous per channel into 8 ohm loads,
both channels driven, 20 Hz to 20 kHz,
with no more than 0.02% total harmonic
distortion.

l.M.D.: 0.02% at 80 W per channel.

8 ohms (60 Hz: 7 kH2i4:1)

Damping factor: greater than 80 (1 kHz,
8 ohm load)

SIN ratio: greater than 100 dB (IHF A
weighted)

Frequency response: DC to 100 kHz,

t 10 dB

speaker switch
Tape 1 DIN connector

Ground terminal

Tuner inputs
Phono Inputs

Tape 1 monitor and record out
Tape 2 monitor and record out

Aux. 1 and 2 inputs

speakers, and an overcurrent
protection circuit safeguards
amplifier electronics.

' Rear-panel capacitor switch
adapts output for optimum use with
electrostatic and other
low-impedance speakers,

' Separate preamp outputs and
power amp inputs permit versatile
system connections.

5L15 shown in optional viny|~clad,
simulated wood-grain cabinet,

General
Power consumption: 380 W (8 ohms.
maximum rated output)
Dimensions:
(mm):442Wx4OODx 146 H
(inches) 17.7 W x 16 D x 5.8 H
Weight: 13.3 kg (29.3 lbs.)
