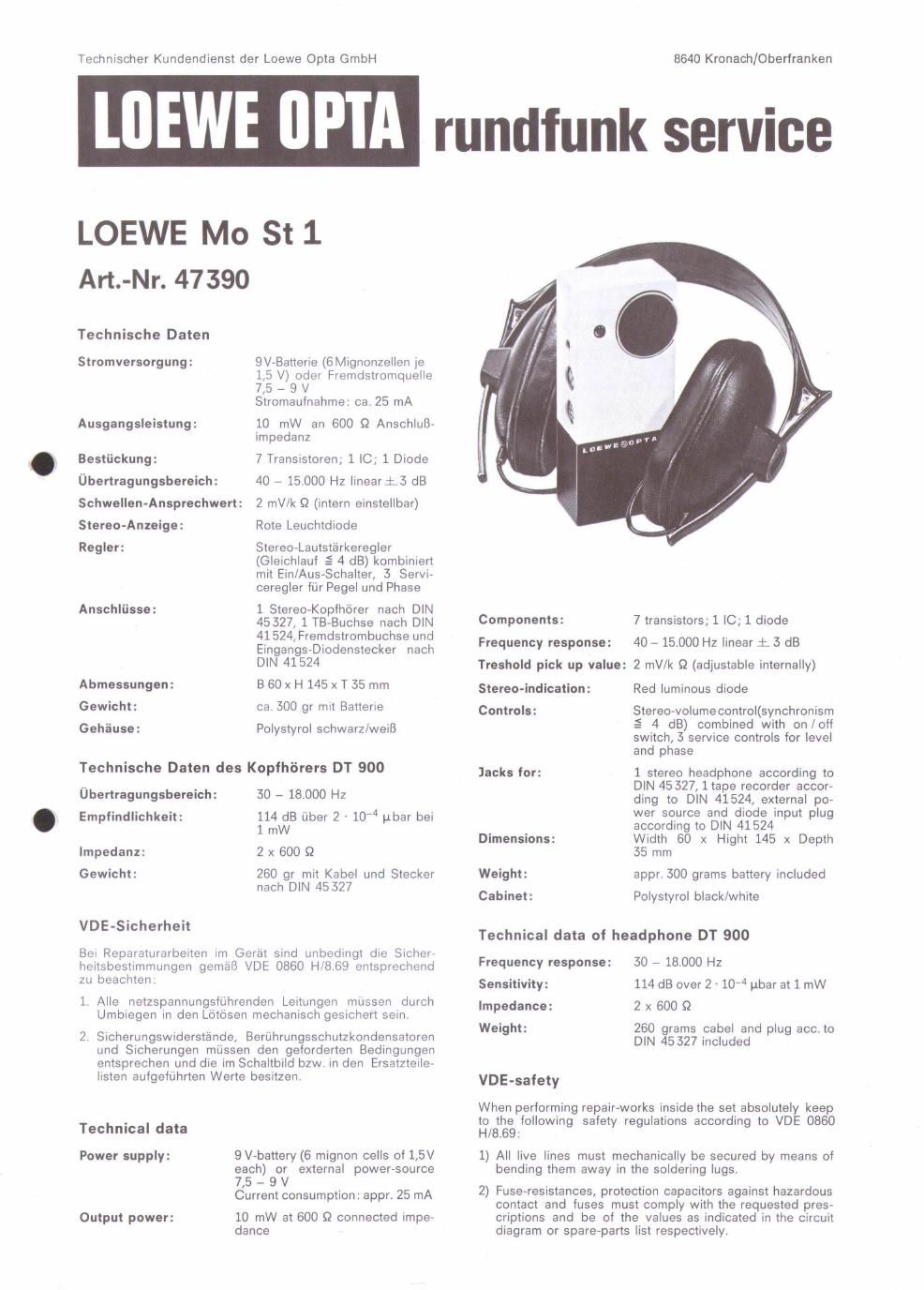

Technischer Kundendienst der Loewe Opta GmbH

8640 Kronach/Oberlranken

EWE "PTA rundfunk service

LOEWE Mo St 1
Art.-Nr. 47390

Technische Daten

Stromversorgung: 9VrBatterie (6Mignonzelien je

1,5 V) oder Fremdsiromqueile
7,5 7 9 V
Stromaufnahme: ca. 25 mA

10 mW an 600 Q AnschluB-
impedanz

7 Transistoren; 1 IC; 1 Diode
40 - 15.000 Hz Iineari3 dB
Schwellen~Ansprechwert: 2 mV/k Q (intern einstellbar)
Rote Leuchtdiode

Ausgangsleistung:

Bestiickung:

Ubertragungsbereich:

Stereo-Anzeige:

Regler: Stereo-Lautstarkeregler
(Gleichlaul § 4 dB) kombiniert
mit Ein/Aus-Schalter, 3 Servi-

ceregler tiir Pegel und Phase

1 Stereo-Kopfho'rer nach DIN
45 327, 1 TB-Buchse nach DIN
41524,Fremdstrombuchse und
Eingangs-Diodenstecker nach
DIN 41524

BGOXH145xT55mm
ca. 300 gr mit Batterre

Anschliisse:

Abmessungen:
Gewicht:

Geha'use: Polystyrol schwarz/weiB

Technische Daten des Kopfhfirers DT 900

Ubertragungsbereich: 30 - 18.000 Hz

Empfindlichkeit: 114 dB fiber 2 - 104 pbar bet
1 mW

Impedanz: 2 x 600 Q

Gewicht: 260 gr mit Kabel und Stecker

nach DIN 45 327

VDE-Sicherheit

Bei Reparaturarbenen irn Gerat smd unbedingt die SICIIOV'
hcltsbestimmungen gem'aB VDE 0860 W8 69 entsprechend
zu beachten:

1. Alle netzspannungstuhrenden Lertungen mussen durch
Umbiegen in den Lotosen mechanisch gesichert sein.

2. Sicherungswiderstande, Bertihrungsschutzkondensatoren
und Sicherungen mfissen den geforderten Bedingungen
entsprechen und die im SchaItbild bzw. in den Ersatzteiier
Iisten aufgefijhrten Werte besitzen,

Technical data

Power supply: 9 Vebattery (6 rnignon cells 01 1,5V
each) or external power-source
7,5 - 9 V

Current consumption: appr. 25 mA

10 mW at 600 S? connected impe-
dance

Output power:

Components:

7 transistors; 1 IC; 1 diode
40 - 15.000 Hz linear i 3 dB
Treshold pick up value: 2 mV/k 9 (adjustable internally)

Frequency response:

Stereo-indication: Red luminous diode

Controls: Stereo-volumecontrol(synchronisrn
§ 4 dB) combined with on/off
switch, 3 service controls for level

and phase

Jacks for: 1 stereo headphone according to
DIN 45 327, 1tape recorder accorr
ding to DIN 41524, external po-
wer source and diode input plug
according to DIN 41524

Width 60 x Hight 145 x Depth
35 mm

appr, 300 grams battery included

Dimensions:

Weight:

Cabinet: Polystyrol black/white

Technical data of headphone DT 900

Frequency response: 30 - 18000 Hz

Sensitivity: 114 dB over 2: 104 pbar at 1 mW

Impedance: 2 x 600 9

Weight: 260 grams cabel and plug acc.to
DIN 45 327 included

VDE-safety

When performing repair-works inside the set absolutely keep
to 8tlée9 following safety regulations according to VDE 0860
H/ . :

1) All live lines must mechanicaliy be secured by means of
bending them away in the soldering lugs.

2) Fuse-resistances, protection capacitors against hazardous
contact and {uses must comply with the requested pres-
criptions and be of the vaiues as indicated in the circuit
diagram or spare-parts list respectively.
