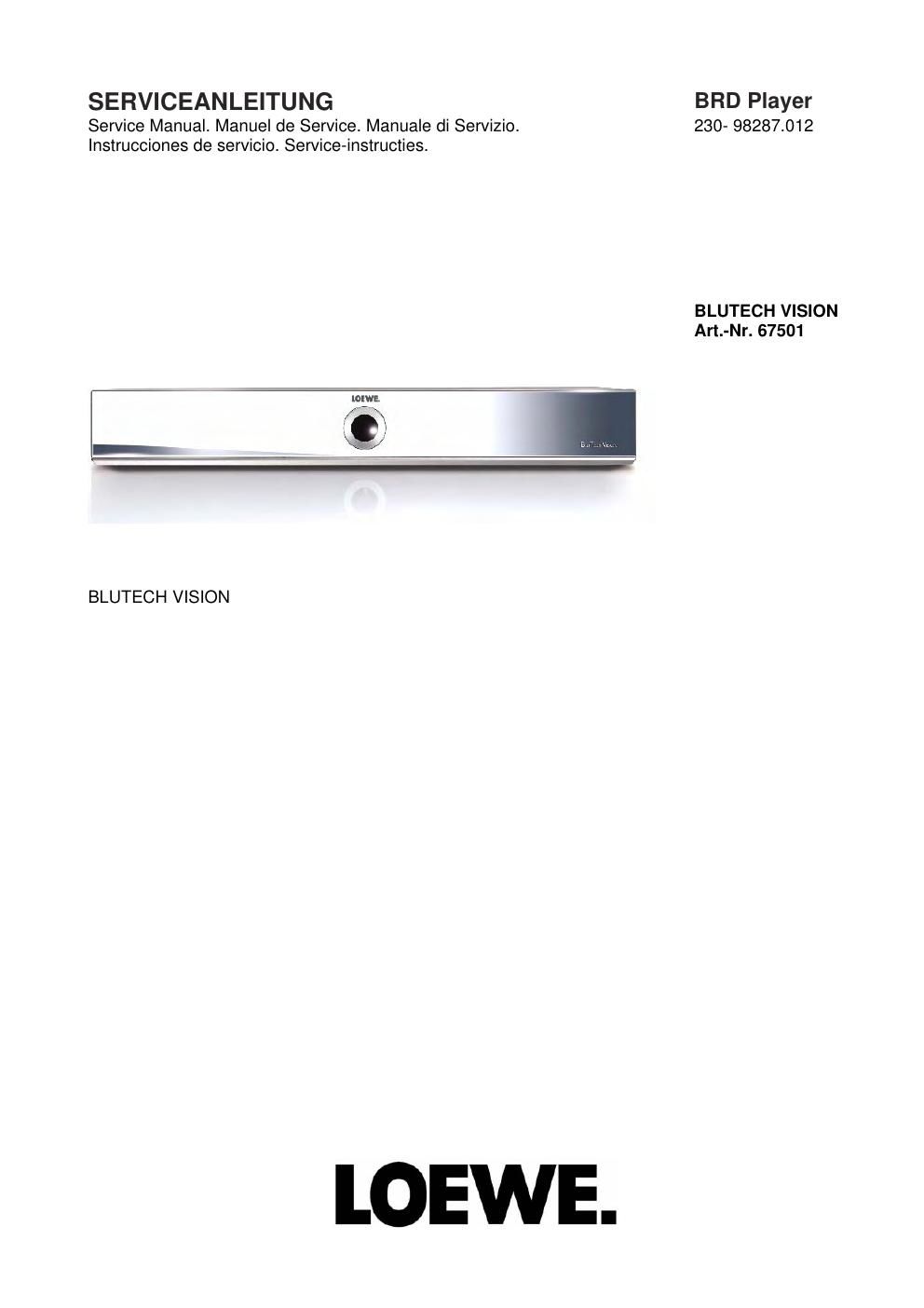

Loewe brd 67501 d service manual

Page 1

Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the safety and performance of the set. CHAPTER 1. REMOVING OF MAJOR PARTS [1] REMOVING OF MAJOR PARTS .................. 1-1 [2] EXTENSION CABLE CONNECTION DIA- GRAM............................................................ 1-4 [3] IMPORTANT SERVICE NOTICE .................. 1-6 [4] UPGRADING................................................. 1-6 CHAPTER 2. TROUBLE SHOOTING TABLE [1] MAIN ............................................................. 2-1 [2] ANALOG ....................................................... 2-5 [3] POWER ......................................................... 2-7 [4] OPERATION ................................................. 2-9 CHAPTER 3. BLOCK DIAGRAMS [1] MAIN BLOCK DIAGRAM .............................. 3-1 CHAPTER 4. SCHEMATIC DIAGRAMS [1] MAIN unit....................................................... 4-1 [2] ANALOG unit............................................... 4-20 [3] POWER unit ................................................ 4-26 [4] OPERATION-L unit ..................................... 4-28 [5] OPERATION-R unit ..................................... 4-29 [6] LCD unit ...................................................... 4-30CHAPTER 5. PRINTED WIRING BOARD ASSEM- BLIES [1] MAIN PWB......................................................5-1 [2] ANALOG PWB................................................5-5 [3] POWER PWB .................................................5-7 [4] OPERATION PWB ..........................................5-8 [5] LCD PWB .......................................................5-9 CHAPTER 6. CABINET PARTS [1] CABINET PARTS............................................6-1 CHAPTER 7. PACKING PARTS [1] PACKING PARTS ...........................................7-1 CONTENTS In the interests of user-safety (Required by safety regulation in some countries) the set should be restored to its original conditions and only parts identical to those specified should be used. 67501 T/D 00 67501 T 00 67501 D 00 MODELS BLU-RAY DISC PLAYER SERVICE MANUAL This document has been published to be used for after sales service only. The contents are subject to change without notice.

Page 2

67501 T/D 00 1 -“ 1 %7%
1MBZFS675014FSWJDF
.BOVBM  GPS
-0&8& .BSLFU &
CHAPTER 1. REMOVING OF MAJOR PARTS [1] REMOVING OF MAJOR PARTS 1. Removing the tray cover 1. Eject the tray by inserting a pin into the compulsory eject hole, then remove the tray cover. 2. Removing the cabinet and the panel 1. Remove two screws and three screws from the top cabinet. 2. Unhook claws of the front panel and remover the front panel. Insert a pin Tray cover 1 12 Top cabinet Front panel
