Maximum Volume
In the volume controls section of the menu, the option of
selecting a maximum volume setting has been added to
prevent the RV-8 from being increased beyond that value.
Radio Data System
RDS allows the user to view the text that is sent by a
station transmitting information encoded in this format.
Many stations use it to transmit station call letters and
information about the current track (artist name, song
title and so forth).
Power Management
The user has the option of setting the level of power
sensitivity for the RV-8. When enabled (default) the unit will
turn off when it detects possibly damaging power swings.
When disabled, the unit will not turn off during detected
power swings and will continue regular operation. This
option may be used when connecting the RV-8 to
third-party power management devices.
Digital Format Detect
This feature provides the ability to select a faster mute time
when the RV-8 detects inconsistent digital signals. In the
Normal mode the RV-8 will not mute when a pause in
the digital stream is detected. When set to Fast the RV-8
will mute the digital input for 2ms under similar conditions.
This may prevent popping noises and other sounds when
switching between digital sources or when the digital
stream is briefly interrupted during events such as changing
the channel on a cable box.
To download the RV-8 v2 upgrade, or to find your local
dealer visit www.lexicon.com. To order the microphone kit,
contact your local Lexicon dealer. The v2 upgrade requires
software as well as the use of the optional 2-mic kit for the
automatic calibration and Lexicon LIVE features.

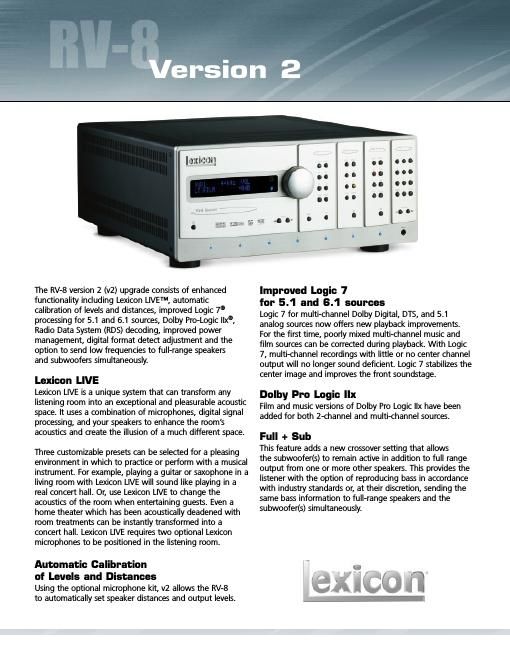

Version 2
Optional Microphone Pictured
