Leslie 44w 46w owners manual

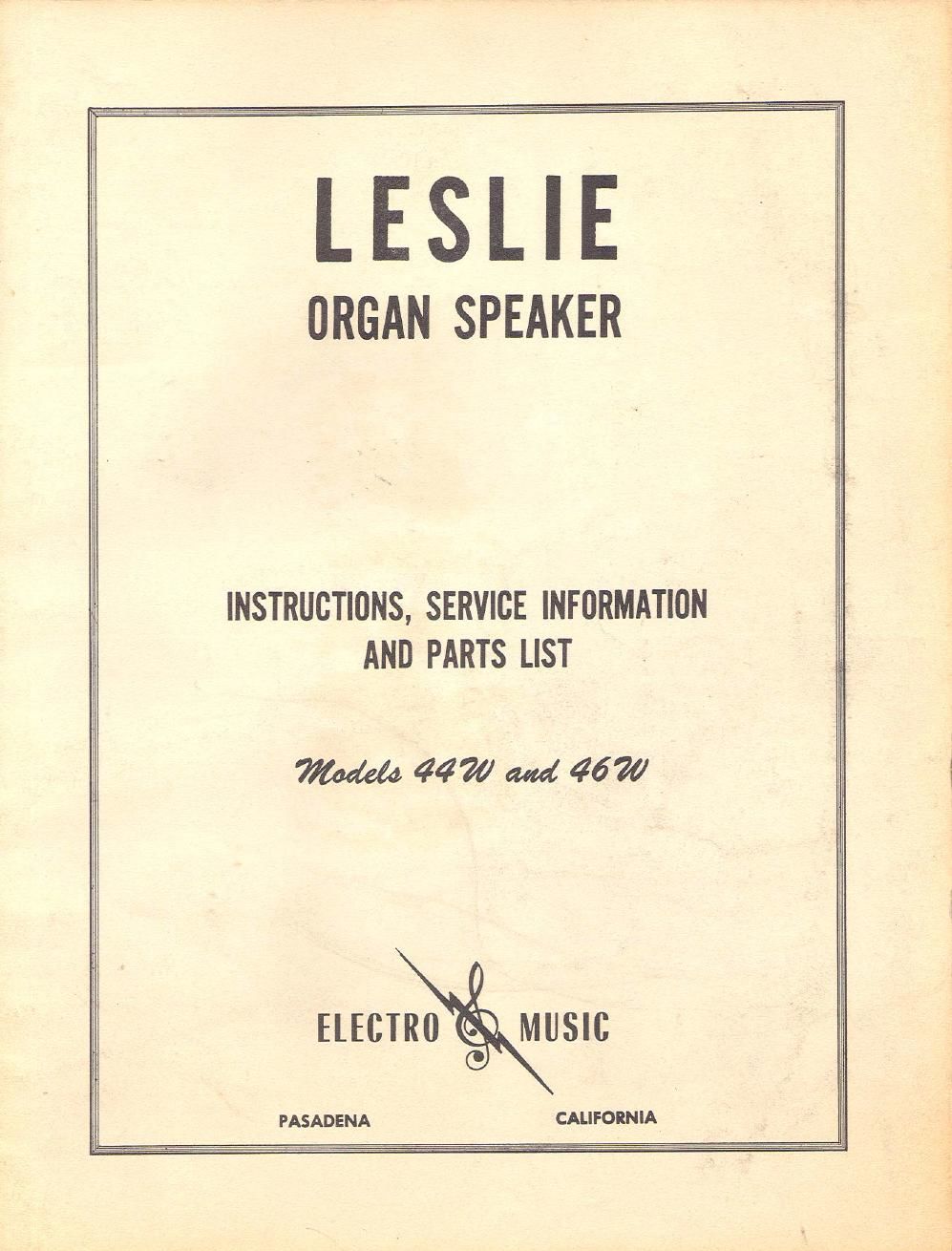

Page 1

INSTRUCTIONS, SERVICE INFORMATION

AND PARTS LIST

W 4470 m 46%

ELECTRO MUSIC

Page 2

SHIPPING INFORMATION

When the Leslie Organ Speaker is first unpacked from lt>
original shipping box, take off the upper and lower compartment
covers and remove the wooden shipping blocks from the upper
and lower motors and the amplifier so that these units will float
on their rubber mountings. Save the wooden blocks as they can
be put back in place if the cabinet is shipped at some future time.
Check to be sure the upper belt is in place on the rotor, idler and
motor pulleys. Select the desired tremolo speed on the upper
motor pulley. The center groove is the one most often used al-
though slower or faster speeds are available by using the other
grooves. The cabinet is then ready for use and the covers may
be replaced.

For further handling, the cabinet may be moved or carried
about without any preparations whatsoever unless it is to be
shipped by truck or rail. When this is done, the original shipping
blocks should be placed in the motor and amplifier mountings to
prevent damage. The cabinet may be carried by hand in any
position, but it should always be shipped in an upright position.
Transporting the Leslie in a horizontal position carefully over
short distances should do no harm, but it should not be subjected
to severe jarring as in a trailer or truck while in that position.
