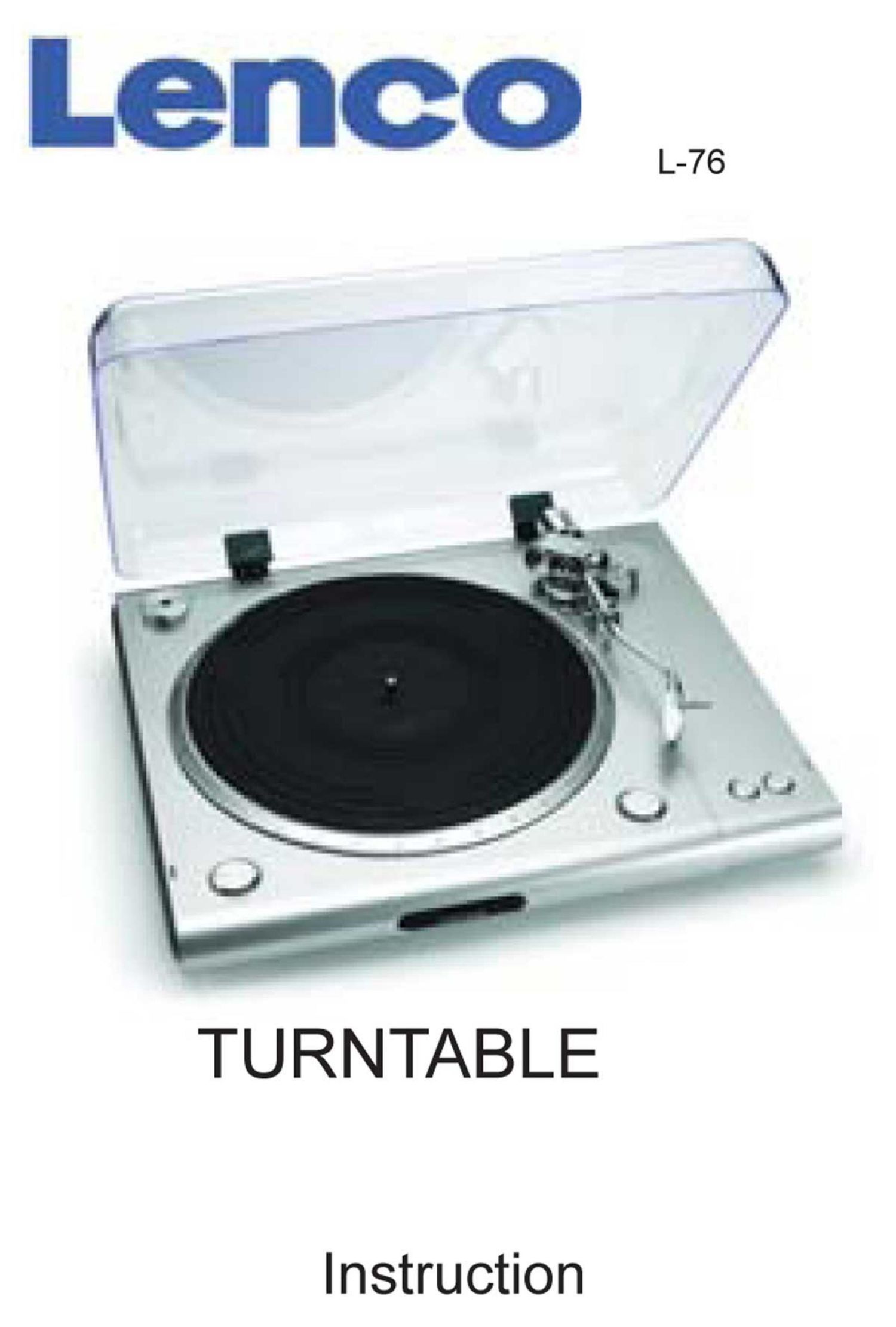

TURNTABLE

Instruction

Page 2

Unpacking
- Remove the record player and rubber mat from the packaging and remove all packing material.

Setting up and preparing the device

- Place the device on an even and stable surface.

. Turn the white transport braces on the turntable until you can remove them.
Store them carefully.

- Place the rubber mat on the turntable so that the spindle on the turntable pokes
through the opening in the mat.

. Remove the protective cap from the pick-up system by pulling it downwards.

Connecting the device

Audio connection

The record player has an inbuilt preamplifier and can therefore be connected directly to the Line In I Aux input

on a hi-fi system.

0 Connect the audio cable to the Line In lAux input on your hi-fr system (red plug = right channel; white plug = left channel).

Mains connection
- Connect the device by means of the mains plug to an easily accessible wall socket.

Repositioning the driving belt
Severe jolts (during transport. for example) may cause the record players driving belt to slip off. To put it back into position.
do as follows:
1. Remove the mains plug from the wall socket.
2. Take the rubber mat off the turntable.
3. Turn the turntable to the position illustrated.
4. Pull the driving belt out slightly and place it on the drive wheel as shown
in the illustration.

Playing records

To achieve the best quality when playing or converting your records to digital files you should observe
the following information:

- Check the stylus regularly. You can brush off fluff and small bits of dirt with a soft brush. brushing from the back to
the front. For more stubborn dirt. add a little cleaning spirit to the brush.

For information on how to change the stylus refer to "Changing the stylus".

0 Secure the tone arm and turntable when transporting the device.

- The adapter must always be used when playing singles.

. Check the connection to your hi-fi system before playing a record.

- Clean your records with an antistatic cloth before playing them.

Lift the cover until it clicks into place.

. Place the record on the turntable.

Set the required rpm by pressing the 33 or 45 button.

Remove the protective cap from the pick-up system, if necessary, by pulling it downwards.

Push the tone arm locking lever to the right.

Press the LOWER RAISE button to raise the tone arm.

Guide the tone arm across the record to the track you wish to play. The turntable starts to turn
Press the LOWER RAISE button to lower the tone arm Playback begins After the last track on the record, the tone arm
returns automatically to the tone arm rest. The turntable stops.

9. Push the tone arm locking lever to the left

10. Close the cover.
