Goldring Excelda 1 Owners Manual

Extracted text from Goldring Excelda 1 Owners Manual (Ocr-read)

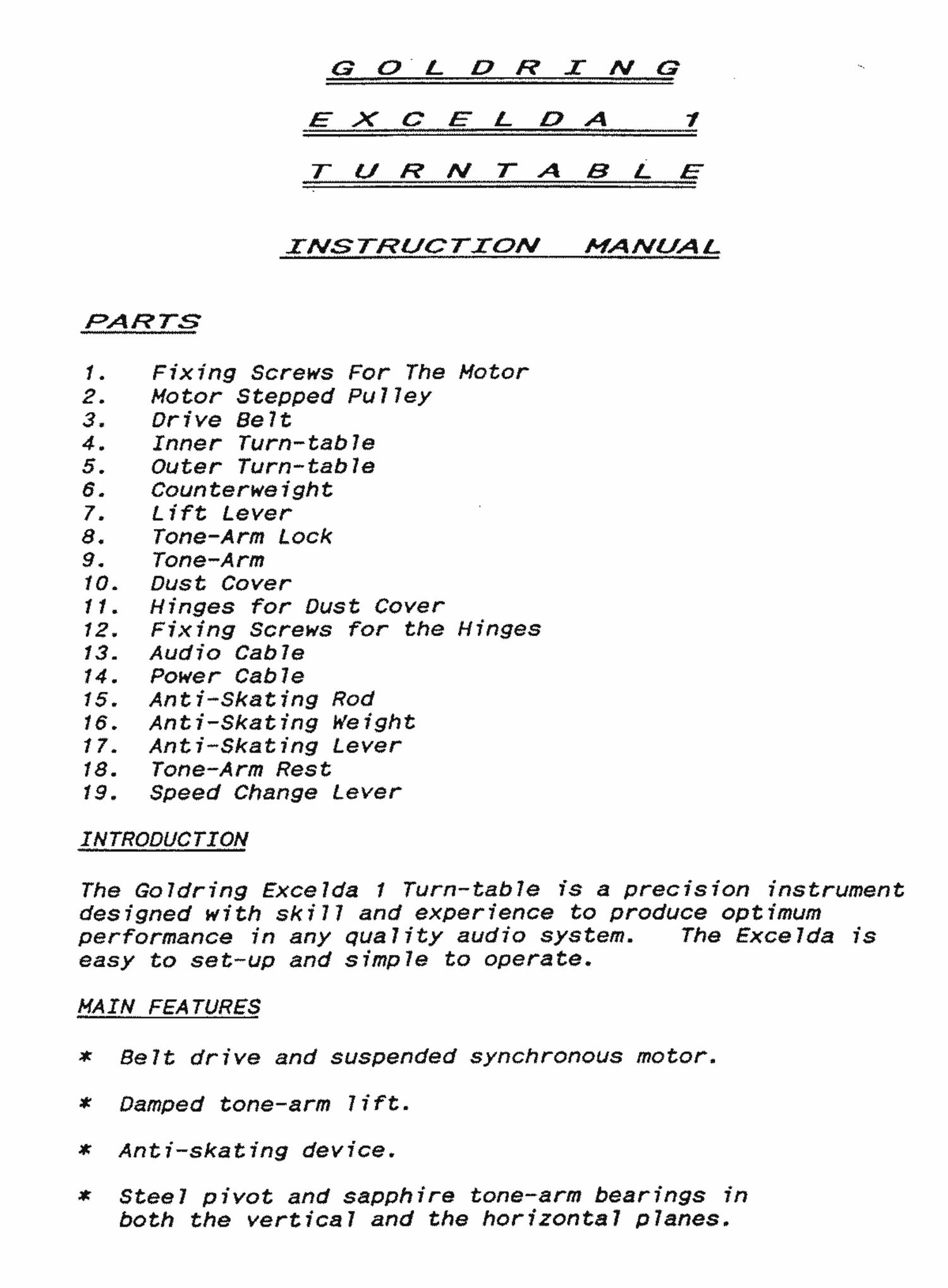

Page 1

C? (7"L. £7 I? .1' AI (3

E? )( (3 45 L. L) I 1

7' LI I? IV' 7 x! 19' L. a?

INSTRUCTION' MawuaL

F%4F?TE§

1. Fixing Screws For The Meter
2. Meter Stepped Pulley

3. Drive Belt

4. Inner Turn-table

5. Outer Tornfitable

6. Counterweight

7. Lift Lever

8. TenewArm Lock

9. TOne-Arm

10. Dust Cover

11. Hinges fer Dust Cover

12. Fixing Screws fer the Hinges
13. Audio Cable

14. Power Cable

15. Antinketing Rod

16. Anti-Skating weight

17. Anti~8keting Lever

18. Tone-Arm Rest

19. Speed Change Lever

IQTRODUCTLQE

The Goldring EXcelda 1 Turn-table is a precision instrument
designed with skill and experience to produce optimum
performance in any quality audio system. The EXoelda is

easy to setwup and simple to operate.
MfiIN FEATURES

* Belt drive and suspended synchronous motor.

* Damped tone-arm lift.
x Anti-skating device.

x Steel pivot and sapphire tone-arm bearings in
both the vertical and the horizontal planes.

Page 2

ASSEMBLY

To protect delicate components your Goldring EXCelda 1
Turn~table has been packed in a solid carton and is partly
disassembled. Fer simple assembly read the following
instructions carefully before commencing setting-up your
Turn~table for use.

1. Remove the Turnwtable from the carton and remove
both motor fixing screws (1)

2. Check that the drive belt (3) has been installed.
If it hasnt, loop it around the smaller diameter
of the motor stepped pulley (2) and around the rim
of the inner Turnwtable (4). This will give
33 i/3 rpm speed replay.

3. Position the outer Turn~table (5) centrally on the
shaft of the inner Turn-table (4).

4. Remove the transport fixing inserts from the
tone~arm bearings.

5. If the Turnetable is supplied without a pickfiup
cartridge, the latter has to be mounted into
the tone-arm shell, making use of two screws of
the cartridge mounting hardware. All cartridges
with standard 1/2 mount, with a weight between
5 to 7 gr. and for tracking forces of 10 to 30 mN
can be mounted in the tone~arm shell.
For connecting the leads to the cartridge pins,
follow the international code:

white - left channel, signal lead (L)

blue ~ left channel, shield

red » right channel, signal lead (R)

green - right channel, shield
Tracking force adjustment: following the

recommendation of the manufacturer:

6. Remove the tonewarm lock (8) from the tonewarm
rest (18), position the arm between the arm rest
and the rim of the Turnwtable platter and tilt
forward the lift lever (7). Carefully wind the
counterweight (6) onto the back end of the tone~arm
tube until the stylus tip hovers at record playing
level. The tone-arm is now balanced.
