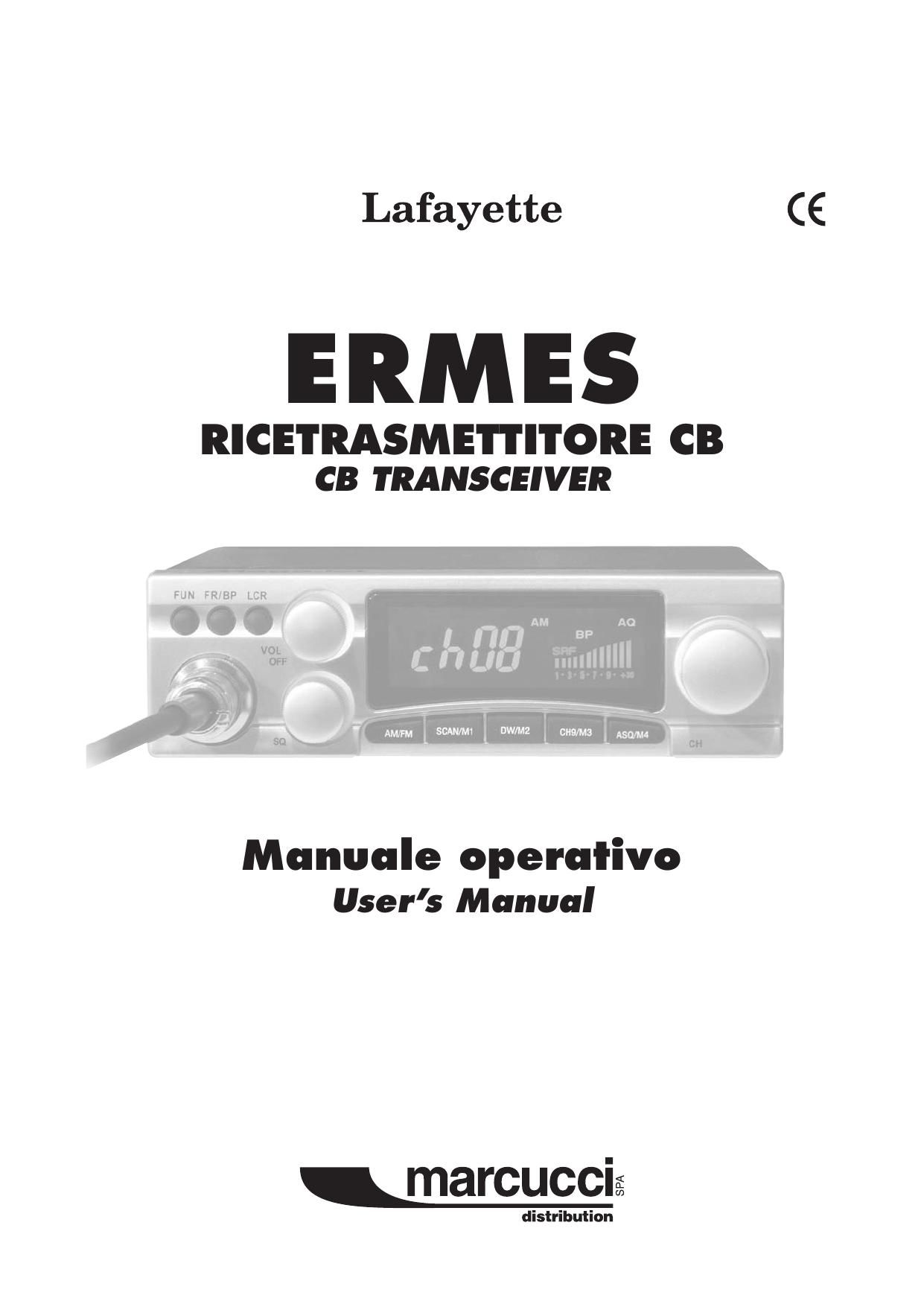

Extracted text from Lafayette Ermes Owners Manual (Ocr-read)
Page 1
Dichiarazione
di Conformità
Declaration
of Conformity
Si fa presente che limpiego dellapparato è soggetto ad autorizzazione per gli scopi di cui al punto 8
dellart. 334 del codice PT.
0648
Questo simbolo, aggiunto al numero di serie, indica che lapparato risponde pienamente ai requisiti della Direttiva Europea delle Radio e Teleco-
municazioni 1999/05/EC, per quanto concerne i terminali radio.
This symbol, on the serial number seal, means that the equipment complies with the essential requirements on the European Radio and Telecom-
munication Terminal Directive 1999/05/EC.
Questo simbolo avverte loperatore che lapparato opera in una banda di frequenze che, in base al paese di destinazione e di utilizzo, può essere soggetta
a restrizioni oppure al rilascio di una licenza desercizio. Assicurarsi che pertanto la versione di apparato acquistata operi in una banda di frequenze
autorizzata e regolamentata dalle vigenti normative locali.
This warning symbol indicates that this equipment operates in non-harmonized frequency bands and/or may be subject to licensing conditions
in the country of use. Be sure to check that you have the correct version of this radio or the correct programming of this radio, to comply with
national licensing requirements.
Con la presente, la Marcucci SpA
dichiara che questo ricetrasmettitore
CB di marca Lafayette mod. Ermes,
è conforme ai requisiti essenziali ed
alle altre disposizioni pertinenti stabi-
lite dalla Direttiva 1999/5/CE.
Hereby Marcucci SpA, declares that this
CB transceiver brand Lafayette, mod. Er-
mes is in compliance with the essential
requirements and other relevant provi-
sions of Directive 1999/5/CE.
Page 2
ITALIANO
Grazie per avere preferito un prodotto Lafayette.
Per potere utilizzare al meglio il nostro prodotto vi consigliamo di leggere con attenzione il
presente manuale duso.
Attenzione
Non tentare di trasmettere senza lantenna collegata in quanto il ricetrasmettitore potrebbe
danneggiarsi seriamente.
Il presente apparato è stato tarato e testato in fabbrica. Non aprirlo o manomettere le parti
interne per nessun motivo. Eventuali interventi tecnici devono essere effettuati solo da perso-
nale autorizzato.
Collegamento dellantenna
Il cavetto di discesa dellantenna deve essere terminato con un connettore PL-259. Utilizzare
solo antenne accordate sulla gamma dei 27MHz ed effettuare la discesa utilizzando del ca-
vetto schermato tipo RG-58/U con impedenza tipica 50 Ohm.
Aggancio del microfono
Installare il supporto del microfono in una posizione agevole della vostra autovettura, facendo
bene attenzione che il cavetto o il microfono stesso non vadano ad interferire con le normali
operazioni guida.
Disturbi causati dal circuito di distribuzione dellauto
Normalmente le automobili moderne non presentano più problemi di schermatura dei cavetti
di distribuzione e del circuito di accensione, quindi il ricetrasmettitore non dovrebbe risultare
affetto da disturbi durante il funzionamento del motore. -
-
Funzioni
Noise blanker integrato e circuito di limi-
tazione automatica del rumore
Microfono dinamico con pulsante per il
controllo ASC
Ampio display LCD multifunzione e di fa-
cile lettura
Pulsanti che consentono leventuale sele-
zione della doppia funzione abbinata
Display frequenza o numero canale
Segnale acustico (funzione beep) escludibile
Richiamo immediato ultimo canale utilizzato
Controllo squelch manuale e automatico
Funzione di scan e 4 canali di memoria
Funzione di dual watch
Canale 9 di emergenza 1
2
3
4
5
6
7
8
9
10
11Selettori
Selettore volume e on/off
Selettore squelch
Selettore canale su/giù
Display LCD
Canale / frequenza
TX/ BP/ DW/ SC
Memoria canale 1 - 4
AM/FM/AQ
Level meter a 12 tacche
Jack per speaker esterno da 3.5 mm
Connettore antenna SO-239
Microfono dinamico & jack a 8 pin 1
2
3
1
2
3
4
5 Le caratteristiche standard comprendono:
Page 11
To activate this feature, press the Scan button, SCAN is displayed on the LCD.
To stop scanning, press the Scan button again or the PTT bar in the microphone.
This button is also used as channel memory input or recall when pressed after the FUN but-
ton.
How to use Memory Channel function
When you want store a channel into a memory:
Select the channel that you want to store using the channel selector.
Press the Fun button.
Press continuously the M1~M4 button you want to use as memory.
When the channel is stored you hear a beep sound and the FUN button is released.
When you want to call the channel stored into the memory
Press the Fun button.
Press the M1~M4 button corresponding to the channel you want to call.
The channel will be called and the memory number s shown on the LCD.
10 - DW/M2 (Dual Watch / Memory1) button
Dual Watch allows you to work as if you had two receivers in your CB radio. It gives you the
ability to monitor two different channels at a time
When you press the DW button, DW will appears on the LCD and you can select the two
channels you want to monitor using the Channel selector.
The two channels will then be monitored every 0.5 seconds and displayed on the LCD alternately.
If there is any signal in any of the two channels, the Dual Watch function stops and waits for
5 seconds. If you do not respond, the DW function resumes after 5 seconds, if you press the
PTT button then your CB radio moves to the last received channel.
Dual Watch function resumes 5 seconds after the transmission is closed.
To stop the DW function, press the DW button again.
11 - CH9/M3 (Emergency / Memory 3)
In case of an Emergency such as crime, fire, crash, etc, press this button for emergency calls,
CH 9 will blink on the LCD.
12 - ASQ/M4(Auto Squelch / Memory 4)
ASQ is the Automatic Squelch Control function; when you press this button AQ is displayed
on the LCD and the Squelch control function is automatically enabled.
You can use this ASQ function when there are many and irregular noises.
When ASQ is on, the manual SQ function will not work.
NB : An ASQ control button is also located on the microphone. 1ò
2ò
3ò
4ò
1ò
2ò
3ò
ENGLISH
