Lafayette comstat 25 owners manual

This is the 20 pages manual for lafayette comstat 25 owners manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 20
left right
lafayette comstat 25 owners manual

Extracted text from lafayette comstat 25 owners manual (Ocr-read)

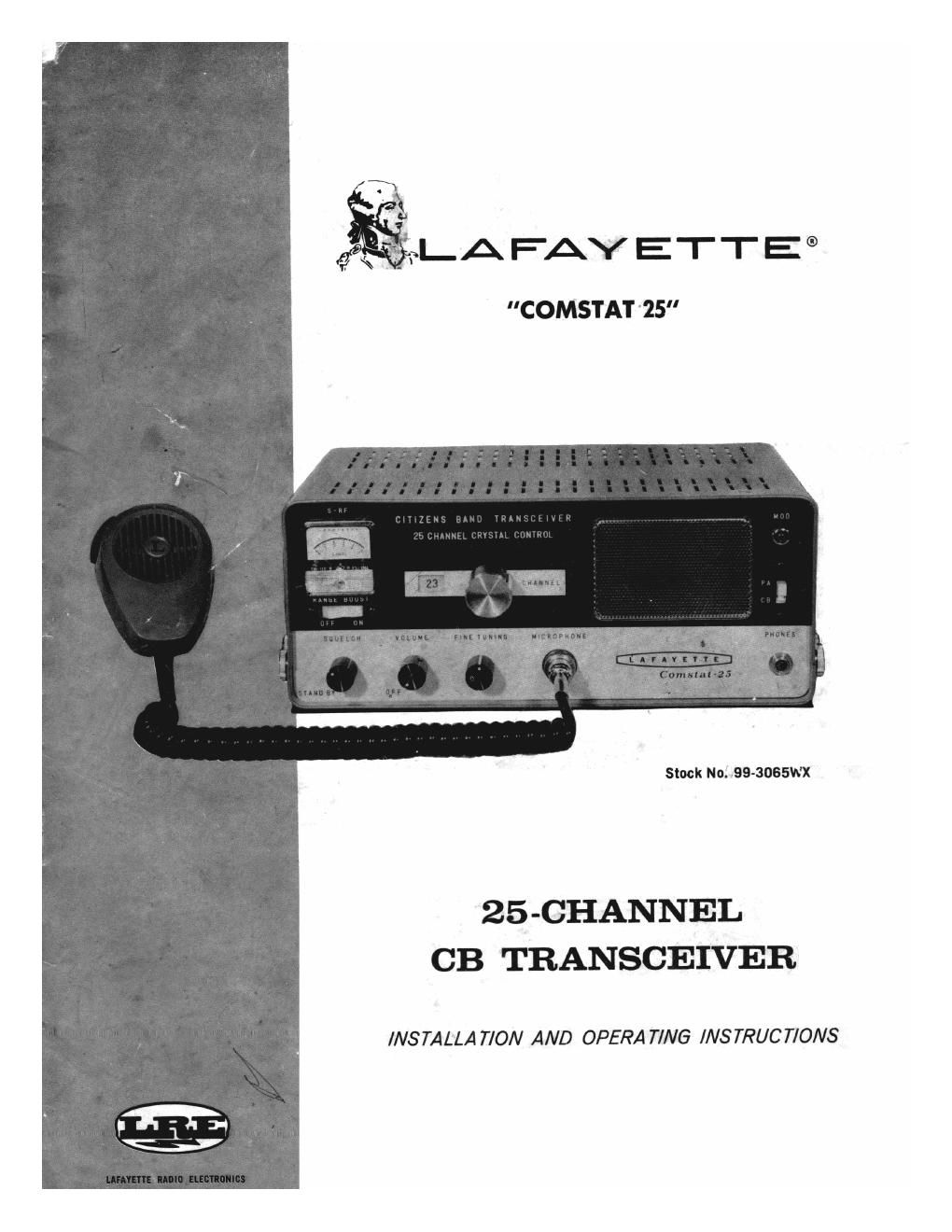

Page 1

"COMSTA'I' '25"

Stock No. ,99-3065WX

25 -CHANNEL
CB TRANSCEIVER

INSTALLA TION AND OPERA TING INSTRUCTIONS

Page 2

RECEIVER

CIRCUIT TYPE ....................

SENSITIVITY .......................
SELECTIVITY ......................

INTERMEDIATE FREQUENCY .......
IMAGE REJECTION ................

AUDIO OUTPUT ....................

EXTERNAL SPEAKER IMPEDANCE .r

AUXILIARY CIRCUIT S ..............

TRANSMITTER

PLATE POWER INPUT TO FINAL,.

MODU LAT ION .....................

RANGE-BOOST .....................

HARMONIC SUPPRESSION ..........

CARRIER DEVIATION ..............

ANTENNA MATCHING ..............

TRANS/REC SWITCHING ...........

PUBLIC ADDRESS .................

SPECIFICATIONS

Dual conversion superheterodyne; Crystal-controlled 2: Chan-
nel reception With fine tuning" capability of 2.5 Kc on each
channel. A crystal frequency synthes-zez cucuu |S used to

provide 23 channel oparation on transmit and receive.

0.8,iv for 10 db 5 + N to N ratio
6 Kc bandwidth -26 db

lst IF 11,275 MC, 2nd IF 455 Kc.
-75 db

4 watts into 5 x 3" oval speaker.

.. . . 4-8 ohms.

Full-time Automatic Noise Limiter, Adjustable Squelch, AVC.

5 watts
AM, via plate modulation; up to 100% capability.

Yields high average modulation at all times at average speak-
ing levels.

Exceeds FCC requirements.

Exceeds FCC requirement of 1.005%.
Will match resistive antenna loads of 50-75 ohms,
Relay switching, push-to-talk on microphone,

PA facilities using microphone and audio stage in conjunc-
tion with an external speaker.

. mm: commits EDHIIEMKI llfl Iv urns": umn surnames minimum a m Imam "mums. svnssu. L |., I vv
