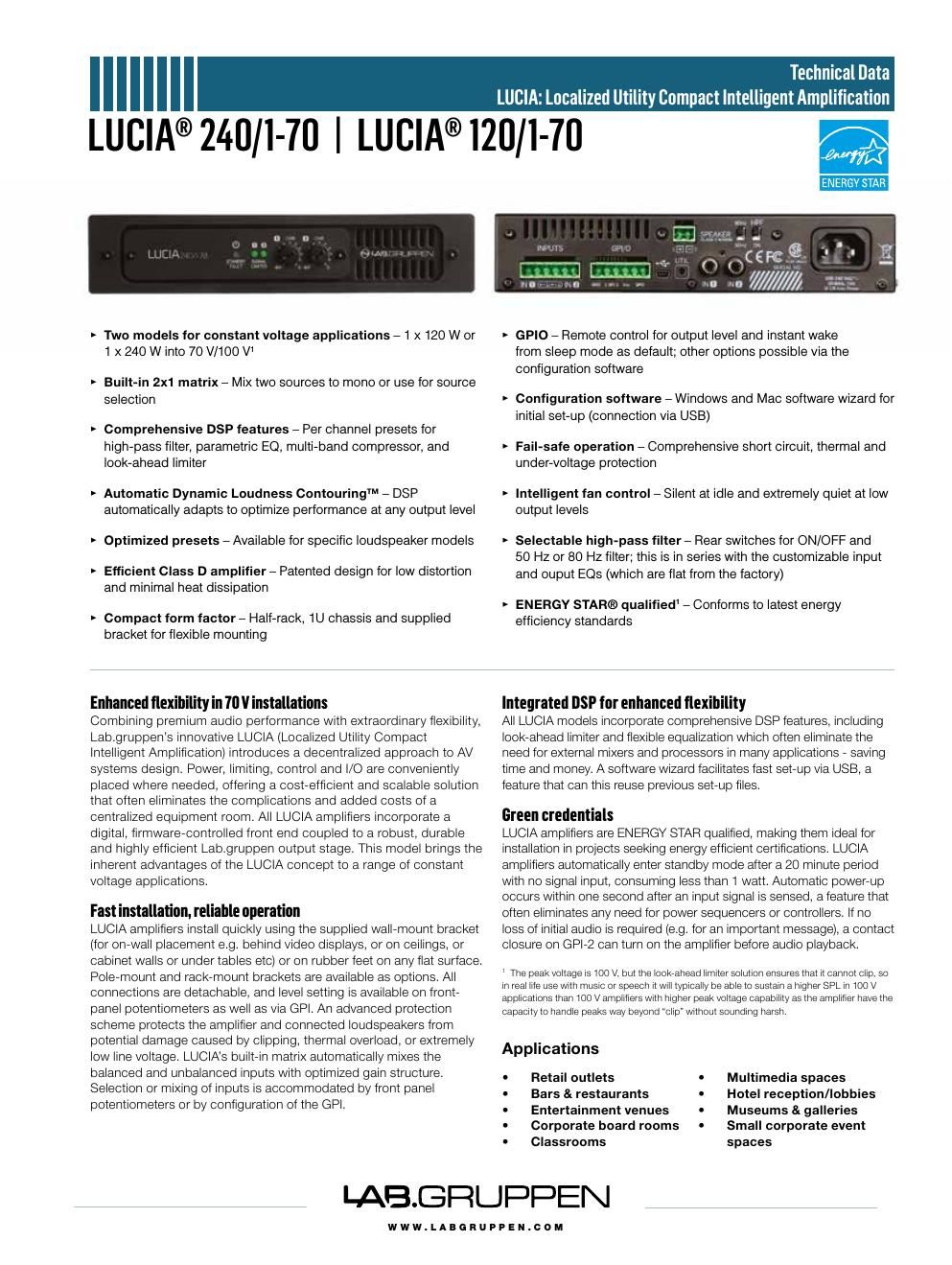

Specifications
General LU C I A 24 0/1-70LU C I A 120/1-70 Number of powered channels 11 Total output all channels driven 240 W120 W Ma x output voltage 10 010 0 Max. output current 73.5
Performance
70 V 240 W120 W 100 V 1) 120 W60 W 16 ohms 240 W120 W
Gain, Sensitivity and Limiters
VPL 100100 Sensitivity, balanced input 4 dBu / 1.23 Vrms4 dBu / 1.23 Vrms Sensitivity, RCA input -2 dBu / 0.62 Vrms-2 dBu / 0.62 Vrms Input headroom for clip, balanced 2) 12 dBu / 3.09 Vrms12 dBu / 3.09 Vrms Input headroom for clip, RCA 2) 6 dBu / 1.55 Vrms6 dBu / 1.55 Vrms
Connectors and switches
Input connectors (per ch.) 3-pin detachable screw terminals, electronically balanced Input connectors (ch 1 & 2) Unbalanced RCA type Output connector 2-pin detachable screw terminal GPI 3) 2 channels of voltage sense type 4 pins in a detachable screw terminal. Default functionality is output level for GPI1 and
wake up from stand by for GPI2
GPO (power state output) 3) Contact closure type, 2 pins in a detachable screw terminal. Default for external monitoring of fault/protection/power of f USB For firmware update and configuration of the signal processing and altering the default functions of the GPI por ts Cooling One fan, no filter required, front-to-rear air flow, temperature controlled speed Can stay of f if the sustained power average
stays below 12 W and the surrounding temperature is below 25 degrees C
Auto mode The power state is controlled automatically with the audio signal Level adjustment (per input) Front panel potentiometer, detented from -inf to 0 dB
Power
Nominal voltage 100 - 240 VAC Operating voltage 85 - 265 VAC Standby consumption <1 W Mains connector IEC inlet
Dimensions W: 216 mm (8.5), H: 44 mm (1.7), D: 280 mm (11) Weight 1.9 kg (4.2 lbs.) Finish Black aluminum front and black steel chassis Approvals CE, CSA, CCC, PSE, FCC, ENERGY STAR Warranty 3 years, components and factor y workmanship. See full warranty statement.
Note 1): The peak voltage is 100 V, but the look-ahead limiter solution ensures that it cannot clip, so in real life use with music or speech it will typically be able to sustain a higher SPL in
100 V applications than 100 V amplifiers with higher peak voltage capability as the amplifier have the capacity to handle peaks way beyond clip without sounding harsh.
Note 2): An analog sof t limit will be engaged on the input above this level to reduce the clip distor tion
Note 3): Can be configured for dif ferent functionality via USB
All specifications are subject to change without notice.
Item no. TDS-LUCIA170_V1 - 16.06.2015
