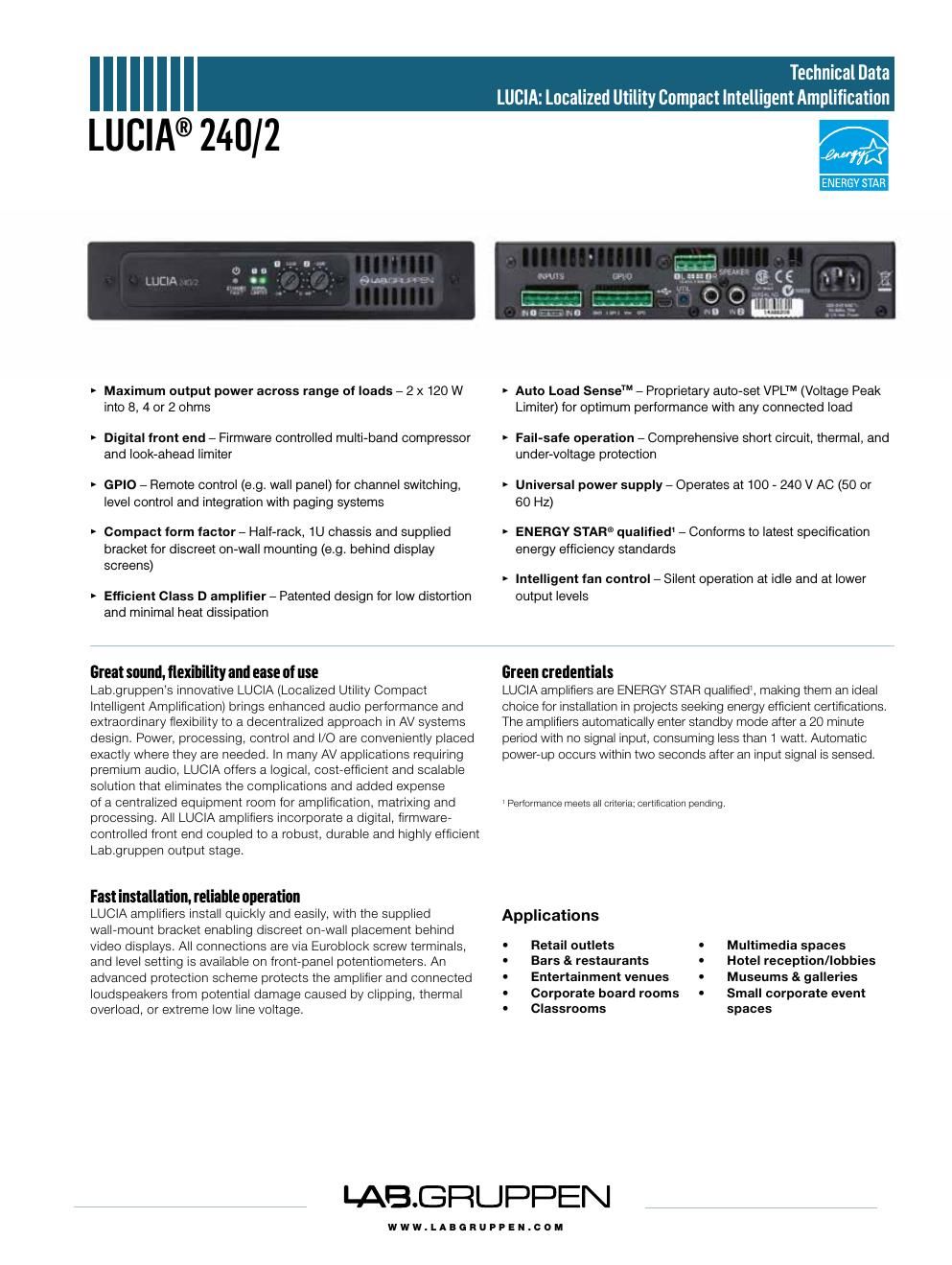

Specifications LUCIA 240/2
Item no. TDS-LUCIA2402_V3 - 06.06.2016
General
Number of powered channels2
Total output all channels driven 240 W
Ma x output voltage per channel
1) 43.8 V peak
Ma x. output current per channel 7.8 Arms
Max. Output Power (all ch.s driven)
2 ohms 120 W
4 ohms 120 W
8 ohms 120 W
16 ohms 60 W
Performance
THD 20 Hz - 20 kHz at 1 W into 8 ohms <0.3%
THD at 1 kHz and 1 dB below clipping <0.2%
Signal To noise ratio into 8 ohms >101 dBA
Channel separation (Crosstalk) at 1 kHz >60 dB
Frequency response 5 Hz - 22 kHz
Input impedance 10 kOhm
Input common mode rejection, CMR 40 dB
Gain, Sensitivity and Limiters
VPL for 16 ohm mode 44 V
VPL for 8 ohm mode 44 V
VPL for 4 ohm mode 31 V
VPL for 2 ohm mode 22 V
Sensitivity, balanced input 4 dBu / 1.23 Vrms
Sensitivity, RCA input -2 dBu / 0.62 Vrms
Input headroom for clip, balanced
2) 12 dBu / 3.09 Vrms
Input headroom for clip, RCA 2) 6 dBu / 1.55 Vrms
Connectors and switches
Input connectors (per ch.) 3-pin detachable screw terminals, electronically balanced
Input connectors (ch 1 & 2) Unbalanced RCA type
Output connectors (per ch.) 2-pin detachable screw terminals
GPI (power control input)
3) 2 channels of voltage sense type. 4 pins in a detachable screw terminal. Default for gain.
GPO (power state output) 3) Contact closure type, 2 pins in a detachable screw terminal
Default for external monitoring of fault/protection/power of f
RS232
4) Can be controlled and monitored by third par ties via RS232 using both the GPI pins
USB For firmware update and configuration for the matrix models
Cooling One fan, no filter required, front-to-rear air flow, temperature controlled speed
Can stay of f if the sustained power average stays below 2 x 6 W and the surrounding
temperature is below 25 degrees C
Auto mode The power state is controlled automatically with the audio signal
Level adjustment (per channel)
3) Front panel potentiometer, detented from -inf to 0 dB
Processing Features
Input processing block
5) 4 EQ sections per input
Mix matrix routing block 5) 2 in - 2 out mix-matrix controllable from GPI
Output processing block
5) 4 EQ sections per output (presets available for many loudspeakers)
User adjustable output look ahead limiter
ADLC (Adaptive ISO 226 compensation)
Latency from any input to any output User adjustable from 9.15 to 137 ms
Power
Nominal voltage 100 - 240 VAC
Operating voltage 85 - 265 VAC
Standby consumption <1 W
Mains connector IEC inlet
Dimensions W: 216 mm (8.5), H: 44 mm (1.7), D: 280 mm (11)
Weight 1.9 kg (4.2 lbs.)
Finish Black aluminum front and black steel chassis
Approvals CE, CSA, CCC, PSE, FCC, ENERGY STAR
Note 1): Into 8 ohms and higher
Note 2): An analog sof t limit will be engaged on the input above this level to reduce the clip distor tion
Note 3): Can be configured for dif ferent functionality via USB
Note 4): Included from October 2016 and onwards.
Note 5): DSP settings determined by settings downloaded from the Application Browser sof tware; not configurable on the unit itself
All specifications are subject to change without notice.
