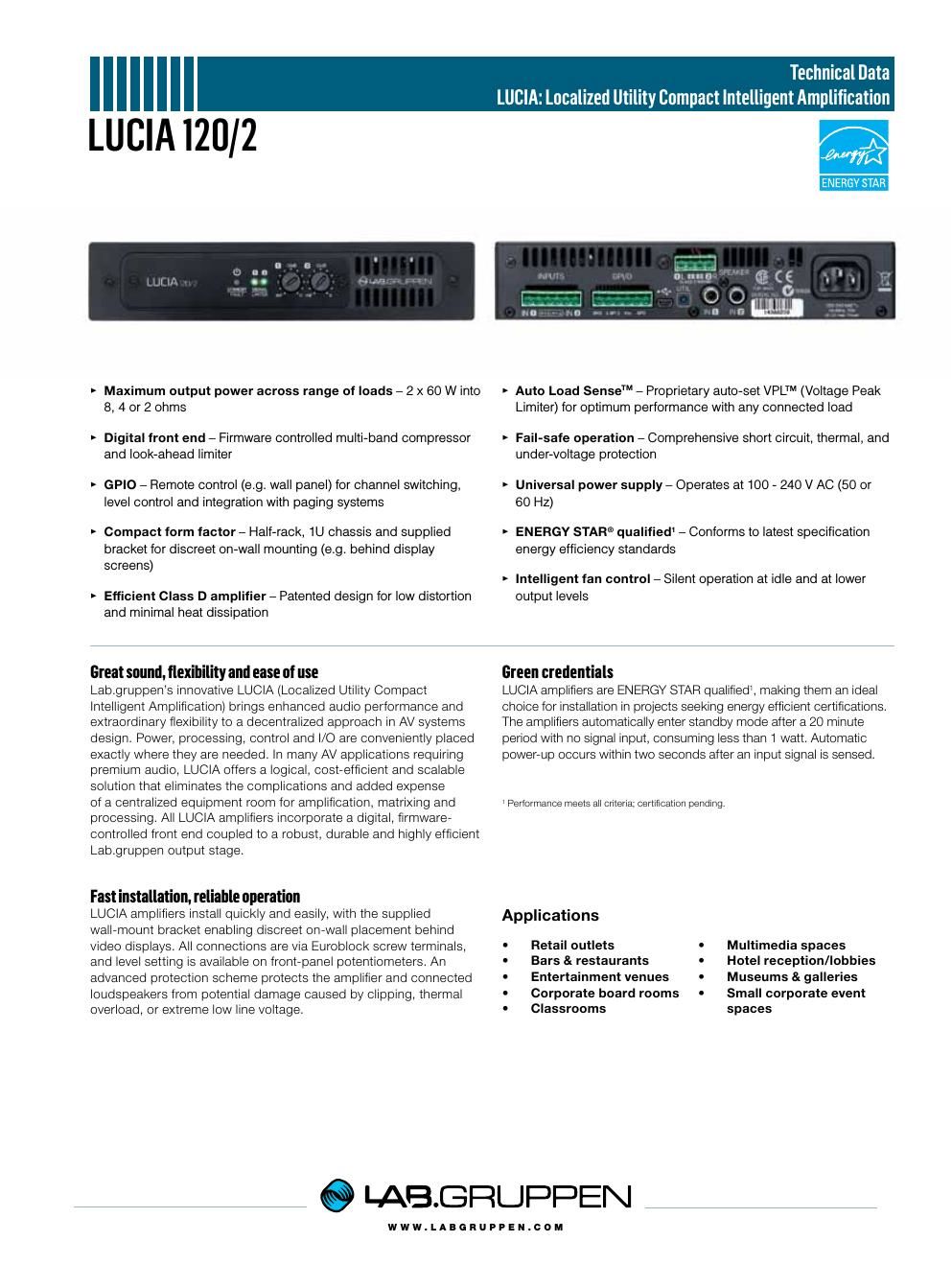

Specifications LUCIA 120/2
General
Number of powered channels2
Total output all channels driven 120 W
Ma x output voltage per channel
1) 31 V peak
Ma x. output current per channel 5.5 Arms
Max. Output Power (all ch.s driven)
2 ohms 60 W
4 ohms 60 W
8 ohms 60 W
16 ohms 30 W
Performance
THD 20 Hz - 20 kHz at 1 W into 8 ohms <0.3%
THD at 1 kHz and 1 dB below clipping <0.2%
Signal To Noise Ratio >92 dBA
Channel separation (Crosstalk) at 1 kHz >60 dB
Frequency response 5 Hz - 22 kHz
Input impedance 10 kOhm
Input common mode rejection, CMR 40 dB
Gain, Sensitivit y and Limiters
VPL for 16 ohm mode 31 V
VPL for 8 ohm mode 31 V
VPL for 4 ohm mode 22 V
VPL for 2 ohm mode 15 V
Sensitivity, balanced input 8 dBu / 1.95 Vrms
Sensitivity, RCA input 2 dBu / 0.98 Vrms
Input headroom for clip, balanced 12 dBu / 3.09 Vrms
Input headroom for clip, RCA 6 dBu / 1.55 Vrms
Connectors and switches
Input connectors (per ch.) 3-pin detachable screw terminals, electronically balanced
Input connectors (ch 1 & 2) Unbalanced RCA type
Output connectors (per ch.) 2-pin detachable screw terminals
GPI (power control input)
2) 2 channels of voltage sense type. 4 pins in a detachable screw terminal. Default for gain.
GPO (power state output) 2) Contact closure type, 2 pins in a detachable screw terminal
Default for external monitoring of fault/protection/power of f
USB For firmware update and configuration for the matrix models
Cooling
One fan, no filter required, front-to-rear air flow, temperature controlled speed
Can stay of f if the sustained power average stays below 2 x 6 W and the surrounding
temperature is below 25 degrees C
Auto mode The power state is controlled automatically with the audio signal
Level adjustment (per channel) 2) Front panel potentiometer, detented from -inf to 0 dB
Power
Nominal voltage 100 - 240 VAC
Operating voltage 85 - 265 VAC
Standby consumption <1 W
Mains connector IEC inlet
Dimensions W: 216 mm (8.5), H: 44 mm, D: 280 mm (11)
Weight 1.9 kg (4.2 lbs.)
Finish Black aluminum front and black steel chassis
Approvals CE, CSA, CCC, PSE, FCC, ENERGY STAR
Warranty 3 years, components and factor y workmanship. See full warranty statement.
Note 1): Into 16 ohms and higher
Note 2): Can be configured for dif ferent functionality via USB
Note 3): Noise levels typically allow daisy chaining of 3 LUCIA amplifiers without issues
All specifications are subject to change without notice.
Item no. TDS-LUCIA1202_V1.1 - 10.09.2013
