Krell lat owners manual

Page 1

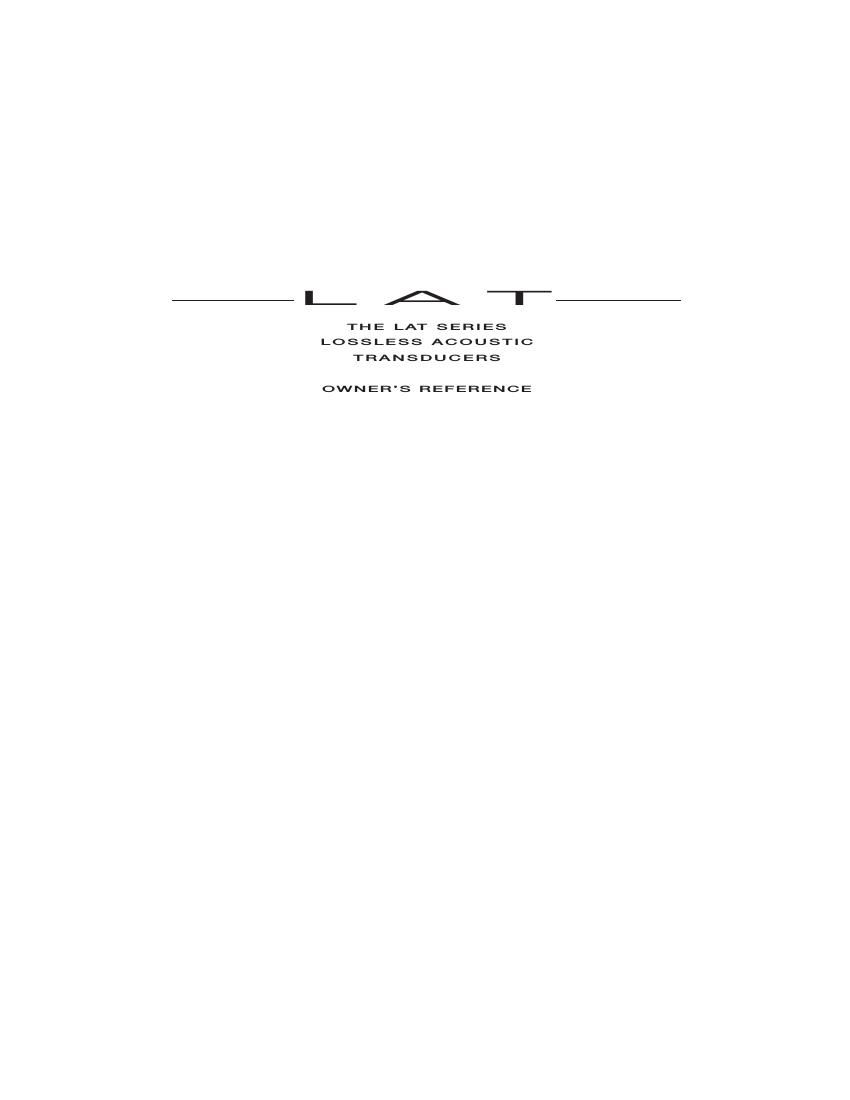

The LAT Series Lossless Acoustic Transducers Owners Reference, v 05.0 Krell Industries, Inc. 45 Connair Road Orange, CT 064773650 USA TEL 203 799 9954 FAX 203 8912028 EMAIL krell@krellonline.com WEBSITE http://www.krellonline.com This product complies with the EMC directive (89/336/EEC) and the lowvoltage directive (73/ 23/EEC). This product is manufactured in the United States of America. Krell ®is a registered trademark of Krell Industries, Inc., and is restricted for use by Krell Industries, Inc., its subsidiaries, and authorized agents. Krell HEAT-„¢, KrellHEAT -„¢, and LAT -„¢ are trademarks of Krell Industries, Inc. All rights reserved. All other trademarks and tradenames are registered to their respective companies. © 2005 by Krell Industries, Inc. All rights reserved P/N 307595W

Page 2

1iii Contents List of Illustrations, page iv Foreword, page v A Letter from Dan DAgostino, page 1 SECTION ONE: About Krell, page 2 The Krell Legacy, Ensuring Maximum Performance, and Definition of Terms SECTION TWO: Unpacking and Placement, page 7 Opening the LAT-“1000 and the LAT-“C1000 Shipping Crate Opening the LAT-“ 2000 Shipping Box Attaching and Detaching the Loudspeaker Grille SECTION THREE: Anatomy of a Loudspeaker, page 14 Features and Benefits of the LAT Design SECTIONFOUR:Connecting a LAT Series Loudspeaker to Your System, page 22 SECTIONFIVE: Kr ell HEAT : Home Theater Technology, page 23 WARRANTY, page 24 RETURN AUTHORIZATION PROCEDURE, page 26
