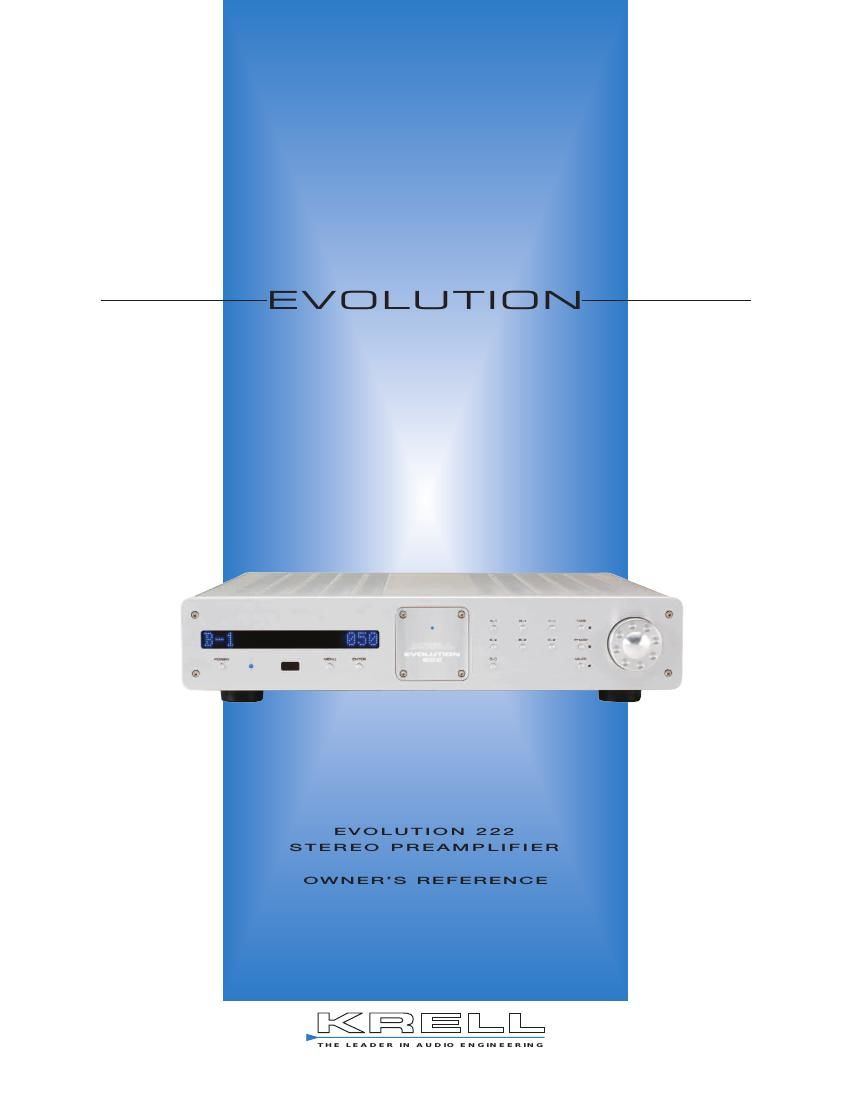

Page 1
Evolution 222 Stereo Preamplifier
Owners Reference, v 06.0
Krell Industries, Inc.
45 Connair Road
Orange, CT 06477
3650 USA
This product complies with the EMC directive (89/336/EEC) and the low voltage directive
(73/ 23/EEC).
IMPORTANT SAFETY INSTRUCTIONS
1. Read Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all Instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not install near any heat sources such as radiators, heat registers, stoves, or other appa
ratus (including amplifiers) that produce heat.
8. Unplug this apparatus during lightning storms or when unused for long pe\
riods of time.
9. Refer all servicing to qualified service personnel. Servicing is r equired when the apparatus
has been damaged in any way ,such as a power
supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus ha\
s been exposed to
rain or moisture, does not operate normally, or has been dropped.
10. The Evolution 222 preamplifier must be placed on a firm, level surface where it is not exposed
to dripping or splashing.
11. The ventilation grids on the top of the Evolution 222 preamplifier and the space underneath the
Evolution 222 pr
eamplifier must be unobstructed at all times during operation. Do not pl\
ace
flammable material above or beneath the pr eamplifier.
12. Before making connections to the Evolution 222 preamplifier, ensure that the power is off and
other components ar ein mute or stand by mode. Make sur eall cable terminations ar
e of the
highest quality, free from frayed ends, short circuits, or cold solder joints.
13. Do not connect an RS 232 cable to the phono power port. Output from the \
phono power port
can seriously damage your computer
.
14. Do not connect the cable from a Krell KPE phono stage to the RS 232 port.
15. THERE ARE NO USER SERVICEABLE P ARTS INSIDE AN EVOLUTION 222 PREAMPLIFIER.
Please contact Krell if you have questions not addressed in this guide.
This product is manufactured in the United States of America. Krell ®is a registered trademark of Krell Industries, Inc., and is restricted for use by
Krell Industries, Inc., its subsidiaries, and authorized agents. Evolution\
Bias -„¢is a trademark of Krell Industries, Inc. and is a Krell technology
based on U.S. Patent No. 5,331,291. CAN Link -„¢, CAST -„¢, Evolution CAST -„¢, and Krell Current Mode -„¢are trademarks of Krell Industries,
Inc. All other trademarks are registered to their respective companies.
© 2006 by Krell Industries, Inc. All rights reserved P/N 309158 W
TEL 203 298 4000
FA X 203 891 2028
E MAIL sales@krellonline.com
WEBSITE http://www.krellonline.com Go\040to\040website
Page 2
3
Contents
List of Illustrations, page 4
ALetter from Dan DAgostino, page 5
SECTION ONE: Evolution 222 Features and Technology, page 6
Featur es, Revolutionary Krell CAST Technology,
Definition of T erms
SECTIONTWO: Unpacking and Placement, page 11
Opening the Evolution 222 Shipping Carton
SECTION THREE: Quick Start, page 13
Connecting the Evolution 222 to Y our System,
Operating the Evolution 222
SECTION FOUR: Anatomy of the Evolution 222, page 15
Front Panel Description, Remote Control Description,
Battery Installation, and Back Panel Description
SECTION FIVE: Connecting the Evolution 222 to Your System, page 26
Input and Output Connections, Connection Steps
SECTION SIX: Evolution 222 Operation, page 28
On/Off and Stand by Operation
SECTION SEVEN: Customizing the Evolution 222, page 29
Navigation Conventions, Menu Functions
SECTION EIGHT: Troubleshooting System Noise, page 43
WARRANTY, page 44
RETURN AUTHORIZA TION PROCEDURE, page 46
SPECIFICATIONS, page 47
