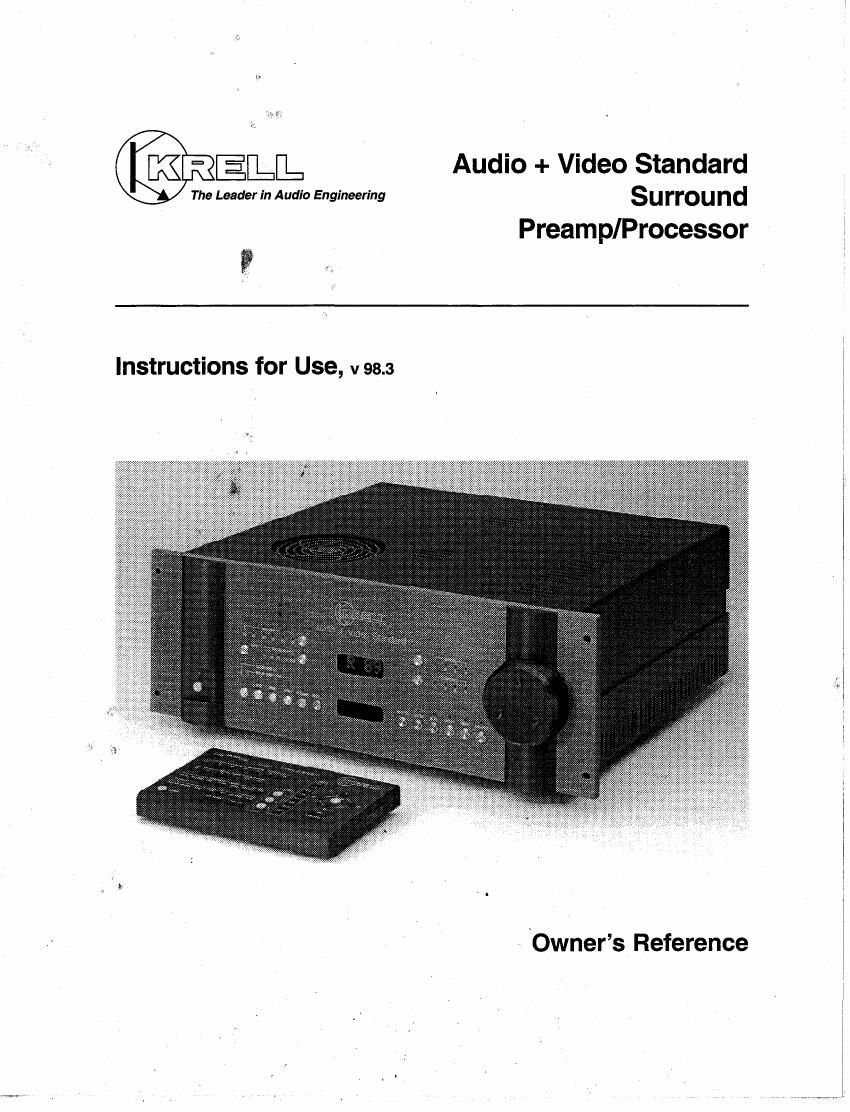

Krell avs owners manual

Page 1

Audio + Video Standard Surround Preamp/Processor CONTENTS Krell ® Industries, Inc. 45 Connair Road Orange, CT 06477-3650 USA TEL 203-799-9954 FAX 203-799-9796 E-MAIL krell @ krellonli ,ne.com WEB SITE ~.krellonline.com INTRODUCTION UNPACKING PLACEMENT FRONT PANEL DESCRIPTION BACK PANEL DESCRIPTION CONNECTING THE AUDIO + VIDEO STANDARD TO YOUR SYSTEM REMOTE CONTROL DESCRIPTION SYSTEM CONFIGURATION OPERATION SAVING, RECALLING, AND CLEARING CONFIGURATION SET-rINGS WARRANTY RETURN AUTHORIZATION PROCEDURE SPECIFICATIONS 3 3 4 5 9 12 13 18 26 29 3O 31 Back Cover ILLUSTRATIONS Figure 1 FRONT PANEL Figure 2 BACK PANEL Figure 3 REMOTE CONTROL Page 8 11 16 998 by KRELL ® Industries, Inc. All rights reserved P/N 1960101900389

Page 2

CE Marking This 'product complies with the EMC direc- tive (89/336/EEC) and the low-voltage direc- tive (73/23/EEC). - Introducbon Thank you for your purchase of the Krell ® Audio + Video Standard. To obtain the best performance from your Audio + Video Standard surround preamp/processor, pay careful attention to its placement, installa- tion, and operation. A thorough understand- ing of these details will help insure satisfac- tory operation andlong life for the Audio + Video Standard and related' system compo- nents. ~ THERE ARE NO USER-SERVICEABLE PARTS INSIDE ANY KRELL ® PRODUCT. Please contact your authorized dealer, distributor, or KrelP, if you have any ques- tions not addressed in this reference manual. Unpacking 1. Open the box and remove the top layer of foam. You will see these items: 1 Audio + Video Standard 1 AC power cord 1 Audio + Video remote control 4 AAA batteries 1 T-10 Torx wrench 1 packet containing an introductory letter from Dan D'Agostino, C.E.O., the Owner's Reference, and the Warranty Registration Card Note If any of these items are not included, please contact your authorized Krell ® dealer or dis- tributor immediately for assistance. Carefully remove the unit and acces- sories from the box. Remove the protec- tive plastic wrap from the unit. Note Save all packing materials, ff you must ship your Audio + Video Standard in the future, repack the unit in its original packaging to prevent transit damage. KRELL ® Audio + Video Standard English Page 3 of 32
