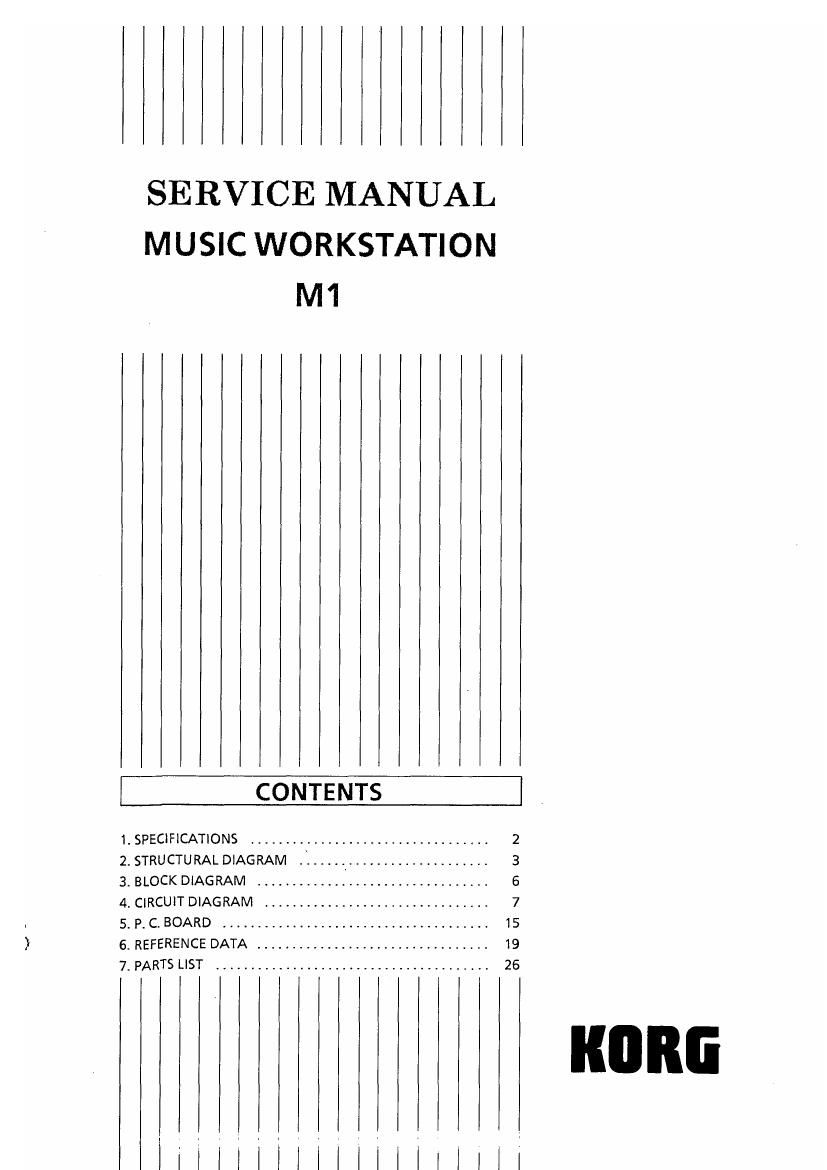

Page 1
I!
H
SERVICE MANUAL
MUSIC WORKSTATION
M1
H
CONTE NTS
1. SPECIFICATIONS .................................. 2
2. STRUCTURAL DIAGRAM f ...... . .................... 3
3. BLOCK DIAGRAM ................................. 6
4. CIRCUIT DIAGRAM ................................ 7
5. P. C; BOARD ...................................... 15
6. REFERENCE DATA ................................. 19
7. PARTS LIST ....................................... 26
Page 2
1 . SPEClFlCATIONS
Sound generation method
Sound source
Keyboard
I Waveform memory
Quantization
Effect section
Program memory capacity
Combination memory capacity
Sequencer section
Controller inputs
Outputs
MIDI terminals
Display
Optional accessories
Power requirements
Dimensions
Weight
AI Synthesis system (full digital sound processing)
16 voice, 16 oscillator (Single mode)
8 voice. 16 oscillator (Double mode)
61 key (with initial and after touch)
PCM; 2 Mword (4 Mbyte)
16 bit
2-system digital multi-effects
100 Programs1
100 Combinations
10 songs, 100 patterns, max. 7700 notes"2
8 tracks, S-Limbre multi-timbral operation
(Dynamic Voice Allocation)
Damper pedal, assignable footswitches (pedals) 1/2
l/L, 2/R, 3, 4. stereo headphones
IN, OUT, THRU
Backlit LCD (40 characters x 2 lines)
RAM card (MGR-03), ROM card, PCM card
ll W
1058 (W) x 356 (D) x 110 (H)
13.5 kg
*1 Memory allocation can be changed to 50 Programs and 50 Combinations.
*2 A capacity of 4400 notes when 100 Program/100 Combination memory allocation is selected.
- Specifications are subject to changes and improvements without nodce.
