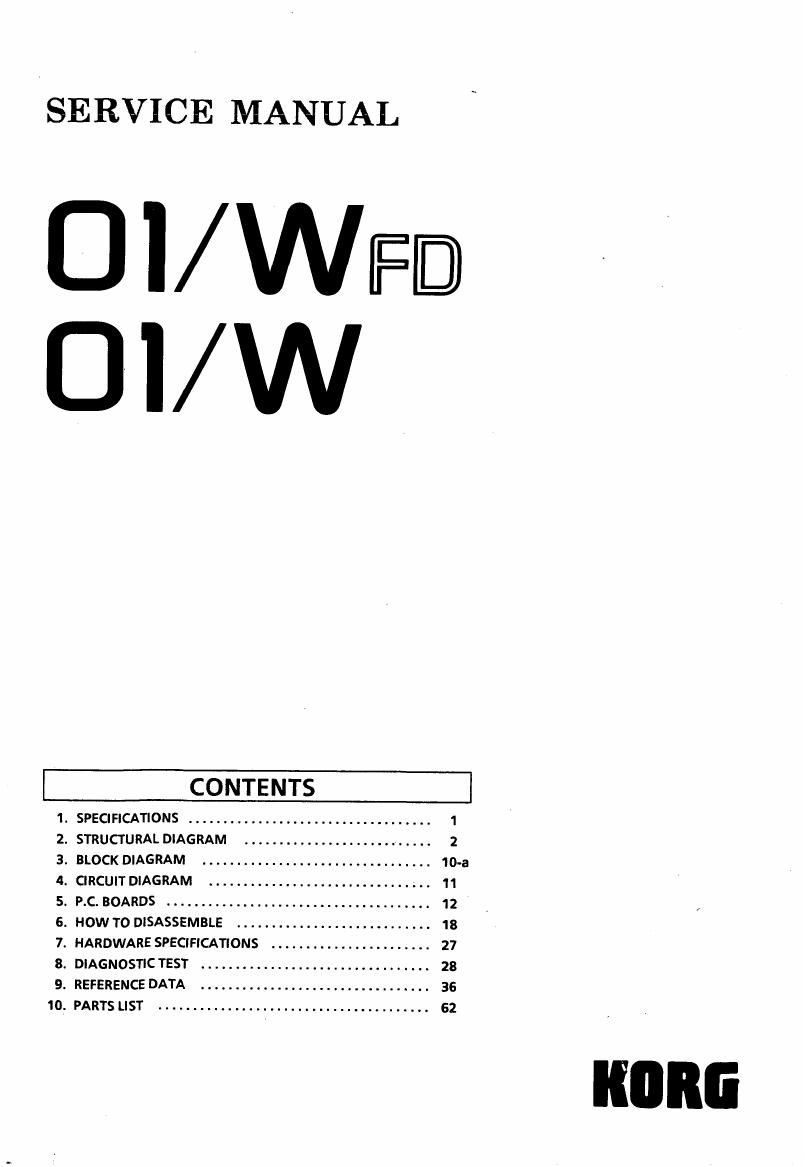

This is the 79 pages manual for KORG 01W WFD SERVICE MANUAL.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
1. SPECIFICATIONS
Tone generation method 1 AI square synthesis system ( full digital processing )
Tone generator
Keyboard
Waveform memory
Effects
Programs
Combinations
Sequencer section
Control inputs
Outputs
Floppy disk drive
(OI/WFD only)
PCM card slot
FROG/SEQ card slot
MIDI
Display
Power consumption
Dimensions
Weisht
S 82 voices. 32 oscillators(single node) ; 16 voices,
32 oscillators(double node)
2 61 notes, with inintial and aftertoueh sensitivity
: PC" 48 Mbits
2 two digital multi-effect systems
: 200 Programs
: 200 Combinations
: 10 Songs, 100 Patterns, maximum 48.000 notes
(for the Ol/W, 7,000), 16 tracks. 16 timbers (dynamic
voice allocation)
3 Damper pedal, Assignable pedals 1,2
I 1/L. 2/R, 3, 4, headphones
: 3.5 inch 2DD (for Program/Conbination/Drum Kit/Global
parameters/Sequence data/MIDI data)
2 PCM data
: for ProsraI/Combination/Drum Kit/Global parameters
/Sequence data
: IN, OUT, THRU
: LCD 64 x 240 dots. full dot matrix, with backlight
: 20W
2 1059.5(W) x 334(0) x 115.5(H) mm
Z 01/WFD...13.9k8 Ol/l...13.4k8
£6 Appearance and specifications are subject to change without notice
for product improvement.
