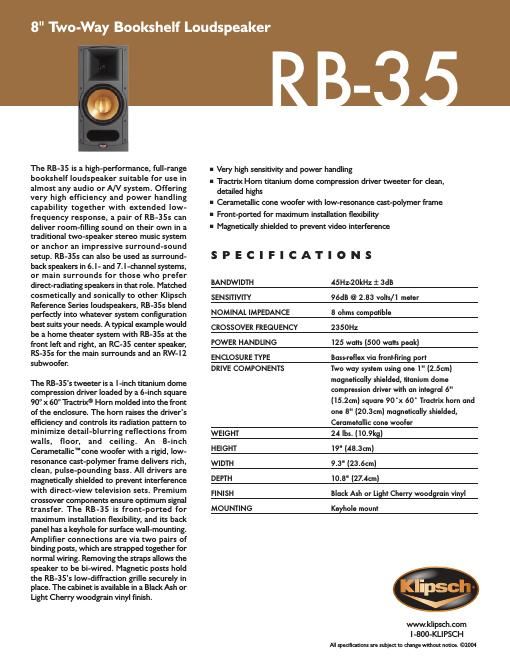

RB 35
SPECIFICATIONS
BANDWIDTH 45Hz 20kHz ± 3dB
SENSITIVITY 96dB @ 2.83 volts/1 meter
NOMINAL IMPEDANCE 8 ohms compatible
CROSSOVER FREQUENCY 2350Hz
POWER HANDLING 125 watts (500 watts peak)
ENCLOSURE TYPE Bass reflex via front firing port
DRIVE COMPONENTS Two way system using one 1'' (2.5cm)
magnetically shielded, titanium dome
compression driver with an integral 6''
(15.2cm) square 90Ëšx 60Ëš Tractrix horn and
one 8'' (20.3cm) magnetically shielded,
Cerametallic cone woofer
WEIGHT 24 lbs. (10.9kg)
HEIGHT 19" (48.3cm)
WIDTH 9.3" (23.6cm)
DEPTH 10.8" (27.4cm)
FINISH Black Ash or Light Cherry woodgrain vinyl
MOUNTING Keyhole mount
Very high sensitivity and power handling
Tractrix Horn titanium dome compression driver tweeter for clean,
detailed highs
Cerametallic cone woofer with low resonance cast polymer frame
Front ported for maximum installation flexibility
Magnetically shielded to prevent video interference
8'' Two Way Bookshelf Loudspeaker
The RB 35 is a high performance, full range
bookshelf loudspeaker suitable for use in
almost any audio or A/V system. Offeringvery high efficiency and power handling
capability together with extended low
frequency response, a pair of RB 35s can
deliver room filling sound on their own in a
traditional two speaker stereo music systemor anchor an impressive surround sound
setup. RB 35s can also be used as surround back speakers in 6.1 and 7.1 channel systems,or main surrounds for those who preferdirect radiating speakers in that role. Matchedcosmetically and sonically to other Klipsch
Reference Series loudspeakers, RB 35s blendperfectly into whatever system configurationbest suits your needs. A typical example would
be a home theater system with RB 35s at the
front left and right, an RC 35 center speaker,
RS 35s for the main surrounds and an RW 12subwoofer.
The RB 35s tweeter is a 1 inch titanium dome
compression driver loaded by a 6 inch square
90° x 60° Tractrix
®Horn molded into the front
of the enclosure. The horn raises the driversefficiency and controls its radiation pattern tominimize detail blurring reflections from
walls, floor, and ceiling. An 8 inch
Cerametallic-„¢cone woofer with a rigid, low
resonance cast polymer frame delivers rich,
clean, pulse pounding bass. All drivers aremagnetically shielded to prevent interference
with direct view television sets. Premium
crossover components ensure optimum signal
transfer. The RB 35 is front ported for
maximum installation flexibility, and its backpanel has a keyhole for surface wall mounting.Amplifier connections are via two pairs of
binding posts, which are strapped together for
normal wiring. Removing the straps allows the
speaker to be bi wired. Magnetic posts hold
the RB 35s low diffraction grille securely inplace. The cabinet is available in a Black Ash or
Light Cherry woodgrain vinyl finish.
www.klipsch.com
1 800 KLIPSCH
All specifications are subject to change without notice. ©2004
