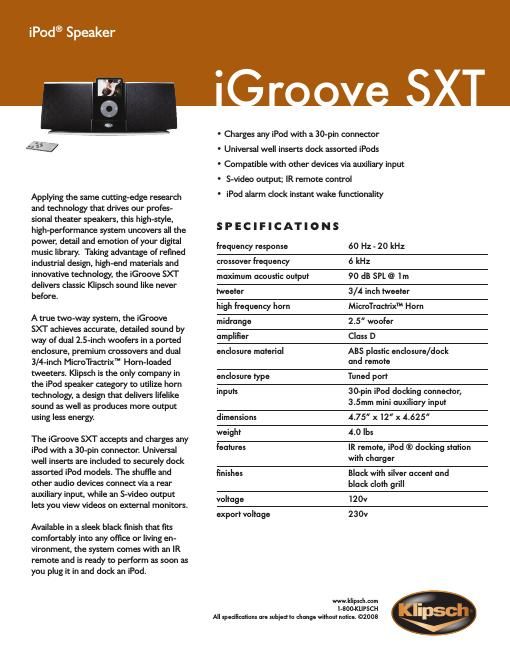

iPod'E Speaker
lr-rl Ff 7-7 T
Applying the same cutting-edge research
and technology that drives our profes-
sional theater speakers, this high-style,
high-performance system uncovers all the
power, detail and emotion of your digital
music library. Taking advantage of refined
industrial design, high-end materials and
innovative technology, the iGroove SXT
delivers classic Klipsch sound like never
before.
A true two-way system, the iGroove
SXT achieves accurate, detailed sound by
way of dual 2.5-inch woofers in a ported
enclosure, premium crossovers and dual
3/4-inch Micro'l'ractrixWI Horn-loaded
tweeters. Klipsch is the only company in
the iPod speaker category to utilize horn
technology, a design that delivers lifelike
sound as well as produces more output
using less energy.
The iGroove SXT accepts and charges any
iPod with a 30-pin connector. Universal
well inserts are included to securely dock
assorted iPod models. The shuffle and
other audio devices connect via a rear
auxiliary input, while an S-video output
lets you view videos on external monitors.
Available in a sleek black finish that fits
comfortably into any office or living en-
vironment, the system comes with an IR
remote and is ready to perform as soon as
you plug it in and dock an iPod.
' Charges any iPod with a 30-pin connector
' Universal well inserts dock assorted iPods
' Compatible with other devices via auxiliary input
0 S-video output; IR remote control
' iPod alarm clock instant wake functionality
SPECIFICATIONS
frequency response 60 Hz - 20 kHz
crossover frequency 6 kHz
maximum acoustic output
90dBSPL@ lm
tweeter
3/4 inch tweeter
high frequency horn
MicroTractrixTM Horn
midrange 2.5 woofer
amplifier Class D
enclosure material ABS plastic enclosure/dock
and remote
enclosure type Tuned port
inputs 30-pin iPod docking connector,
3.5mm mini auxiliary input
dimensions 4.75 x 12 x 4.625
weight 4.0 lbs
features IR remote, iPod ® docking station
with charger
finishes Black with silver accent and
black cloth grill
voltage 120v
export voltage 230v
www.|
All specifications are subiect to change without notice. ©2008
