3. To install the tilebridge, fold the rail side of the ring back
upon itself using the spring tensioner on the reinforcement ring
to allow insertion into the cutout hole. Once it is inserted into
the cutout hole, release the reinforcement ring such that it
unfolds back to its normal position. Position tilebridge over
cutout hole, and insure that the tile rails rest on the t grid struts.
4. The wiring compartment is intended as a termination point
for the audio circuit. Access to this compartment is gained by
removing the terminal cover located on the back of the
speaker. The terminal cover will accept the appropriate
conduit/wire adapter (provided). Feed wires through
conduit/wire adapter and connect to the input terminal
according to the desired operation mode. Be sure to observe
proper polarity. Replace the terminal cover and tighten the
conduit/wire adapter to secure the wire.
Caution: When connecting 70V or 100V distributed
line systems, take care to ensure proper terminal
connection. Connection to the low impedance termi
nal could result in speaker damage, amplifier
damage, or both.

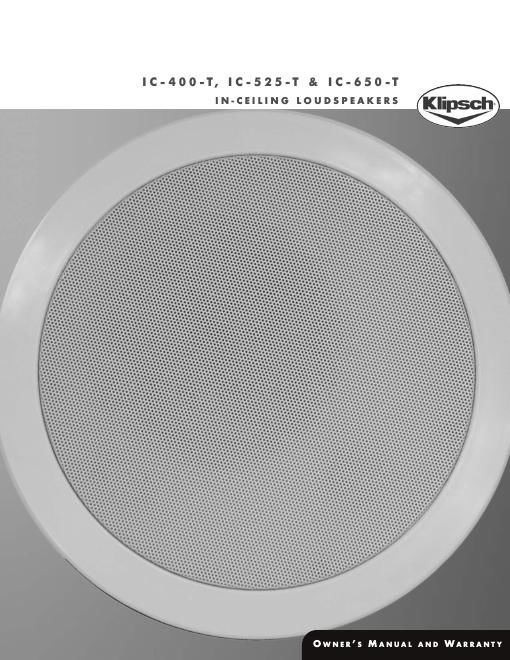

Thank you for purchasing your Klipsch IC 400 T,
IC 525 T or IC 650 T in ceiling speakers.
The IC 400 T, IC 525 T and IC 650 T in ceiling speakers have been
designed for music reinfor
cement applications. Unobtrusive,
these loudspeakers are engineered for easy, versatile installation.
The IC 400 T, IC 525 T and IC 650 T feature an internal transformer
for 70V/100V distributed line systems. The transformer taps are
selected using a rotary switch located conveniently under the
grille. For applications where 8 ohm operation is required, the
transformer can be by passed by using an optional connection
located on the back input terminal and selectin 8 Ohm on the
front switch.
Before installing your speakers take a moment to check the
contents of the cartons and make sure nothing has been
damaged in transit.
Contents Description Q
UANTITY
Speaker Modules 2
Grille \
2
Reinforcement Ring 2
Rails \
4
Cardboard Cutout Template and Paint Mask 2
Screws (Attach Rails to Reinforcement Ring) 8
3/
4" Adapter Fittings 2
Installation Guidelines
The IC 400 T, IC 525 T and IC 650 T include a tilebridge for use
when installing the loudspeaker into suspended ceilings or wher
ever additional r
einforcement of the ceiling material is required.
The tilebridge and loudspeaker are designed such that installa
tion may be accomplished where access above the ceiling is
not possible or may be difficult.
Installation
1.
The tilebridge is composed of three parts a reinforcement ring
and two rails. The two rails should be attached to the reinforce
ment ring using the four included screws as shown below.
Caution: Be sure to comply with any and all building codes
in your area.
2. To install your IC 400 T, IC 525 T or IC 650 T cut out a hole in the
ceiling using either the cardboard cutout template provided with
your speakers or consult the measurements below. Pull wiring
through hole.
IC 400 T, IC 525 T & IC 650 T
IC 400 T, IC 525 T 9.125 "Round
IC 650 T 10.125 "Round
Page 2
5. Insert the speaker into the cutout hole. With a #2 Phillips screw
driver, tighten the four dog clamps until they are seated securely
against the ceiling surface. Do not overtighten.
6. For installations using 70v/100v input connection, set the switch
on the front panel to the desired setting. For applications where 8
Ohm impedance is desired, the switch should be set to 8 Ohms.
Note: The speaker comes from the factory set at the lowest
output setting (highest impedance).
7. Using the flat of your hand, insert grille into speaker frame
making sure it is securely seated and flush. Seismic Tab
A seismic tab, located on the back of the speaker, is used
as a secondary security point. Some construction codes may
requir
e its use. To utilize the seismic tab, run a support wire
from a secure point in the ceiling and attach it to the tab.
Be sure to consult the construction codes in your area.
Klipsch recommends the use of this tab in all installations as
a secondary means of support.
15W 7.5W
15W
1.875W
3.75W 3.75W
7.5W
70V
100V
IC 400 T tap selectable
30W 7.5W15W
30W
3.75W
7.5W 15W
70V
100V
IC 525 T tap selectable
60W 60W
15W30W
7.5W
15W 30W
70V
100V
IC 650 T tap selectable
