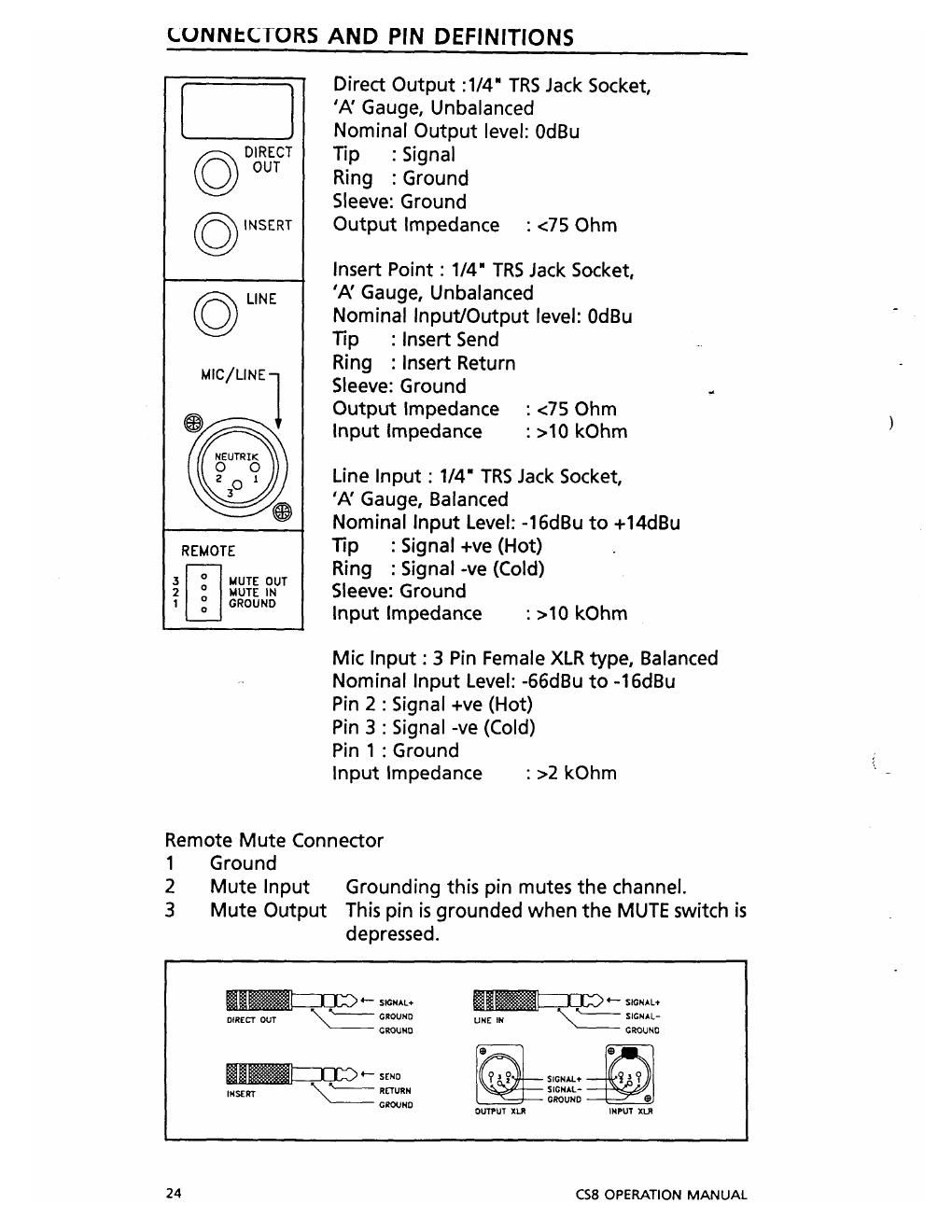

LUNNtCI'ORS AND PIN DEFINITIONS
Direct Output :1/4" TRS Jack Socket,
S A' Gauge, Unbalanced
Nominal Output level: OdBu
DIRECT Tip :Signal
OUT Ring :Ground
Sleeve: Ground
@ INSERT Output Impedance : <75 Ohm
Insert Point : 1/4' TRS Jack Socket,
LINE A' Gauge, Unbalanced
Nominal Input/Output level: OdBu
TIp : Insert Send
Ring : Insert Return
MIC/LlNEl Sleeve: Ground
Output Impedance : <75 Ohm
Input Impedance : >10 kOhm
Line Input : 1/4' TRS Jack Socket,
'A' Gauge, Balanced
Nominal Input Level: ~16dBu to +14dBu
REMOTE Tip : Signal +ve (Hot)
3 6 WT: our Ring : Signal -ve (Cold)
2 3 NOTE IN Sleeve: Ground
' ° °R°UN° Input Impedance : >10 kOhm
Mic Input : 3 Pin Female XLR type, Balanced
Nominal Input Level: -66dBu to ~16dBu
Pin 2 : Signal +ve (Hot)
Pin 3 : Signal -ve (Cold)
Pin 1 :Ground
Input Impedance : >2 kOhm
Remote Mute Connector
1 Ground
2 Mute Input Grounding this pin mutes the channel.
3 Mute Output This pin is grounded when the MUTE switch is
depressed.
no I-m-smm
'x.___ \-
DIRECT our \ WW LINE m \ SGNL'
GROUND GROUND
O 6
i. . .. /\ / \
» w - sucNAL. - (g)
INSERT \ F- RETURN .z - SIGNAL' * \\/
GROUND GROUND 9
OUTPUT XLR INN" XtR
24 C58 OPERATION MANUAL
