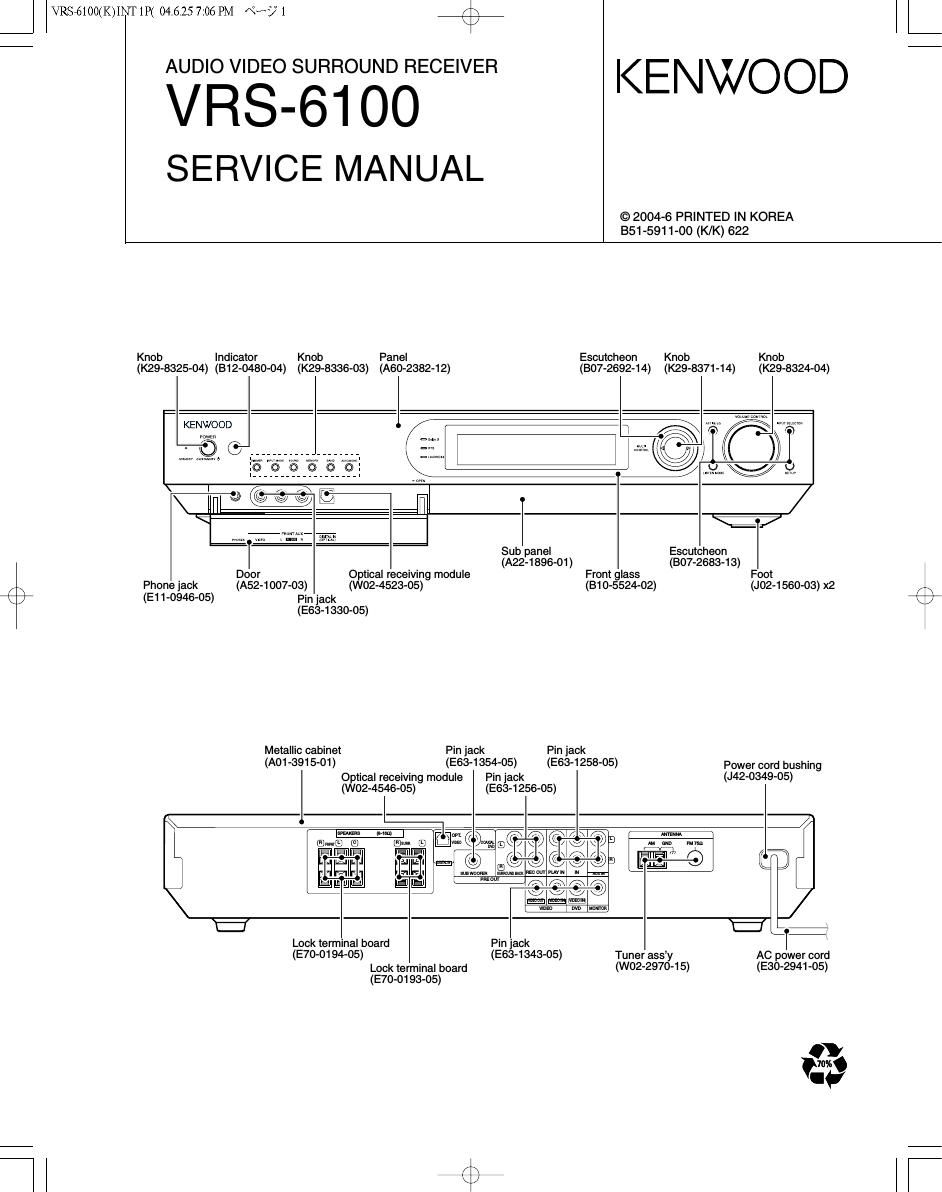

Kenwood VRS 6100 Service Manual

Page 2

VRSélOO(K)INT1P( 04.6.25 7:06 PM «3? 2

VHS-6100

CONTENTS / ACCESSORIES / CAUTIONS

CONTENTS
CONTENTS / ACCESSORIES / CAUTIONS ............... 2
PC BOARD .................... ..3

SCHEMATIC DIAGRAM

ACCESSORIES

EXPLODED VIEW ..................................................... 19
PARTS LIST ......
SECIFICATIONS.

AM loop antenna (1)
(T90-0893-05)

Remote control unit (1)
RC-R0629(A70-1658-05)

FM indoor antenna (1)
(T90-0905-05)

Batteries (Re/AA) (2)

CAUTIONS

Resetting the Microcomputer

The microcomputer may malfunction (unit cannot be operated, or
shows an erroneous display) it the power cord is unplugged while
the power is ON, or due to some other external factor. If this
happens, execute the following procedure to reset the microcom-
puter and return the unit to its normal operating condition.

Unplug the poweroord from the wall outlet, then plug it back in
while holding down the POWER ON/STANDBY Q) key.

0 Please note that resetting the microcomputer will clear the contents
of the memory and returns the unit to the state it was in when it left
the factory.

Memory back-up function

If the power supply to the receiver is shut down for about a day
or more, the following settings will be reset to the initial condi»
tions. Please be careful.

- Power mode : OFF

0Volume level : - 66 dB

. Dimmer level : OFF (Brightest condition)

0 Broadcast band : FM

0 Frequency setting : 87.50 MHz

°Tuning mode : AUTO

0 Listen mode setting : STEREO

. Input selector settings : TUNER

°TONE ON/OFF : OFF

0 LOUDNESS ON/OFF : OFF

0 BASS BOOST ON/OFF : OFF
