Kenwood VR 7070 Owners Manual

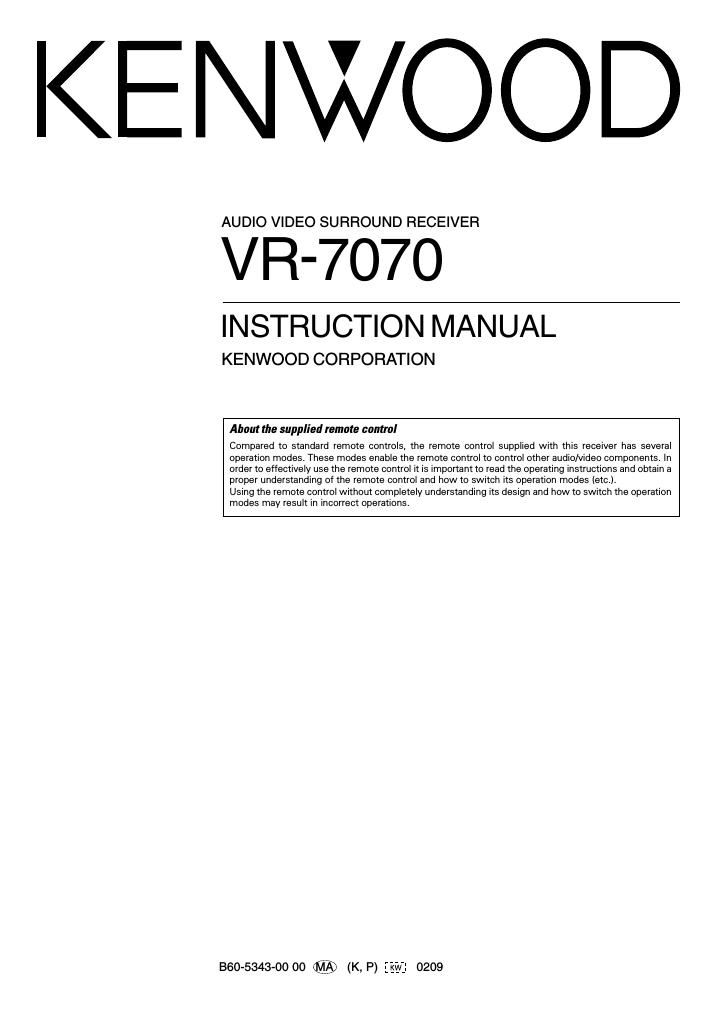

Page 1

KENWOOD

AUDIO VIDEO SURROUND RECEIVER

VR-707O

INSTRUCTION MANUAL

KENWOOD CORPORATION

Ahaut the supplied remote control

Compared to standard remote controls, the remote controI suppIied With this receiver has several
operation modes, These modes enabIe the remote control to ccntroI other audio/video components. In
order to effectiveiy use the remote ccntroI it is important to read the operating instructions and obtain a
proper understanding of the remote controI and how to switch its operation modes Ietc.I.

Using the remote controI without compietely understanding its design and how to switch the operation
modes may resuIt in incorrect operations,

sec-534300 00 @E (K, P) i

Page 2

Before applying the power

Units are designed for operation as follows.

U.S.A. and Canada
Australia .............
Europe and U.K
China and Russla
Other countries

. Ac 120 V only
. AC 240 V only
. AC 230 V only
. AC 220 V only
AC 110-120 / 220-240 V switchable*

Maintenance of the unit

When the front panel or case becomes dirty. wipe with a soft. dry
cloth. Do not use thinner, benzine, alcohol, etc. for these agents
may cause discoloration.

In regard to contact cleaner

Do not use contact cleaners because it could cause a malfunction.
Be specially careful not to use contact cleaners containing oil, for
they may deform the plastic component.

Safety precautions

WARNING:

TO PREVENT FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.

CAUTION

RISK or :ucrmc SHOEK
oa Nor open

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER IOR BACK), NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THE LIGHTNING FLASH WlTH ARROWHEAD SYMBOL,
A WITHIN AN EOUILATERAL TRIANGLE, IS INTENDED TO
ALERT THE USER TO THE PRESENCE OF UNINSULATED
"DANGEROUS VOLTAGE" WITHIN THE PRODUCTS EN-
CLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO
CONSTITUTE A RISK OF ELECTRIC SHOCKTO PERSONS.

THE EXCLAMATION POINTWITHINAN EOUILATERALTRI-
ANGLE IS INTENDED TO ALERT THE USER TO THE PRES-
ENCE OF IMPORTANT OPERATING AND MAINTENANCE
ISERVICING) INSTRUCTIONS INTHE LITERATUREACCOM-
PANYING THE APPLIANCE.

A Caution : Read this page carefully to ensure safe
operation.

How to use this manual

This manual is divided into four sections. Preparations. Operations,
Remote Control, and Additional lniormation,

Preparations

Shows you how to connect your audio and video components to the
receiver and prepare the surround processor.

Since this receiver works with all your audio and video components, we
will guide you in setting up your system to be as easy as possible.

Operations

Shows you how to operate the various functions available on the
receiver.

Remote Control

Shows you how to operate other components using the remote control,
as well as a detailed explanation of all remote control operations, Once
you have registered yourcomponents With the propersetup codes, you'll
be able to operate both this receiver and your other AV components ITV,
VCR, DVD player, CD player, etc.I using the remote control supplied With
this receiver.

Additional Information

Shows you additional information such as "In case of difficulty" (trouble-
shooting) and Specifications".

Memory back up function

Please note that the following items WlIl be deleted from the units
memory if the power cord is disconnected from the AC outlet for
approximately I day.

I Power mode.
I Input selector settings,
I Picture output.

I Bass peak level.

I Input mode setting.

I Midnight mode setting.
I Speaker ON/OFF. I PRO LOGIC ll mode setting.
IVolume level. I CS ll mode setting.

I BASS, TREBLE, INPUT level. I Broadcast band.

I TONE ON/OFF, I Frequency setting.

I LOUDNESS ON/OFF. I Preset stations.

I Dimmer level. I Tuning mode.

I MD/TAPE settings. I THX mode.

I Listen mode setting, I DSP mode.

I Speaker settings. I ACTIVE E0 mode,

I SW RE-MIX ON/OFF. I SPEAKER EQ mode.

I Distance setting.
