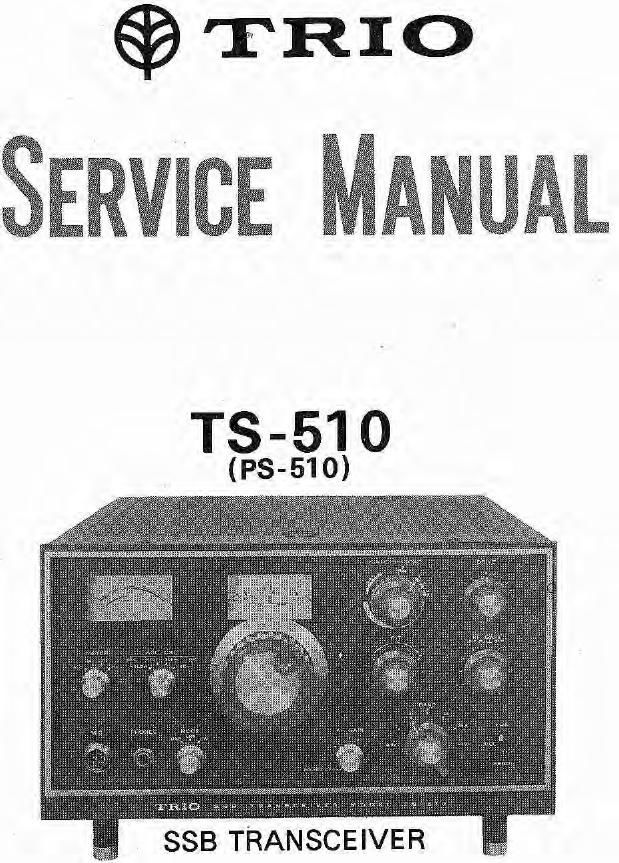

SSB TRANSCEIVER
PARTS DESCRIPTION LIST
I MAIN CHASSIS (LB-6d) SECTION
PRINTED CIRCUIT
- DIODE S.W. BLOCK lUC1209JI
~- COIL PACK 0 BLOCK (UC1111J)
- COIL PACK C BLOCK (UC1110J)
-- COIL PACK 3 BLOCK IUC1109J)
- COIL PACK A BLOCK (UC1108JI
- FINAL. UNIT BLOCK lUC1404J)
- IF UNIT BLOCK lUC1204Jl
- RF UNIT BLOCK IUC1112JI
- VFO BLOCK lUC0116J1I
- BM UNIT BLOCK {UC1501JI
- CARRIER BLOCK {UC1405JI
- MARKER UNIT BLOCK [U01502Jl
- AF UNIT BLOCK (UC1304JI
Symbol No. Description Part No. Remarks
CAPACITORS
C1 Ceramic 0.01141: +100%, r0%
C3 Ceramic 0001 HP +100%, -- 0%
C4 Ceramic 0.01 11F +100%, -0%
05~8 Ceramic 500PF +100%, -0%
C9 Ceramic 0.0111F +100%, -0%
C10 Mica 800PF i10%
Cl 1 Mica 150PF i10%
012,13 Ceramic 0.01 11F l1009é, -0°/o
C14_15 Ceramic 0.001l1F +100%, -0%
C16 Mica 250PF 125%
C17 Ceramic 0.01 uF +100%, -0%
C18 Ceramic 0.01pF j520%
C20~ 23 Ceramic 0.01 11F +100%, -0%
024 Oil lmpregnated Paper 0.0luF i20%
C25 Ceramic 0.01pF 4100%, -0}":
C26 Electrolytic Tubular 47oF 25WV
RESISTORS
R5 Metallic Oxide Film Composition 4.7km i596 7W
R6 Fixed Carbon Composition 100k9. 140% IIZW
R7,3 Carbon Composition 1MB 15% 1W
R9 Carbon Composition 10k£2 i596 1W
R10 i Fixed Carbon Composition <0 i109!) 1/2W .
R11 ' Fixed Carbon Composition 1M9 i10% 112w 5
R12 Fixed Carbon Composition 2.2m i10% 112w '
R13 Metallic Oxide Film Composition 15m i593 3w
Fl14 Fixed Carbon Composition 100k.Q i10% 112W
POTENTIOMETERS
VRI SOOkQ (BI VOX GAIN I ROM-0422
vaz 1M9 (Bl MIC GAIN R01-0423
VR3 10m (Cl FIF GAIN [with S.W.l R01«1123
VR4 SOOkQ IAI AF GAIN [with S.W.I ROI-1124
VR5 3MSZ IBI TIME CONST. ROI-0424
V R6 ERR IBI BIAS R01-0420
VFW ; 5k$2 {Bi 8. ZERO ADJ. R01-0420
we 5 5m lei RIT 1201-0425
VR9 . 500kQ IBI ANTI. ROI-0422
vmo ' ioko {a} as: METER ADJ. ROI-0421
COWS/TRANSFORMER
L1 Output Coil [AI L13-136
L2 Output Coil [BI L13-14?
L3 Choke Coil L20-1026
L4,5 Parasitic Filter L18-26
