Extracted text from Kenwood TK 8180 Service Manual (Ocr-read)

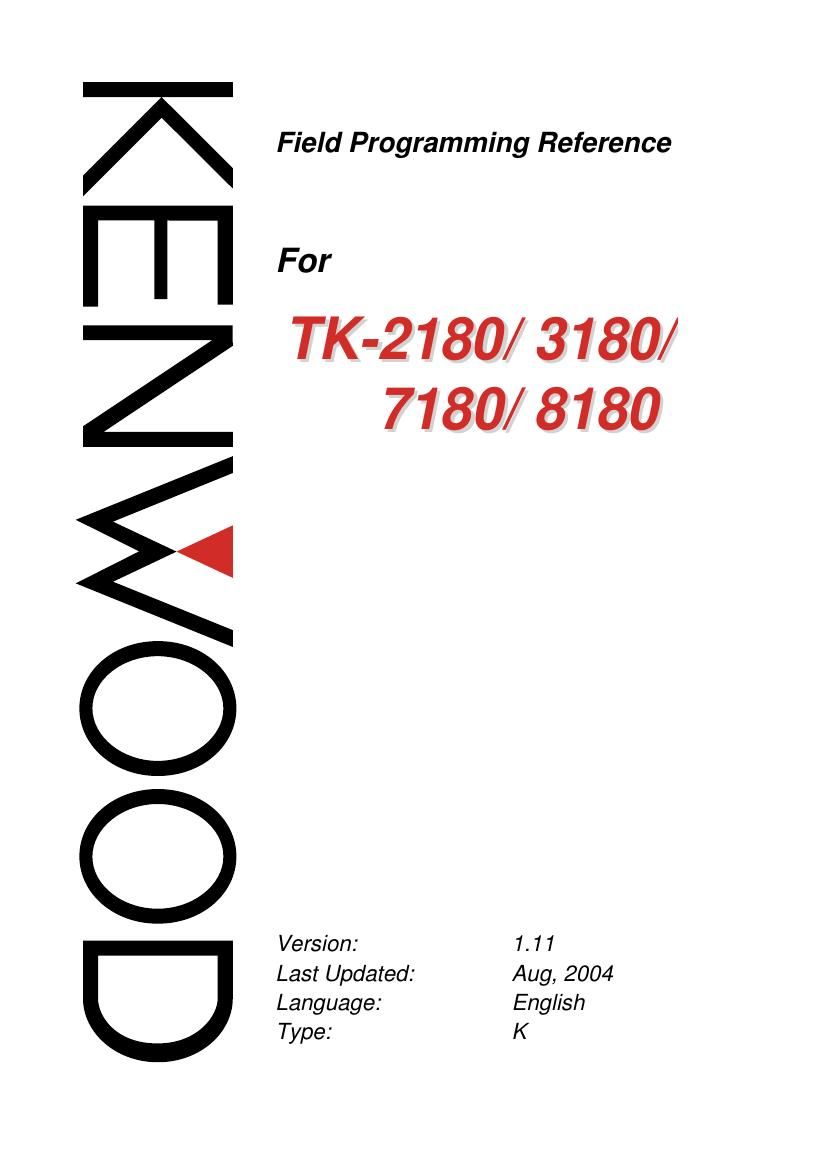

Page 1
Page 2
I
1.
CONTENTS
1 SETTING UP THE KPG-89D ...................... 1
1.1 System Requirements..................................... 1
1.2 Connecting the Transceiver to the PC ............ 1
1.3 Installing the KPG-89D ................................... 1
1.4 Uninstalling the KPG-89D ............................... 2
2 BASIC OPERATION................................... 3
2.1 Starting and Exiting the KPG-89D .................. 3
2.2 Initializing the Window .................................... 3
2.3 Writing the Configuration Data to the Transceiv-
er ....................................................................... 3
2.4 Modifying the Configuration Data.................... 3
2.5 Editing the Configuration Data and Writing to
the Transceiver ................................................. 3
2.6 Displaying Help ............................................... 4
3 MENU DESCRPTION ................................. 5
3.1 Main Window .................................................. 5
3.1.1 Title Bar ....................................................... 5
3.1.2 Menu Bar ..................................................... 5
3.1.3 Toolbar......................................................... 5
3.1.4 Status Bar .................................................... 6
3.2 Menu Command Description .......................... 6
3.2.1 File Menu ..................................................... 6
3.2.2 Model Menu ................................................. 6
3.2.3 Edit Menu..................................................... 7
3.2.4 Program Menu ............................................. 7
3.2.5 Tools Menu .................................................. 7
3.2.6 Setup Menu ................................................. 8
3.2.7 View Menu ................................................... 8
3.2.8 Window Menu .............................................. 8
3.2.9 Help Menu ................................................... 8
3.3 Shortcut Keys.................................................. 9
3.3.1 Menu Bar Operation .................................... 9
3.3.2 File Menu Operation .................................... 9
3.3.3 Zone Information (Conventional Group) Win-
dow .................................................................. 9
3.3.4 Zone Information (Trunking System) Window
9
3.3.5 Program Menu ........................................... 10
3.3.6 Help Menu1 ................................................. 0
4 FILE MENU ............................................... 11
4.1 New ............................................................... 11
4.2 Open ............................................................. 11
4.3 Save .............................................................. 12
4.4 Save As......................................................... 12
4.5 Print............................................................... 13
4.5.1 Print List Item ............................................. 13
4.6 Print Preview ................................................. 16
4.6.1 Toolbar in the Print Preview....................... 16
4.7 Exit ................................................................ 17
5 MODEL MENU ......................................... 18
5.1 Model Information ......................................... 18
5.1.1 Model Name .............................................. 18
5.1.2 Frequency .................................................. 18
6 EDIT MENU .............................................. 19
6.1 Zone Information Window ............................. 19
6.1.1 Common to Conventional Group/Trunking
System .......................................................... 19
6.1.2 Conventional Group ................................... 19
6.1.3 Trunking System ........................................ 23
6.2 Zone Edit Window (Conventional Group) ..... 25
6.2.1 Zone Name ................................................ 25
6.2.2 Data Zone-CH/GID .................................... 26
6.2.3 Home Channel ........................................... 26
6.2.4 Home Channel Operator Selectable .......... 26
6.2.5 Optional Signaling Decode Condition ........ 26
6.2.6 Audio Control ............................................. 26
6.2.7 Time-out Timer (TOT) ................................ 27
6.2.8 TOT Pre-alert ............................................. 27
6.2.9 TOT Rekey Time ....................................... 27
6.2.10 TOT Reset Time ...................................... 27
6.2.11 BCL Override........................................... 28
6.2.12 Zone Add ................................................. 28
6.2.13 Scan List.................................................. 28
6.2.14 Table Button ............................................ 28
6.2.15 Scan List Table Window .......................... 28
6.3 Channel Edit Window.................................... 28
6.3.1 Zone (Conventional Group) ....................... 29
6.3.2 Channel ..................................................... 29
6.3.3 Receive Frequency .................................... 29
6.3.4 Transmit Frequency ................................... 29
6.3.5 QT/DQT Dec (Decode) .............................. 30
6.3.6 QT/DQT Enc (Encode) .............................. 30
6.3.7 Channel Name ........................................... 30
6.3.8 Transmit Power.......................................... 30
6.3.9 Wide/ Narrow ............................................. 31
6.3.10 Optional Signaling ................................... 31
6.3.11 Busy Channel Lockout ........................... 31
6.3.12 PTT ID ..................................................... 31
6.3.13 Beat Shift ................................................. 32
6.3.14 Scan Add ................................................. 32
6.3.15 Compander.............................................. 32
6.3.16 Data ......................................................... 32
6.3.17 Voice Scrambler ...................................... 33
6.3.18 Scrambler Code ...................................... 33
6.3.19 Channel Copy ([Shift] + [F3])................... 33
6.3.20 Frequency Copy ([Shift] + [F4]) ............... 33
6.3.21 QT/DQT Copy ([Shift] + [F5]) .................. 34
6.4 Repeater Information Window ...................... 34
6.4.1 Area Code.................................................. 34
6.4.2 Home Repeater ......................................... 35
6.4.3 Receive Frequency .................................... 35
Page 43
6 EDIT MENU
38Field Programming Reference Version: 1.11
Note:
!A maximum of 3-digit numbers can be entered.
!When a value outside of the available range is entered, it is
replaced with the upper limit value or lower limit value of the
range.
!When the entire content of the edit box is deleted, the lower limit
value will be configured.
!A value less than 15 seconds is discarded.
6.5.10 Audio Control
Configure the conditions for deactivating mute in
conjunction with LTR ID and Optional Signaling. Select
the desired Audio Control option from the pulldown menu.
(Refer to FUNC 18.3 Signaling (Audio Control).)
6.5.11 Encode Data Type
Configure whether or not to invert the logic of the LTR
Message to send. Select the desired Encode Data Type
from the pulldown menu. (Refer to FUNC 17.1.1 Encode
Data Type.)
6.5.12 Zone Add
Configure whether or not the transceiver scans the
current zone during the scan.
Note: Zone Add cannot be enabled when an item other than
Multi is currently selected in the Scan Information window
> the Scan Type pulldown menu.
6.5.13 Scan List
Configure whether or not the transceiver scans the
current zone during the list scan. Also configure Scan
List Table for the list scan. (Refer to 6.5.25 Scan List
Table Window.)
Note: Scan List cannot be enabled when an item other than List
is currently selected in the Scan Information window > the
Scan Type pulldown menu.
6.5.14 Table Button
Click Table to open the Scan List Table window. (Refer
to 6.5.25 Scan List Table Window.)
Note:Table can be clicked only when the Scan List checkbox is
checked.
6.5.15 Auto Telephone Search
Configure whether or not to search for the current zone
during the Auto Telephone Search. The Auto Telephone
Search function automatically searches for and connects
a connectable repeater. (Refer to FUNC 17.1.14 Auto
Telephone Search.)
Note:Even in Zones that are not checked in the Auto Telephone
Search checkbox, that Zone is searched when an Auto
Telephone Search is executed from that Zone.
RangeLT R I DDeactivates mute when LTR ID
matches. Mute canceling conditions
remain unchanged even if the
transceiver transmits.
LTR ID and
Optional
SignalingUnmuting, Call Alert Tone, Call Alert
display, and Transpond operation
are activated when Optional
Signaling matches LTR ID.
Once the configured Optional
Signaling is detected, it retains the
status until it is reset. After the
configured Optional Signaling is
detected, the transceiver unmutes if
the same LTR ID is detected. When
the transceiver transmits, it enters
Monitor Mode, and Optional
Signaling is disabled. For this
reason, mute is deactivated by LTR
ID after transmission ends.
DefaultLT R I D
RangeNormalDoes not invert the logic of the LTR
Message.
InvertInverts the logic of the LTR
Message.
DefaultInvert
RangeCheck (Enable) Performs scanning.
Uncheck (Disable)Does not perform
scanning.
DefaultChecked (Enabled)
RangeCheck (Enable) Performs a list scan.
Uncheck (Disable) Does not perform a list scan.
DefaultUnchecked (Disabled)
RangeCheck (Enable)Performs a search when
an Auto Telephone
Search is executed.
Uncheck (Disable)Does not perform a
search when an Auto
Telephone Search is
executed.
DefaultUnchecked (Disabled)
Page 61
6 EDIT MENU
56Field Programming Reference Version: 1.11
" VOX Gain Level (TK-2180/ 3180 only)
Configure the microphone sensitivity when the VOX
function is in use. Enter a value directly in the edit box
or click the spin button to configure the VOX Gain
Level. (Refer to FUNC 28.1.1 VOX Gain Level.)
Note:
!A maximum of 2-digit numbers can be entered.
!When the entire content of the edit box is deleted, 1 will be
configured.
!When a value outside of the available range is entered, it is
replaced with the upper limit value or lower limit value of the
range.
" VOX Delay Time (TK-2180/ 3180 only)
Configure the time that the transceiver holds
transmission after the VOX function is used for
transmission. This item is used to continue the
transmission without interrupting. (Refer to FUNC
28.1.2 VOX Delay Time.)
Select the desired VOX Delay Time from the pulldown
menu.
" Cancel Operation (TK-2180/ 3180 only)
Configure Cancel Operation. The Cancel Operation
function disables the VOX function when the PTT
switch is pressed while the VOX function is enabled.
(Refer to FUNC 28.1.4 Cancel Operation.)
" VOX Proceed Tone (TK-2180/ 3180 only)
Configure whether or not to emit a tone to notify the
start of transmission to a user when the VOX function
is used for a transmission. (Refer to FUNC 28.1.5
VOX Proceed Tone.)
" TX Inhibit while Receiving
(TK-2180/ 3180 only)
Configure whether or not to transmit using the VOX
function while the speaker does not mute. (Refer to
FUNC 28.1.3 TX Inhibit while Receiving.)
" PTT Proceed Tone (Conventional)
Configure whether or not to emit the PTT Proceed
Tone when the transceiver is ready for conversation
after the PTT switch is pressed. (Refer to FUNC 4.9
PTT Proceed Tone.)
" Proceed Tone Delay Time (Conventional)
Configure the time that the PTT Proceed Tone sounds
from the speaker. This item is used to restrict the start
of the transmission from the transmitter being cut off
on the receiver. (Refer to FUNC 4.10 Proceed Tone
Delay Time.)
Enter a value for Proceed Tone Delay Time directly in
the edit box or click the spin button to configure the
Proceed Tone Delay Time.
Range1 - 10
Step1
Default5
Range0.3/ 0.5/ 1.0/ 1.5/ 2.0/ 3.0 s
Default0.5 s
RangeCheck (Enable)Disables the VOX function
when the PTT switch is
pressed.
Uncheck (Disable)Does not disable the VOX
function when the PTT
switch is pressed.
DefaultUnchecked (Disabled)
RangeCheck (Enable)Emits Proceed Tone when
transmission starts using
the VOX function.
Uncheck (Disable)Does not emit Proceed
Tone when transmission
starts using the VOX
function.
DefaultUnchecked (Disabled)
RangeCheck (Enable)VOX is not used while the
speaker is not muted.
Uncheck (Disable)VOX is used even while
the speaker is not muted.
DefaultUnchecked (Disabled)
RangeCheck (Enable)Emits the PTT Proceed
To n e .
Uncheck (Disable)Does not emit the PTT
Proceed Tone.
DefaultUnchecked (Disabled)
Range0 - 6000 ms
Step1 ms
Default0 ms
Page 97
6 EDIT MENU
92Field Programming Reference Version: 1.11
" ID Name
You can configure the callers ID name. Configure the
ID Name by directly entering value in the No. 1 to No.
100 edit boxes of ID Name or clicking the spin
buttons. (Refer to FUNC 22.2.3 ID List.)
Note:
!When the entire content of the edit box is deleted, a blank
will be configured.
!You must configure the Fleet edit box and the ID edit box
are configured before configuring the ID Name.
" TX Inhibit
You can enable and disable the transmission to the
receiving party. Select the desired TX Inhibit option
from the pulldown menu. (Refer to FUNC 22.2.3 ID
List.)
Note:You must configure the Fleet edit box and the ID edit
box before configuring the TX Inhibit function.
6.12.5 Status List Tab
This tab allows you to configure the Status to use the
Status Message function.
Figure 6-46 Status List TabTable 6-8 Reserved Status List
" Status
You can configure the Status Number. Configure the
Status Number by directly entering value in the No. 1
to No. 90 edit boxes of Status or clicking the spin
buttons. (Refer to FUNC 22.3.11 Status List.)
Note:
!Only 2-digit numbers can be entered.
!When the entire content of the edit box is deleted, all
relevant numbers will be deleted.
!When a value outside of the available range is entered, it is
replaced with the upper limit value or the lower limit value of
the range.
! You cannot configure the Status Number that is already
configured.
RangeA maximum of 12 characters
Available
Characters(space) ! # $ % & ( ) * + , - . / 0 1 2 3 4 5 6 7 8
9 : ; < = > ? @ [ ] ^ ` A B C D E F G H I J K L
M N O P Q R S T U V W X Y Z a b c d e f g h i j
k l m n o p q r s t u v w x y z { | } ~
DefaultID 001 - ID 100 (The channel number is
automatically entered.)
RangeYe sThe transmission to the caller is
restricted.
NoThe transmission to the caller is
enabled.
DefaultNo
Status FunctionOperation at the
receiving party
10 - 79 User StatusNormal Status receiving
Operation
80 Default Status
81 - 87 Undefined
88Emergency Reset
CommandThis status resets the
Emergency Status.
89Horn Alert Activation
CommandThis status activates the
Horn Alert function.
90Remote Stun
Transmission Restriction
CommandThe transceiver transmits
the ACK and restricts the
transmission. In this
case, the Current Status
is configured to 93.
91Remote Stun
Transmission and
receiving Restriction
CommandThe transceiver transmits
the ACK and restricts the
transmission. In this
case, the Current Status
is configured to 94.
92Remote Stun Reset
CommandThe transceiver transmits
the ACK and disables the
Stun function. In this
case, the Current Status
is configured to 80.
93Remote Stun
Transmission Restriction
Response-
94Remote Stun
Transmission and
receiving Restriction
Response-
95 - 99Reserved Status for
Emergency
98: Man Down Status
99: Emergency Status
other than Man DownThe transceiver transmits
the ACK/Alert/ Horn/
None
RangeBlank/ 10 - 90
In steps of1
DefaultBlank
Page 103
6 EDIT MENU
98Field Programming Reference Version: 1.11
Configure the Target Fleet (Status Message) by
directly entering value in the edit box or clicking the
spin buttons.
Note:
!A maximum of 3-digit numbers and . can be entered.
!When entire content of the edit box is deleted, a blank will be
configured.
!When A or 0 is entered in the edit box, ALL will be
configured.
!When a value outside of the available range is entered, it is
replaced with the upper limit value or the lower limit value of
the range.
!If the Target ID (Status Message) edit box is a blank when
the value is entered, the Target ID (Status Message) edit
box will be configured to 1000.
!An error message appears when trying to write data while
one of the Target Fleet (Status Message) items is configured
to a blank.
- The General 1 tab > the Fleet (Own) edit box
- The General 1 tab > the ID (Own) edit box
" Target ID (Status Message)
You can configure the receiving partys FleetSync ID
to send the following Status Messages. (Refer to
FUNC 22.3.12 Destination Fleet/ ID (Status
Message).)
- Status Message transmission using the AUX IN
terminal
- Power-on Status Message transmission
- Power-off Status Message transmission
- Status Message transmission using the PF and PF
CALL keys
Configure the Target ID (Status Message) by directly
entering value in the edit box or clicking the spin
buttons.
Note:
!Only 4-digit numbers and . can be entered.
!When entire content of the edit box is deleted, a blank will be
configured.
!When A or 0 is entered in the edit box, ALL will be
configured.
!When a value outside of the available range is entered, it is
replaced with the upper limit value or the lower limit value of
the range.
!If the Target Fleet (Status Message) edit box is blank when
the value is entered, the Target Fleet (Status Message)
edit box will be configured to 100.!The error message appears when trying to write data while
one of the Target ID (Status Message) items is configured to
a blank.
- The General 1 tab > the Fleet (Own) edit box
- The General 1 tab > the ID (Own) edit box
RangeBlank/ ALL (0)/ 100 - 349
In steps of1
DefaultBlank
RangeBlank/ ALL (0)/ 1000 - 4999
In steps of1
DefaultBlank
