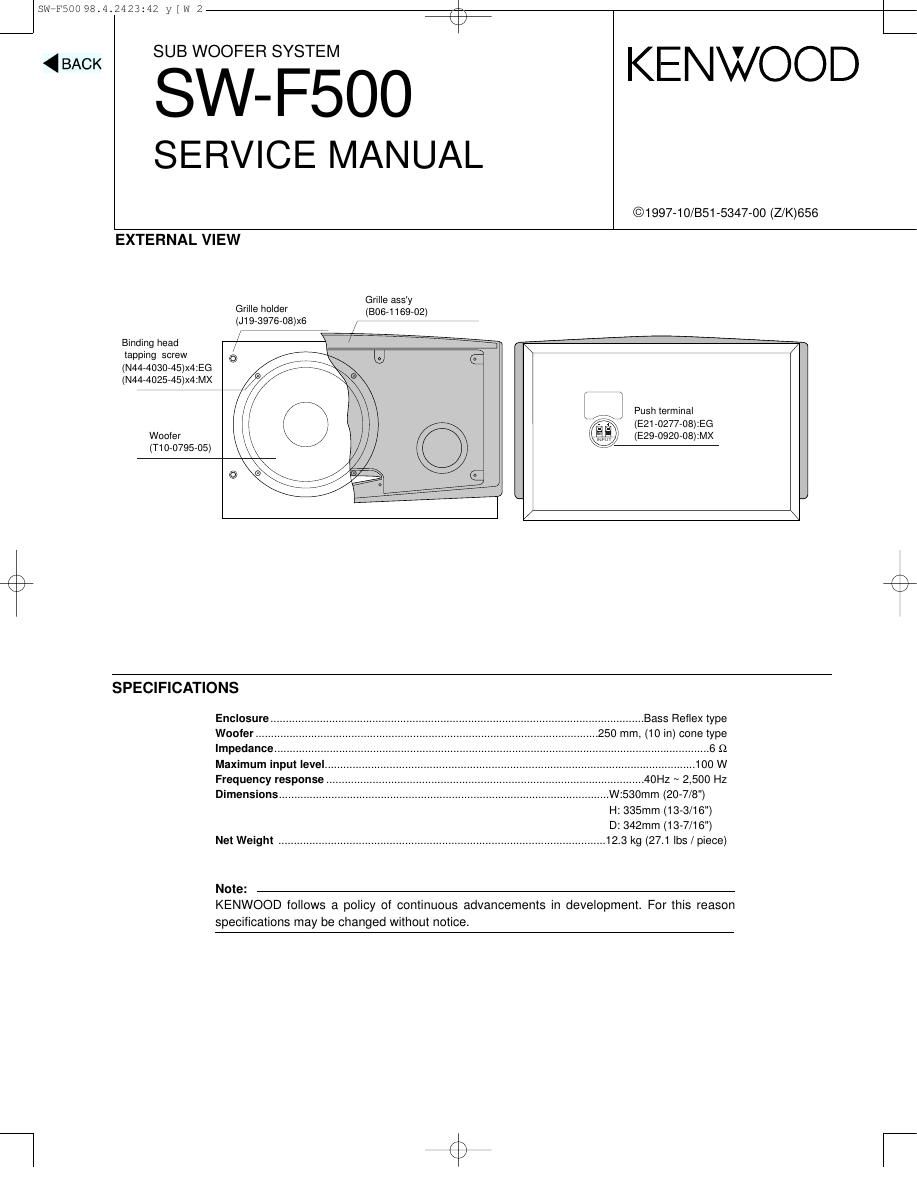

Extracted text from Kenwood SWF 500 Service Manual (Ocr-read)
Page 1
- B06-1169-02 GRILLE ASSY
- B46-0310-03 WARRANTY CARD
- * B61-0915-00 INSTRUCTION MANUAL
- * E21-0277-08 PUSH TERMINAL
- * E30-5421-08 SPEAKER CORD
- * H10-6480-08 POLYSTYRENE FOAMED FIXTURE
- * H10-6481-08 POLYSTYRENE FOAMED FIXTURE
- * H21-1281-08 PROTECTION SHEET
- * H51-1042-08 ITEM CARTON CASE
- J19-3976-08 GRILLE HOLDER
SP1 * T10-0795-05 WOOFER
Y19-402
- * B06-1169-02 GRILLE ASSY
- B46-0096-53 WARRANTY CARD X
- * B61-0908-00 INSTRUCTION MANUAL
- E29-0920-08 PUSH TERMINAL
- * E30-5406-08 SPEAKER CORD
- * H10-6459-08 POLYSTYRENE FOAMED FIXTURE
- * H10-6460-08 POLYSTYRENE FOAMED FIXTURE
- * H21-1272-08 PROTECTION SHEET
- * H51-0993-08 ITEM CARTON CASE
- J19-3976-08 GRILLE HOLDER
SP1 * T10-0795-05 WOOFER
SW-F500
NETWORK UNIT/PARTS LIST
PARTS LIST
Ref. No. Address
NewParts
Parts No. DescriptionDesti-
nation
Re-
marks
*New Parts
Parts without Parts No.are not supplied.
Les articles non mentionnes dans le Parts No.ne sont pas fournis.
Teile ohne Parts No.werden nicht geliefert.L:ScandinaviaK:USAP:CanadaR:Mexico
Y:PX(Far East, Hawaii)T:EnglandE:EuropeG:Germany
Y:AAFES(Europe)X:AustraliaM:Other Areas
INPUT
SP1
RED
BLK
NETWORK UNIT
indicates safety critical components.
SW-F500: EG Type SW-F500: MX Type
2
SW-F500 98.4.24 23:42 y[W 1
