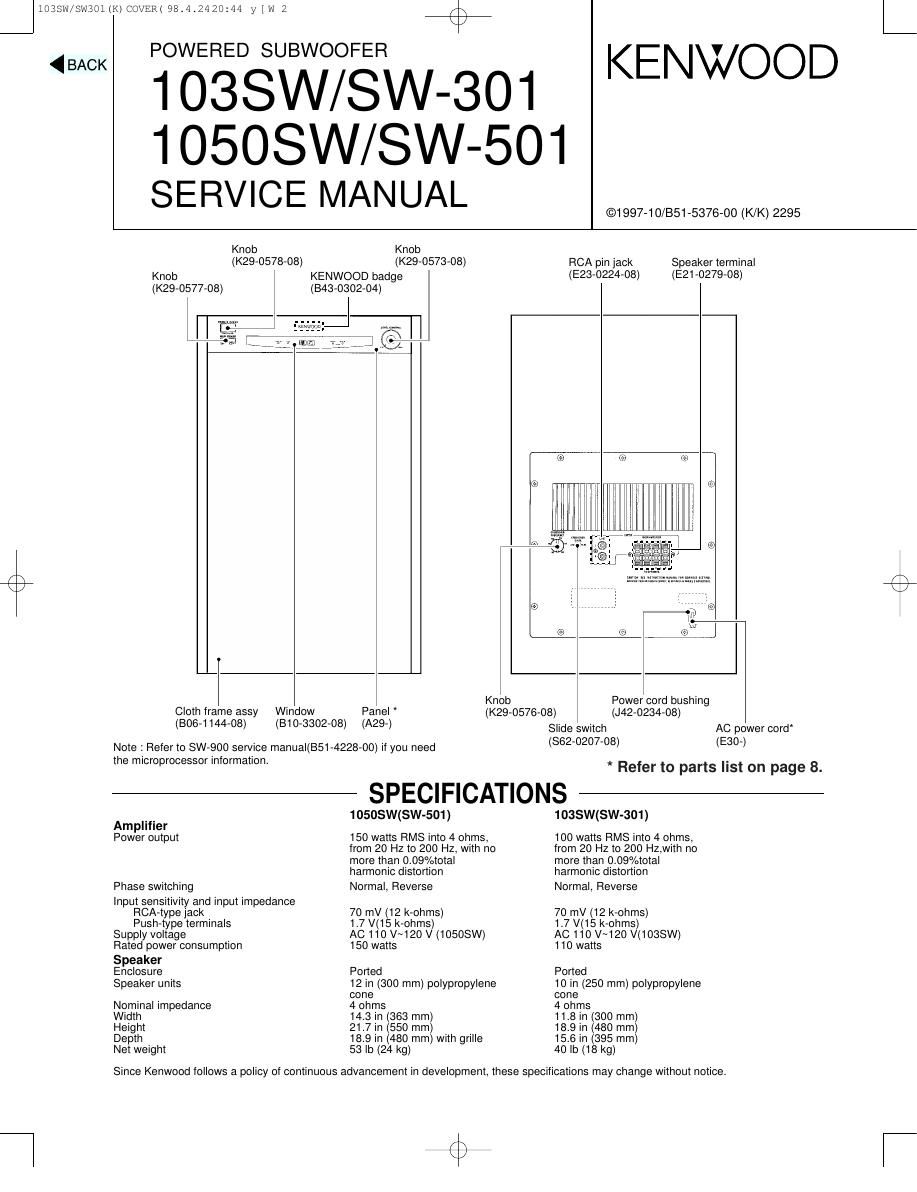

J lOBSW/SW301IK)COVER( 98i4i242o;44 y [w 3 46%
I038W/SW-301/I0508W/SW-501
CONTENTS/DISASSEMBLY FOR REPAIR/ADJUSTMENT
Contents
SPECIFICATIONS ........................................ Top. cover PC BOARD ................................................................ 3
CONTENTS ............................. .. 2 SCHEMATIC DIAGRAM
DISASSEMBLY FOR REPAIR. EXPLODED VIEW
ADJUSTMENT ......................... PARTS LIST .............
DISASSEMBLY FOR REPAIR
< How to remove the front panel >
1. Remove the decoration plate ((1)) by a pincette to the bottom of
the front panel, then remove the 3 screws ((2)).
2. 103$W/SW-301: Remove the front panel in the upper slanting
direction of the arrow ((3)).
IOEOSW/SW-SOI : Remove the front panel just the frontwards.
ADJUSTMENT
INPUT OUTPUT AMPLIFIER ALIGNMENT
0' ITEM SETTINGS SETTINGS SETTINGS POINTS ALIGN FOR FIG'
Unless otherwise specified, the individual switches should be set as following :
POWER : ON NO SIGNAL INPUT
Connect a DC
1 IDLE CURRENT - voltmeter to VOLUME :0 VR601 5 mV (61)
R611
(a)
Do voltmeter
5 mV
