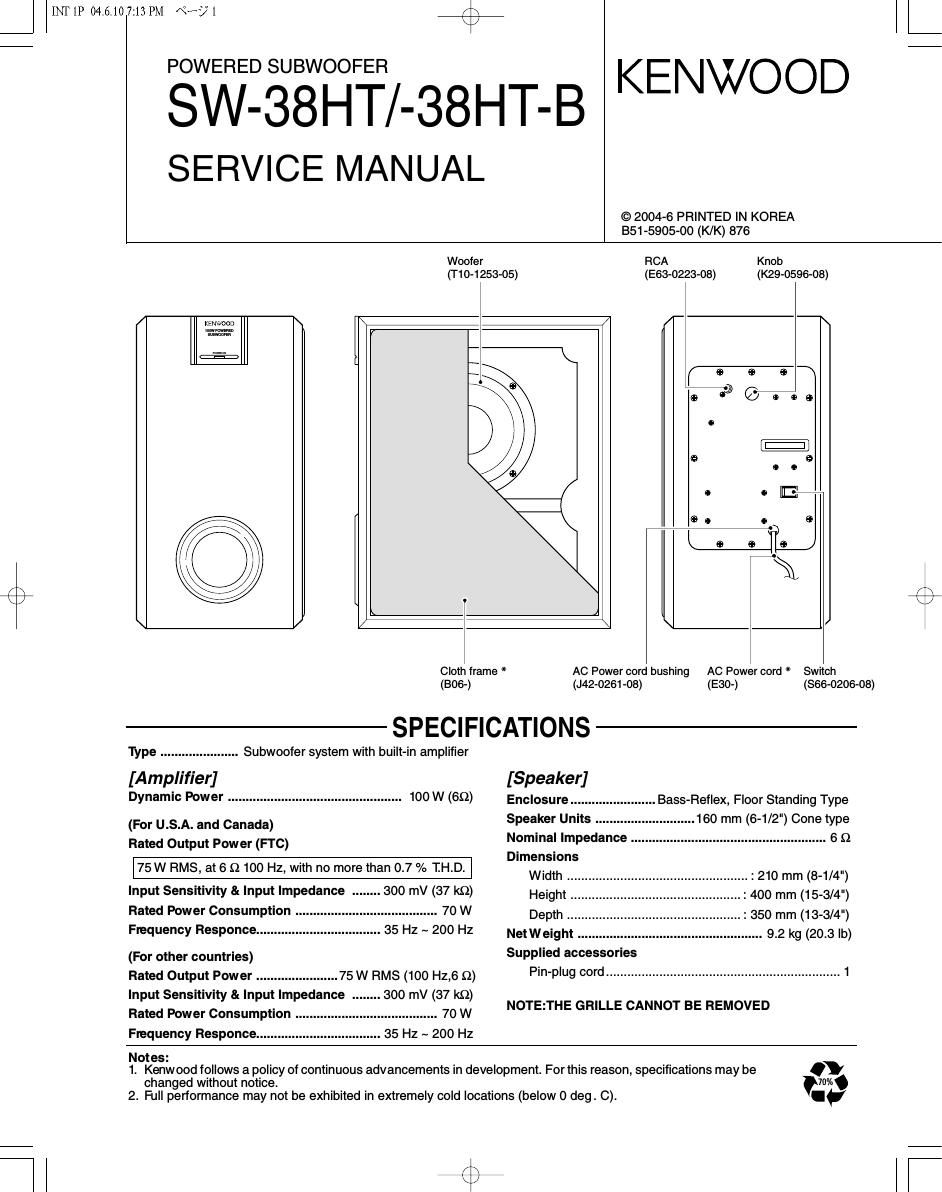

Page 1
INI 1P 04.6.107:13 PM \°*/1 /\
K
PsOVIIIiféugvfiFEf/aaHT-B KENWOOD
SERVICE MANUAL
© 2004-6 PRINTED IN KOREA
351-5905-00 (K/K) 876
Woofer RCA Knob
(T10-1253-05) (E63-0223-08) (K29-0596-08)
KFNWODIJ -
a.
x \ r
K / K
Cloth frame * AC Power cord bushing AC Power cord * Switch
(806-) (J42-0261-08) (E30-) (see-ozoe-oa)
SPECIFICATIONS
Type .. Subwoofer system with built-in amplifier
[Amplifier] [Speaker]
Dynamic POWEI - 100 W (59) Enclosure ..... Bass-Reflex, Floor Standing Type
(For U.$.A. and Canada) Speaker Units . ........... 160 mm (6-1/2") Cone type
Rated Output Power (FTC) Nominal Impedance ....................................................... 6 9
I75 w FIMS at 6 Q 100 H 'th no more than 0 7 °/ TH D | Dimensms
' Z W' ' ° ' ' Width ................................................... : 210 mm (8-1/4")
Input Sensitivity & Input Impedance - 300 mV (37 k9) Height ................................................ : 400 mm (15-3/4")
Rated Power Consumption ................................. 70 W Depth __ - 350 mm (13.3/4")
Frequency Responce ................................... 35 Hz ~ 200 Hz NetWeight 9.2 kg (20.3 lb)
(For other countries) SUPPIIEd accessories
Rated Output Power _______________________ 75 W RMS (100 Hz,6 Q) Pin-plug cord .................................................................. 1
Input Sensitivity & Input Impedance . 300 mV (37 k9)
NOTE:THE GRILLE CANNOT BE REMOVED
Rated Power Consumption ................................. 70 W
Frequency Responce ................................... 35 Hz ~ 200 Hz
Notes:
1. Kenwood follows a policy of continuous advancements in development. For this reason, specifications may be .
changed without notice. 70%
2. Full performance may not be exhibited in extremely cold locations (below 0 deg. C).
TI ¢ IE
Page 2
INI 1P 04.610713 PM «522 /\
SW-38HT
ACCESSORIES
Accessories
Pin-plug cord (1) AC plug adapter(1)
(E30-7068-05) (an-ozeo-os)
g?
How to Replace Woofer
Cut the Cloth of cloth frame assy and replace it with new one after mount the speaker.
