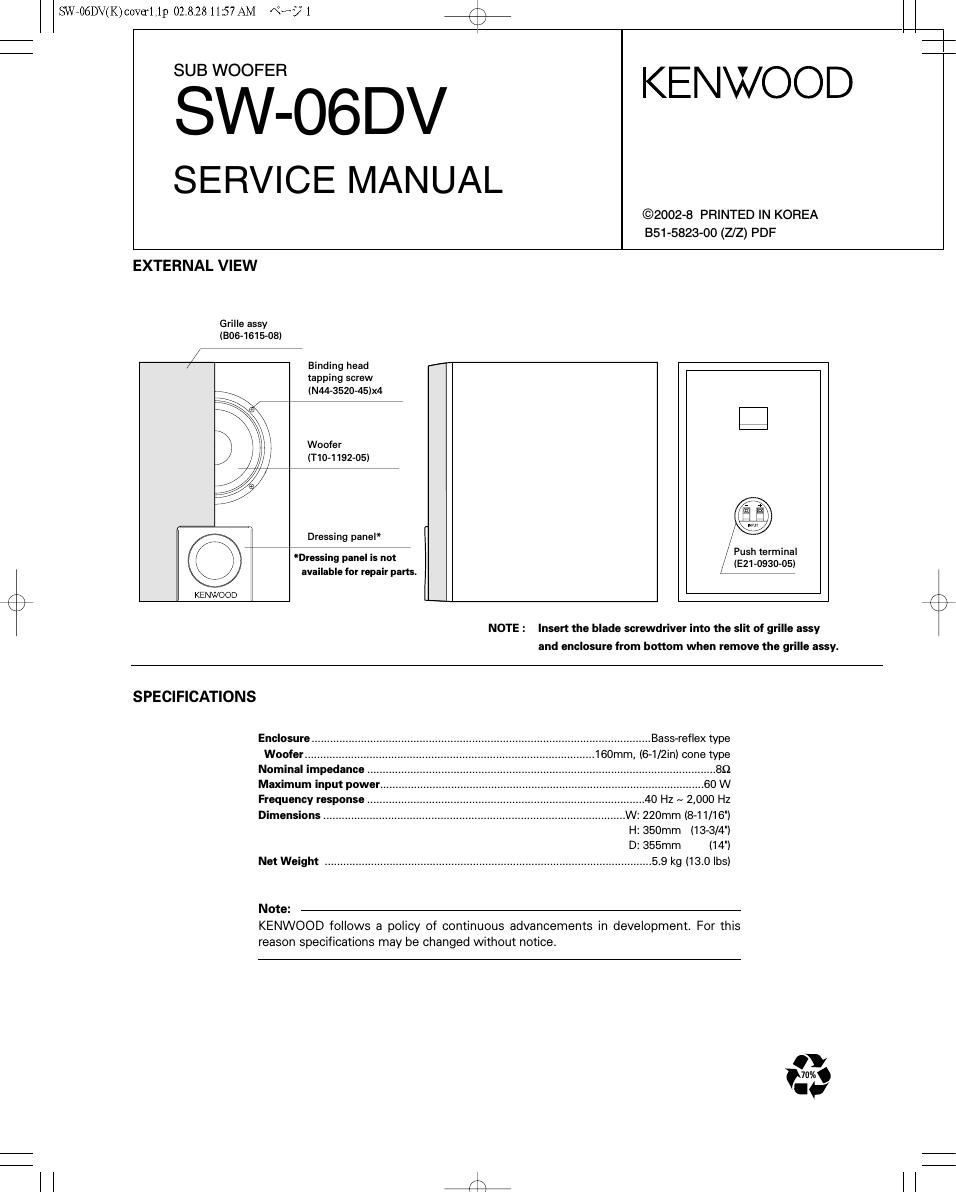

Page 1
r\
\J
SW706DV(K)coVal,lp 02.8.28 11:57 AM \°-/° 1 /\
SUB WOOFER
SW-O6DV
SERVICE MANUAL
KENWOOD
©2002-8 PRINTED IN KOREA
851-5823-00 (Z/Z) PDF
EXTERNAL VIEW
Grille assy
(3067161
5-08)
Binding head
tapping screw
IN44-3520»45)x4
Woofer
ITI 0-1 192-05)
Dressing panel*
*Dressing panel is not
available for repair parts.
[I Push terminal
, (EZ1-0930-05I
NOTE : Insert the blade screwdriver into the slit of grille assy
and enclosure from bottom when remove the grille assy.
SPECIFICATIONS
Enclosure. ................. Bass-reflex type
Woofer 60mm, (B-l/Zin) cone type
Nominal impedance .89
Maximum input power 60 W
Frequency response 0 Hz ~ 2,000 Hz
Dimensions .................................................................................................. W: 220mm (8-1 i/16")
H: 350mm (13-3/4")
D: 355mm (14")
Net Weight .......................................................................................................... 5.9 kg (13.0 lbs)
Note:
KENWOOD follows a policy of continuous advancements in development. For this
reason specifications may be changed without notice.
Page 2
SW706DV(K)coVal,lp 02.8.28 11:57 AM \°-/°2 /\
SW-OGDV
DIVIDING NETWORK UNIT/PARTS LIST
DIVIDING NETWORK UNIT
RED
INPUT SPI
- 0-]?
PARTS LIST
* New Parts
Parts without Parts No. are not supplied.
C) Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No: werden nicht geliefert.
Rel. No. Address New Parts No. Description Desti- Re-
Pans nation marks
SW-06DV
» BOB-161508 GRILLE ASSY
» EZI-0930-05 PUSH TERMINAL
» GI3-I14I-08 CUSHION
» HID-829908 POLYSTYRENE FOAMED FIXTURE
» HI 0-8300-08 POLYSTYRENE FOAMED FIXTURE
- H25-2535-08 PROTECTION BAG
» * H51-I872-08 ITEM CARTON CASE
SP1 * T104 192-05 WOOFER
L: Scandinavia K: USA P: Canada R: Mexico 0: China I: Malaysia
V: PXlFor East Hawaii) T: England E: Europe G: Germany V: ChmalShanghail
V: AAFESlEuropel X: Australia 0: Russia H: Korea M: Other Areas A indicates safety critical components,
