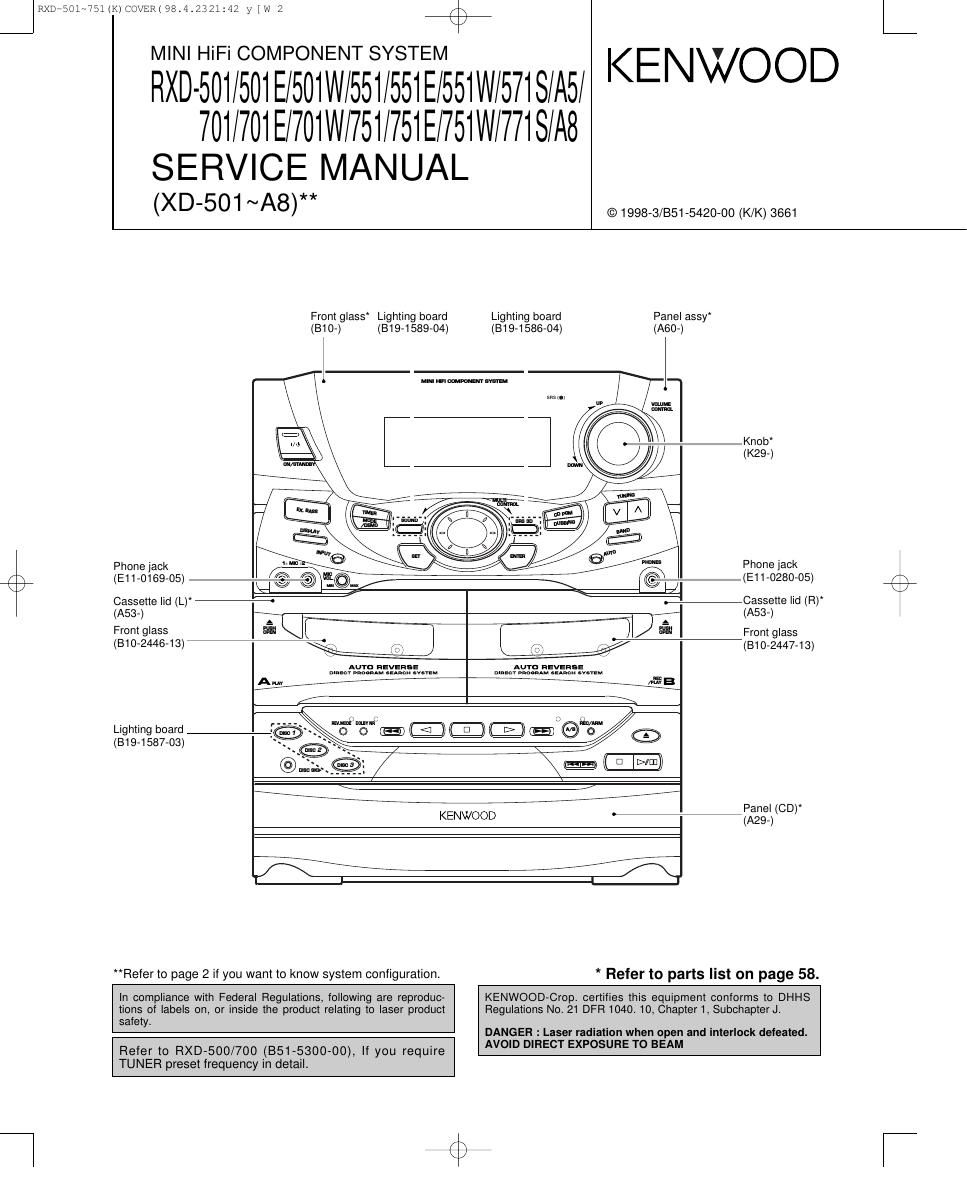

RXDE501~751(K)COVER(98t4t23le42 y [w 2 if

MINI HiFi COMPONENT SYSTEM

RXD-501/501E/501W/551/551E/551W/5718/A5/ KENWOOD
701/701 E/701W/751/751E/751W/7718/A8

SERVICE MANUAL
(XD-501~A8)**

© 1998-3/351-5420-00 (K/K) 3661

L

From glass Lighting board
(810-) (B19-1589-04)

Lighting board
(B19-1586-04) (A60-)

MINI in cnmzm 5mm

Phone jack 1 I
O (E11-0169-05) lK-l w @ (EON
Cassette lid (L)

5.5 (m

(A53-)

Front glass
(310-2445-13)

AUTO REVERSE

Amy

AUTO REVERSE

Lighting board
(B19-1587-03)

a

KENWOOD

"Refer to page 2 if you want to know system configuration.

Panel assy

Knob
(K29-)

Phone jack
(E11-0280-05)

Cassette lid (RV
(A53-)

From glass
(310-2447-13)

Panel (CD)
(A29-)

* Refer to parts list on page 58.

In compliance with Federal Regulations, following are reproduc-
tions of labels on, or inside the product relating to laser product
safety.

Refer to RXD-500/700 (851-5300-00), If you require

KENWOOD-Cropt certifies this equipment conforms to DHHS
Regulations No. 21 DFR 1040. 10, Chapter 1, Subchapter J.

DANGER : Laser radiation when open and interlock defeated.
AVOID DIRECT EXPOSURE TO BEAM

TUNER preset frequency in detail.

Page 55

1M

%

9 M] 4 ZI75TZEZ'T7'86 )HEIAODIXITSLfiOSaGXH

8V/ ILL/ 191/ IOI/SV/ 119/ 199/ IOS'GXH

.I.SI'I SlHVd

* New Parts * New Parts
Parts Without Parts No. are not supphed Parts Without Parts No. are not supplied
Les articles non mentionnes dans )9 Parts No ne sont pas foumis. @ Les articles non mentionnes dans le Parts Na. ne sont pas IOUIIIIS. @
Teile Uhrie Parts No. werden nicht geliefen. TeiIe ohrie Parts No. werden nicht gelieferl,
Rei No ff; fl Pans Nu. Descriptiun fim mm; Ref. No Is; m Parts No. Desciiptiun mg mifis
155 2A J02-1133-08 INSULATOR 433 2D G01-3993-08 HERD CHASSIS SP
156 2B J11-0813-08 CLAMPER 434 1C,2C G01»3994-08 RETURN GEAR SP
157 1B J19-3758-08 BRACKET (CLAMP) 435 1C,2C G01 -3995-08 EARTH SP
158 2B J19-3660-08 BRACKET (GEAR) 436 1C G01-3996-08 INTER LOCK SP (BL)
159 2B.35 J19-3661-08 BRACKET (TRAY) 437 1C,2D G01-3997-08 INTER LOCK SP (C)
160 SB J61-0081-05 SK BINDER SKB-100 438 2E G01-3998-08 BRAKE ARM SP
161 1A J99-0541-08 TRAY (SLIDE) 439 2D G01-3999-08 INTER LOCK SP (BR)
162 1A J99-0542-08 TRAY (ROTARY) 440 1D G02-0913-08 PACK SP
163 2A J90-0844-03 GUIDE (RAIL) 441 1C,2C G02-1623-08 AZIMUTH PLATE
442 1C,2C G11-2100-08 HEAD WIRE CLAMP
L N09-2658-08 SCREW
M N09-3053-08 SCREW 443 1E J19-5929-08 CABLE HOLDER
N N09-3107-08 SCREW 444 2C E35-1819-08 HEAD WIRE
P N09-3140-08 SCREW 445 2C E35-1821-08 HEAD WIRE
O N09-3141-08 SCREW 446 2D J21 >6473-08 H/D RETURN PLATE
447 1C,2C J21 -6474-08 HEAD PLATE
165 2B S33-2061-05 LEVER SWITCH
166 1AL2A S64-0025-08 LEVER SWITCH MXS00621NLBO 450 1C,2C J31 -0877-08 ROTATOR COLLAR
167 3A S74-0065-05 LEAF SWITCH 451 1C,2C J39-0200-08 HEAD BASE
452 1C,2D J42-0183-08 REEL BUSH
171 1B T99-0544-05 MAGNET 453 2E J69-0086-08 FILAMENT TAPE
DM 3A A11-1114-08 T T CHASSIS ASSY 454 2D J90-0849-08 CASSETTE GUIDE
FM 3A T42-0872-08 FEED MOTOR ASSY
LM 3B T42-0682-08 MOTOR PULLEY ASSY 455 1C,2D D19-0270-08 REEL CAP (A)
PU 3A T25-0050-05 PICKUP (KCP1H) 473 1D,1E RD14BB2C222J RESISTOR 2.20Iim
475 1E 874-0033-08 REC SWITCH
RTM 2B T42-0683-08 MOTOR WORM ASSY 476 1E 374-0042-08 PLAY SWITCH
CASSETTE DECK MECHANISM D40 1588 08 "9 1E 20919-08 MOTOR ASSY
( ) 480 1E T94-0239-08 SOLENOID ASSY
401 1D A10-3340-08 CHASSIS 481 1E T95-0154-08 PHOTO INTERRUPTER
402 2C A10-3350-08 HEAD CHASSIS CA N09-3372-08 HEAD SCREW
403 1E A11-1119-08 MECHA BASE ASSY CB N09-1497-08 TAP TITE SCREW 2X5
404 2E D01 -0201 -08 FLYFWHEEL ASSY (R) CC N09-3384-08 TAPPING SCREW 1.7X8
405 1C D01-0202-08 FLYFWHEEL ASSY (L)
CD N09-2877-08 TAPTITE SCREW 2X4
406 2D D10-3711-08 INTER LOCK ARM (BR)B CE N09-2900-08 BIND TAPPING SCREW 2X6
407 1C D10-3712-08 INTER LOCK ARM (BL)A CF N35-2604-08 BINDING SCREW 2.6X4
408 2E D10-3717-08 TRIGGER ARM CG N09-3112-08 AZIMUTH SCREW
409 2E D10-3718-08 BRAKE ARM CH N09-3371-08 SCREW (CAM)
410 2D D13-1809-08 CAM GEAR
CJ N19-1439-08 POLY MASHER 4X7X.04CUT
411 1E D13-1810-0B IDLER GEAR (REM) CK N19-1355-08 NYLON WASHER 1.5X5X0.5
412 1D D13-1811-06 IDLER GEAR CL N19-1354-08 NYLON WASHER 2.19X5.5X0.5
413 1C,2C D13-1813-08 RETURN GEAR CM N19-1387-08 TEFRON WASHER 4.1X5.5X0.25
414 1C,2C D13-1814-08 ROTATOR CN N1B-1384-08 POLY WASHER 2.1X5X0.25
415 1C,2E D13-1812-08 REEL GEAR
CP N19-1388-08 POLY WASHER 1.57X4X0.5CUT
416 2D D14-0387-08 PINCH ASSY (R) CO N19-1385-08 POLEY WASHER 2.3X4X0.25
417 2C0 D14-0388-08 PINCH ASSY (L) CR N09-3366-08 SCREW (INTER LOCK)
418 1D D15-0400-08 PULLEY GEAR CS N19-1316-08 POLY WASHER 1.8X6X0.5CUT
419 2E D16-0716-08 DRIVE BELT CT N19-1288-08 POLY WASHER 1.57X5X0.5CUT
420 2E D16-0717-08 CLUTCH BELT (W)
CU N09-0832-08 TAPTITE SCREW 2.6)(6
421 1D D19-0306-08 CLUTCH ASSY PH 1C T31 -0077-08 POTATION HEAD
422 2C D23-0329-08 HOUSING ASSY (L) RPEH 2C T34-0352-08 ROTATION HEAD (RP) KCS142
423 2D D23-0330-08 HOUSING ASSY (R)
424 1D,1 E 530-2409-08 LED
425 1E E35-2172-08 15P FLAT RIBBON WIRE
427 1E E35-1818-08 MOTOR WIRE
429 1C,2D G01 >3709-08 B.T SPRING
430 2E G01 (599008 TRIGGER ARM SP
431 1D G01 -3991 08 CLUTCH ARM SP
432 2C G01-3992-08 HERD RETURN SP
L: Scandinavia K 2 USA P : Canada R 2 Maxim E : China I 2 MaIaysia L: Scandinavia K : USA P 2 Canada R 2 Maxim E : China IIMaIavsia
V 2 PXIFai East, Hawaii) T: Eurupe E : Europe G 2 Germany V: Chma (Shanghai) V : PXIFar East, Hawaii) T: Eurupe Europe 6 2 Germany V: ChihaIShahghaiI
V 2 AAFESIEurupe) X : AustraIia (l : Russia H 2 Kuiea M : UtherAreas V : AAFESIEurupe) X : Australia 0: Russia H 2 Kurea M : OtherAreas
A indicates safety criticai cumpunents A indicates safety critical cumpunents.
