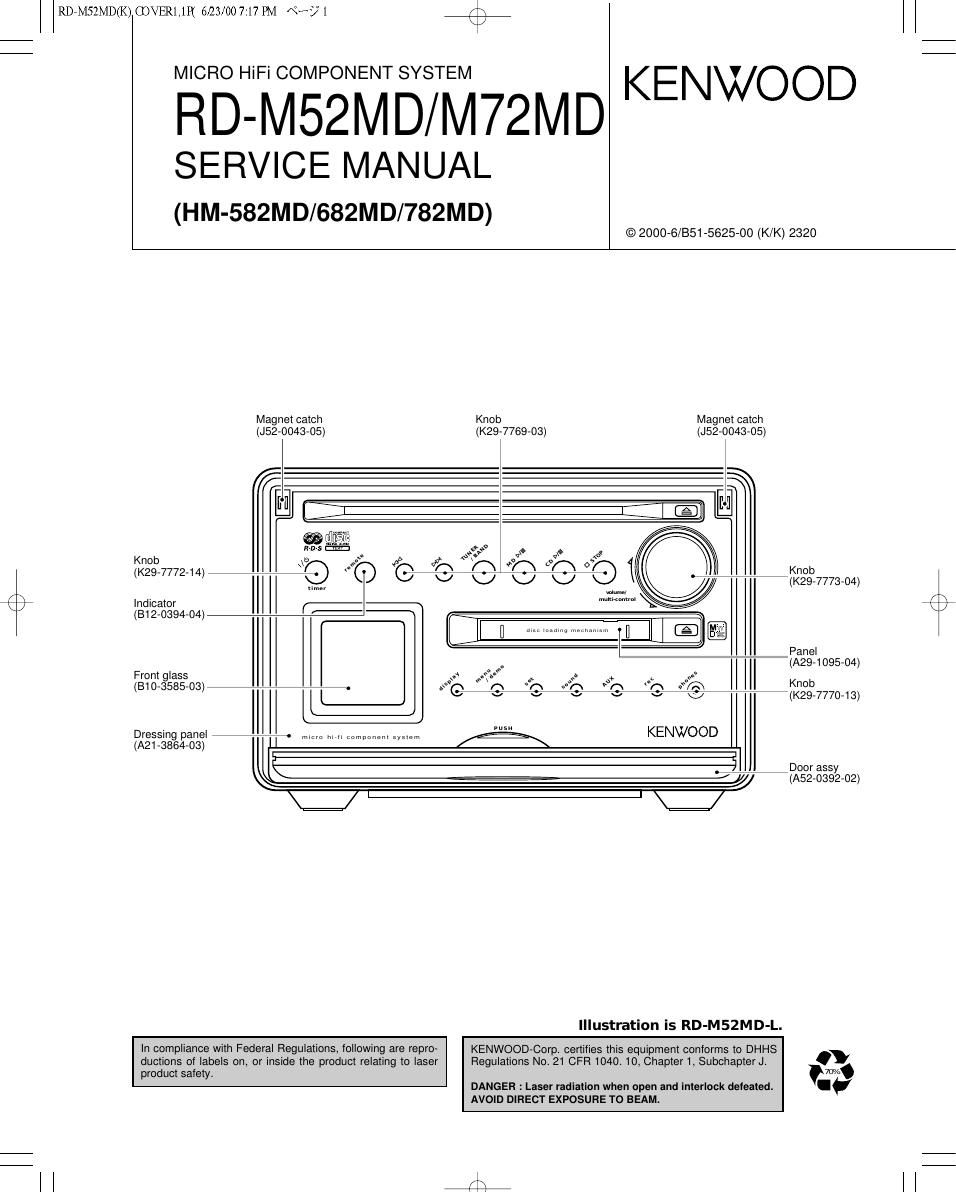

Kenwood RDM 72 MD Service Manual

Page 2

RDPMSZMD(K) COVER1,1P( 6/23/00 7:17 PM «3? 2 K \

RD-M52MD/M72MD

CONTENTS / ACCESSORIES / CAUTIONS

Contents
CONTENTS / ACCESSORIES / CAUTIONS
EXTERNAL VIEW .........................................
CIRCUIT DESCRIPTION.
ADJUSTMENT ..............
PARTS DESCRIPTIONS.

PC BOARD ......................
SCHEMATIC DIAGRAM ..
EXPLODED VIEW
PARTS LIST ...........
SPECIFICATIONS

Accessories

AM loop antenna (1)
(T90-0852-05)

FM indoor antenna (1)
(T90-0858-05)

Batteries (RS/AA) (2)

Feet for speaker (8)

©

Pin spikes (12)
(021-1974-04)

Battery cover(A09-1161-08)

RD-M72MD ONLY

Ami-slip sheets (12)
(616-0878-14)

Cleaning cloth (1)
(WO1-0990-04)

r\
\/

System configration

SYSTEM MAIN UNIT DESTINATION SPEAKER SP CORD PARTS No FOOT FOR SPEAKER
HM-582MD-L RD-M52MD-L ETH LS-M52-L E30-5828-05 J02-0624-08
HM-682MD RD-M52MD»S T2 LS-M52-S E30-5828-05 J02-0624-08
HM-782MD RD-M72MD ETH LS-M72 E30-5880-05 J02-0626-08
Remocon configration
REMOTE CONTROLLER MODEL NAME MODEL DESTINATIONS BATTERY COVER
A70-1385-05 RC-M0507E-IT RD»M72MD THE A09-1183-08
A70-1399-05 RC-M0301 E RXD-M52MD-S T2 A09-1161-08
A70-1399-05 RC-MO301 E RXD»M52MD»L THE A09-1161-08
Cautions
Mm tom
The microcomputer may fall into malfunction (impossibil-
ityto operate, erroneous display, ac.) wha1 the powa cord U nplug the power cord from the power outlet then,
is unplugged while unit is ON or due to an attemal factor. Whlle hoisting the menu/demo key deprssed, PIUQ the
In this case, execute the following procedure to reset the powa co 393" o
microcomputer and return it to normal condition. «afy
0 Please note that resetting the microcomputer clears the
contents stored in and it retums to condition when it left the
factory.
