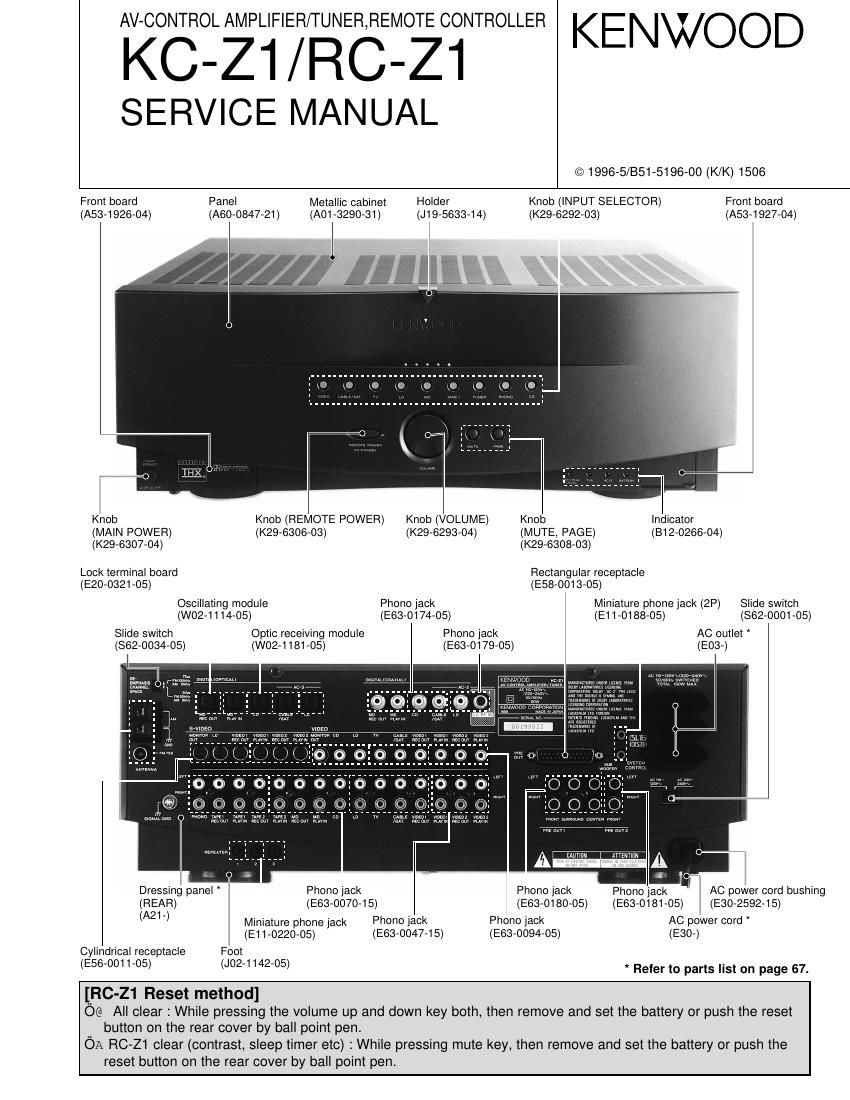

Page 1
AV-CONTROLAMPLIFIER/TUNERBEMOTECONTROLLER KEN V OOD
KC-Z1/RC-Z1 W
SERVICE MANUAL
©1996-5/BS1-5196-00 (K/K) 1506
From board Panel Metallic cabinet Holder Knob (INPUT SELECTOR) Front board
(A53-1926-04) (A60-0847-21) (A01 -3290-31) (J19-5633-14) (K29-6292-03) (A53-1927-04)
. -'- TE
Knob Knob (REMOTE POWER) Knob (VOLUME) Knob Indicator
(MAIN POWER) (K29-6306-03) (K29-6293-04) (MUTE, PAGE) (312-0266-04)
(K29-6307-04) (K29-6308-03)
Lock terminal board Rectangular receptacle
(E20-0321-05) (E58-0013-05)
Oscillating module Phono jack Miniature phone jack (2P) Slide switch
(W02-1114-05) (E63-0174-05) (E11-0188-05) (862-0001-05)
Slide switch Optic receiving module Phono jack AC outlet
(862-0034-05) (W02-1181-05) (E63-0179-05) (EO3-)
a mnrm fl
1
Dressing panel Phono jack Phono jack Phono jack AC power cord bushing
(REAR) (EGG-007045) (E63-0180-05) (E63-0181-05) (E30-2592-15)
(A21 -)
Miniature phone jack Phono jack Phono jack AC power cord
(EGG-004745) (E63-0094-05)
(E11-0220-05) (E30-)
Cylindrical receptacle Foot
(E56-0011-05)
[RC-Z1 Reset method]
0@ All clear : While pressing the volume up and down key both, then remove and set the battery or push the reset
button on the rear cover by ball point pen.
OA RC-Z1 clear (contrast, sleep timer etc) : While pressing mute key, then remove and set the battery or push the
reset button on the rear cover by ball point pen.
(J02-1142-05)
* Refer to parts list on page 67.
Page 2
CONTENTS / ACCESSORIES
Contents
CONTENTS / ACCESSORIES .. 2 WIRING DIAGRAM
LCD CONTROLLER 3 PC BOARD .....
DISASSEMBLY FOR REPAIR .. 4 SCHEMATIC DIAGRAM.
BLOCK DIAGRAM .............. 5 EXPLODED VIEW
CIRCUIT DESCRIPTION. 7 PARTS LIST....
ADJUSTMENT ................... . 17 SPECIFICATIONS....
Accessories
I N
TouchPanel/LCD controller (1) Batteries for TouchPanel Infra-Red (IR) Repeater
(X94-1080-10) (DR17-type) (2) /Transmitting assy (1)
(WO3-4898-05) (W02-2542-05)
T N
Battery cover (A09-0334-13)
Audio cables (3) , , , AM loop antenna assy (1) (T90-0826-05) 777777
(E30-2600-05)
Loop antenna stand
(J19-3645-05)
System control cable (1) Antenna adaptor(1) FM indoor antenna (1) AC plug adaptor (1)
(E30-2733-05) (T90-0827-05) (T90-0176-05) (E03-0115-05) : M type
r
$4
\ J
Instruction manual
Paris No.(".')@ Parts N0.0A Destination
ENGLISH 860-2476-00 360-2758-00 K, M
FRENCH BSO-Z477-00 360-2759-00
CHINESE 860-2478-00 360-2760-00
TAIWAN ESE 860-2479-00 360-2761-00
SPANISH 860-2724-00 360-2762-00
