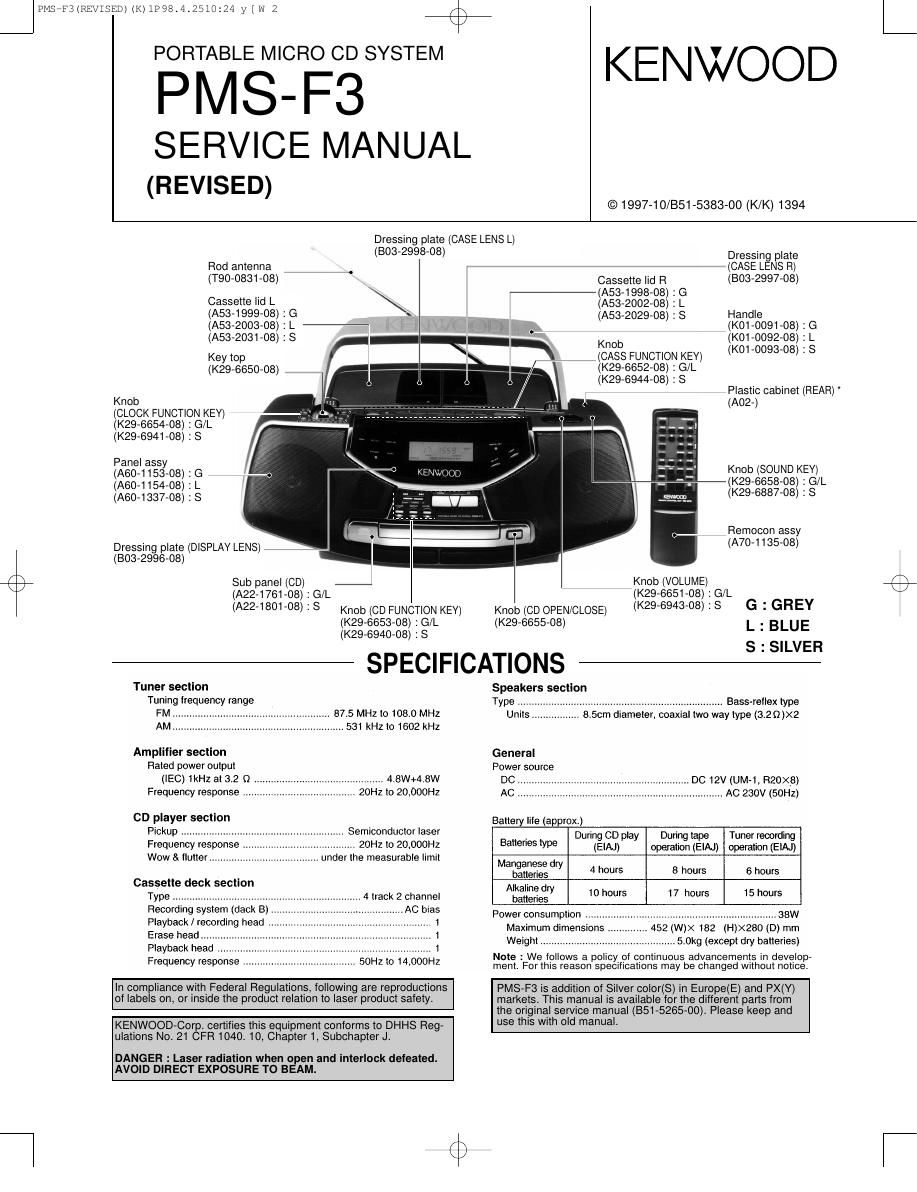

PMSEFMREVISED) (K) 1P98t4.2510124 y [w 2

PORTABLE MICRO CD SYSTEM

PMS-F3

SERVICE MANUAL

(REVISED)

s?

KENWOOD

© 1997-10/851-5383-00 (K/K) 1394

Dressing plate (CASE LENS L)

(803-2998-08)

Rod antenna
(T90-0831-08)

Cassette lid L

(A53-1999-08) : G
(Asa-zooa-os) : L
(A53-2031-08) :8

Key top
(K29-6650-08)

Knob

(CLOCK FUNCTION KEY)
(K29-6654-08) : G/L
(K29-6941-08) : 8

Panel assy

(A60-1153-08) : G
(A60-1154-08) : L
(A60-1337-08) :s

%

Dressing plate (DISPLAY LENS)
(BOG-299608)

\ Sub panel (CD)
(A22-1761-08) : G/L

(2480108) 1 3 Knob (CD FUNCTION KEY)

(K29-6653-08) :G/L
(K29-6940-08) :s

Dressing plate

(CASE LENS Fl)
Cassette lid R (BOB-299708)
(A53-1998-08) :G

(A53-2002-08) : L

(A53-2029-08) : S Handle
(KOl-0091-08) I
(Km-009208) I

Kn°b (K01-0093-08) :

(CASS FUNCTION KEY)
(Kzo-eesz-os) :G/L
(K29-6944-08) :s

(Dr-g)

(A02-)

Knob (SOUND KEY)
(K29-6887-08) : s

Remocon assy
(A70-1135-08)

Knob (VOLUME)
(K29-6651-08) :G/L

Knob (CD OPEN/CLOSE) (K29-6943-08) :s G : GREY
(K29-6655-08) L : BLUE
S : SILVER

SPECIFICATIONS

Tuner section
Tuning frequency range
FM t.
AM t.

87.5 MHZ to 1080 MHZ
531 kHz to 1602 kHz

Amplifier section
Rated power output
(IEO) 1kHZ at 3.2 fl .............................................. 4.8W+4,8W
Frequency response ........................................ 20Hz to 20,000Hz

CD player section
Pickup ........................................ Semiconductor laser
Frequency response ....... 20Hz to 20.000Hz
Wow & flutterww nder the measurable limit

Cassette deck section

Type ,,,,,, 4 track 2 channel
Recording system (dack B) . AC bias
Playback / recording head 1
Erase head 1
Playback head . 1

Frequency response 50Hz to 14.000Hz

Speakers sectlon

Type Bassqellex type
Unit . 8.50m diameter. coaxial two way type (3.2 Q)X2
General
Power source
DC DC 12V (UM~1. RZOXS)

AC AC 230v (son)

Battery life (approx)

. During CD play During tape Tuner recording
Bauer We (EIAJ) operation (EIAJ) operation (ElAJ)
M d
31:21:22: ry 4 hours 8 hours 6 hours
Alkaline dry
batteries 10 hours 17 hours 15 hours
Power consumption .................................................................... 38W

Maximum dimensions 452 (W)>< 182 (H)><280 (D) mm
Weight ...................... 5.0kg (except dry batteries)

Note : We follows a policy of continuous advancements in develop
ment. For this reason specifications may be changed without notice.

In compliance with Federal Regulations, following are reproductions
of labels on, or inside the product relation to laser product safety.

KENWOOD-Cor . certifies this equipment conforms to DHHS Reg-
ulations No. 21 FR 10401 10, Chapter 1, Subchapter J1

DANGER : Laser radiation when 0 en and interlock defeated.
AVOID DIRECT EXPOSURE TO B AM.

PMS-F3 is addition of Silver color(S) in Europe(E) and PX(Y)
markets. This manual is available for the different parts from
the original service manual (851-5265-00). Please keep and
use this with old manual.

Plastic cabinet (REAR)

(K29-6658-08) : G/L

Page 2

Pmsrrsmawsao) (K) 11398.4.2510124 y [w 3

a?

CONTENTS / ACCESSORIES / CAUTION

Contents

SPECIFICATIONS ........................................ Top cover
CONTENTS / ACCESSORIES / CAUTION ............... 2
SCHEMATIC DIAGRAM ............................................ 3

Accessories

EXPLODED VIEW
PARTS LIST ..........

Remote control unit ........ (t)
(A70-1135-08)

Batteries (RG/AA) ............ (2)

Power cord
(E30-2865-08) Y
(E30-2866-08) :T
(E30-2877-08) : E

Cautions

K Beware of condensation

When water vapor comes into contact with the surface of cold mate-

rial, water drops are produced. If condensation occurs, correct oper-

ation may not be possible, or the unit may not function correctly.

This is not a malfunction, however, and the unit should be dried. (To

go this), turn the POWER switch ON and leave the unit for several
ours.

Be especially careful in the following conditions:

When the unit is brought from a cold place to a warm place, and
there is a large temperature difference.

When a heater starts operating.

When the unit is brought lrorn an air-conditioned place to a
place of high temperature with high humidity.

When there is a large difference between the internal tempera-
ture of the unit and the ambient temperature, or in conditions
where condensation occurs easily.
