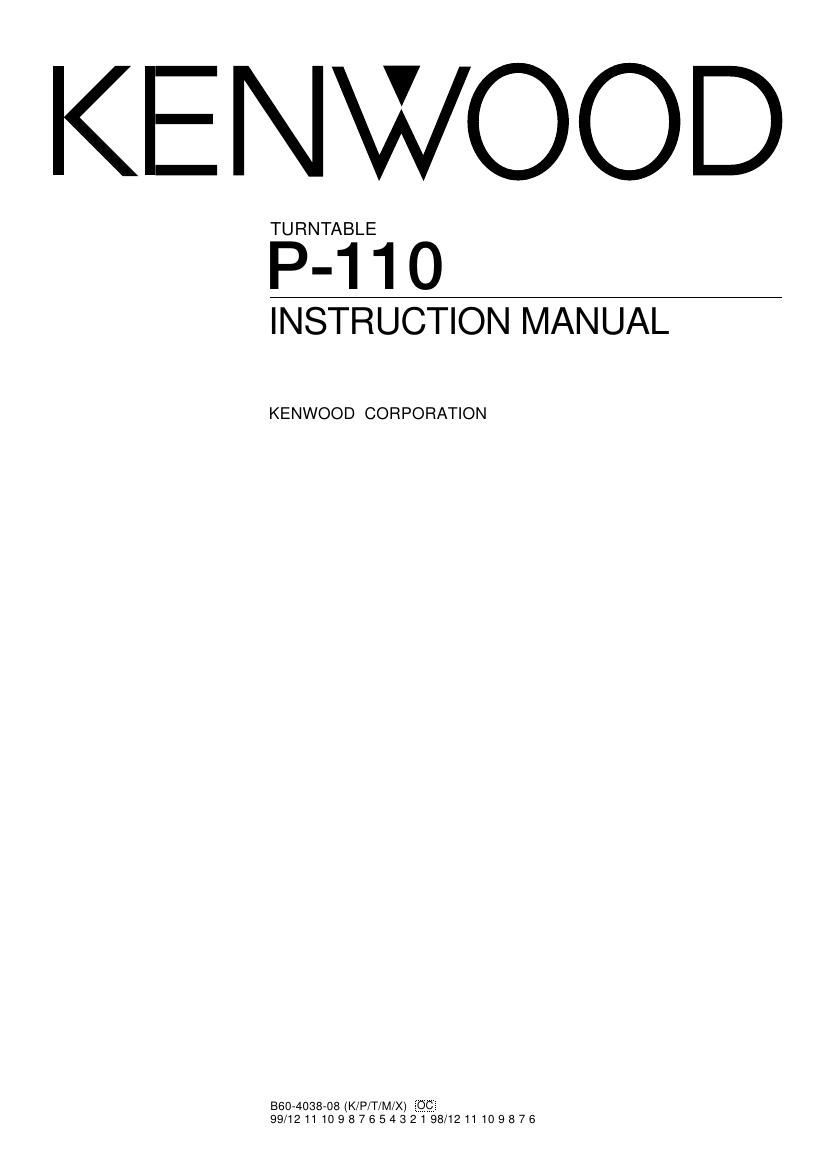

Page 1

2 P-110 (En) Caution : Read the pages marked carefully to ensure safe operation. Contents Introduction Your choice of this product indicates that you are a devotee to ex- cellence in sound reproduction. We appreciate your patronage and take pride in the long tradition of quality components that our com- pany represents. So that you can get the most out of your unit, we suggest that you take the time to read through this manual before you hook up and operate your system. This will acquaint you with operating features and system-connection considerations so that your listening pleasure will be enhanced right from the start. You will notice that in all aspects of planning, engineering, styling, oper- ating convenience and adaptability we have sought to anticipate your needs and desires. Keep this manual handy for future reference. Unpacking Unpack the unit carefully and make sure that all accessories are put aside so they will not be lost. Examine the unit for any possibility of shipping damage. If your unit is damaged or fails to operate, notify your dealer immediately. If your unit was shipped to you directly, notify the shipping company without delay. Only the consignee (the person or company receiv- ing the unit) can file a claim against the carrier for shipping damage. We recommend that you retain the original carton and packing ma- terials for use should you transport or ship the unit in the future. Introduction.................................................................................. 2 Before applying power................................................................ 3 Safety precautions....................................................................... 3 IMPORTANT SAFEGUARDS....................................................... 4 Parts nomenclature and assembly............................................. 6 Connections.................................................................................. 6 Using the stylus cover................................................................. 7 Replacing the stylus.................................................................... 7 Operating instructions................................................................. 7 In case of difficulty...................................................................... 8 Specifications............................................................................... 8 For the supplied accessories check them referring to the ÒParts nomenclature and assemblyÓ on page 6.
