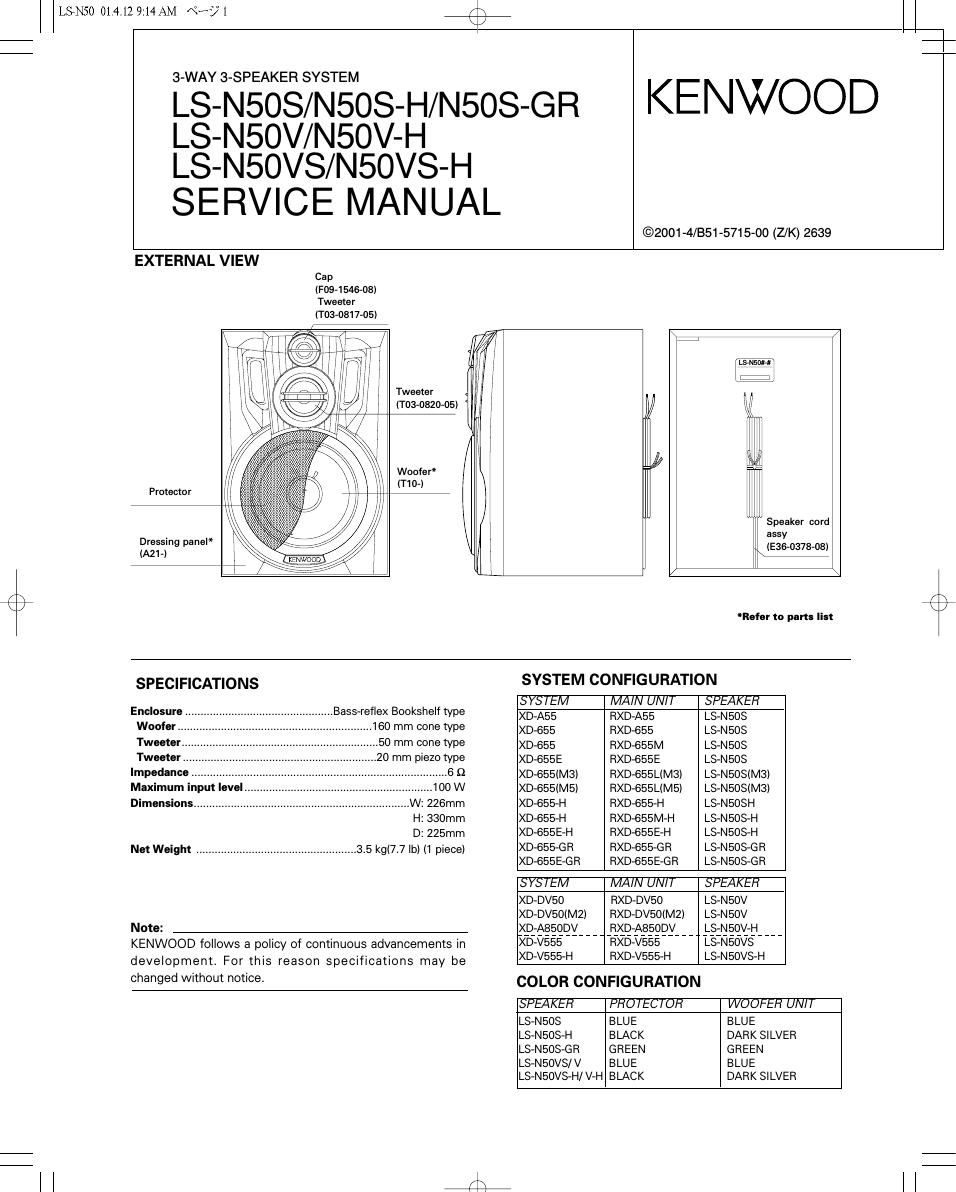

Kenwood LSN 50 VS Service Manual

Page 2

r\
\/

LSNSO 01.4.129:14AM \°*/2

BLU +
WHT ,

PARTS LIST

LS-N5OS/-H/-GR/N5OV/-H/N50VS/-H

DIVIDING NETWORK UNIT

SP3
C1
E BLU
+
1.81150 L<
_< SP2
BLK /
+ 0 RED
L< +
E SP1
, oi-fi ,
BLK
<< ; #105 FASTON
<< ; #. 110 FASTON
* New Parts
Parts without Pans No. are not supplied.
Les articles non mentionnes dans Ie Parts No: ne sont pas foumis.
Teile ohne Parts No. werden nicht geliefert.
New . . Desti-
Ref. No. Address Parts Parts No. Description nation Model
LS-NSOS/NSOS-H/NSOS-GR/N50V/N50V-H/N50VS/N50VS-H
- * A21-3409-08 DRESSING PANEL ASSY 508/5OV/50VS
- * A21-3410»08 DRESSING PANEL ASSY 5OS-GR
- * A21-3411-08 DRESSING PANEL ASSY 5OS-H/50V-H/50VS-H
C1 C90-5080-05 NP-ELEC 1.8UF 5OWV
- * E36-0378-08 SPEAKER CORD ASSY
- * F094546-08 CAP
- * H10-8227»08 POLYSTYRENE FOAMED FIXTURE MM3EGI
- * H10-8228»08 POLYSTYRENE FOAMED FIXTURE MM3EGI
- * H10-8237-08 POLYSTYRENE FOAMED FIXTURE KPXY
- * H10-8238-08 POLYSTYRENE FOAMED FIXTURE KPXY
- * H214328-08 PROTECTION SHEET MM3EGI
- H25-2278-08 PROTECTION BAG KPXY
- * H514 655-08 ITEM CARTON CASE MM3 50$
- * H514656-08 ITEM CARTON CASE EC 508
- * H514 657-08 ITEM CARTON CASE EG 5OS-GR
- * H514 659-08 ITEM CARTON CASE EG 5OS-H
- * H514 660-08 ITEM CARTON CASE M 5OS-H
- * H514661-08 ITEM CARTON CASE M 50V
- * H514 662-08 ITEM CARTON CASE EG 50V
- * H514 665-08 ITEM CARTON CASE MI 50VS
- * H514 667-08 ITEM CARTON CASE MI 50VS-H
SP1 * T10-0993-05 WOOFER 50$
SP1 * T10-0994-05 WOOFER 5OS-GR
SP1 * T10-1112-05 WOOFER 5OS-H
SP1 * T10-0995-05 WOOFER 50V/50VS
SP1 * T10-1113-05 WOOFER 50V-H/5OVS-H
SP2 T03-0820-05 TWEETER
SP3 T03-0817-05 TWEETER
L: Scandinavia K: USA P: Canada R: Mexico c: China I: Malaysia
Y: PXlFor East Hawaii) T: England E: Europe G: Germany V: ChinalShanghai)
Y: AAFESIEurope) X: Australia 0: Russia H: Korea M: Other Areas

A

indicates safety critical components.
