Kenwood LS 1200 Owners Manual

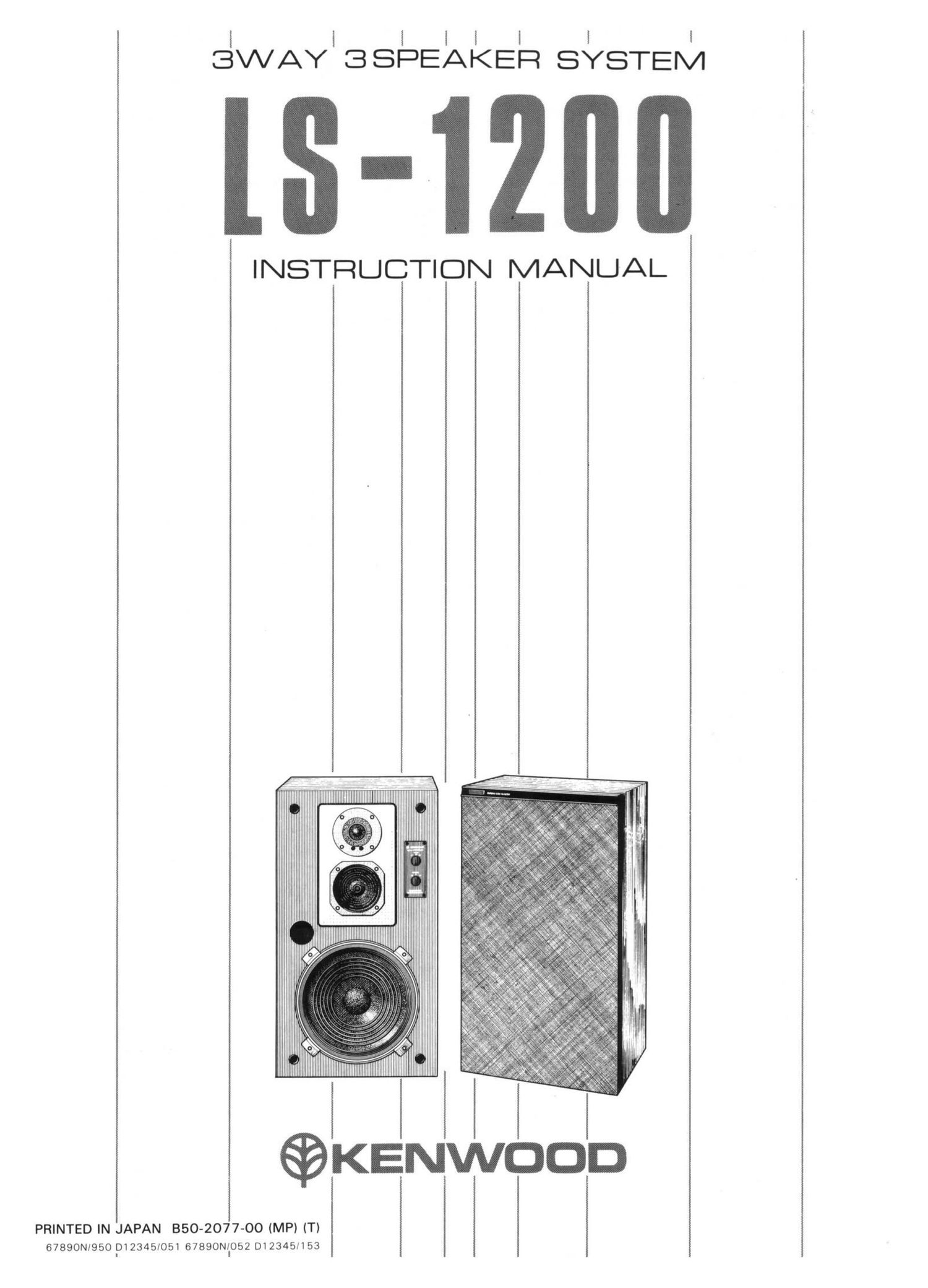

Page 1

I I I I I l I I
SWAY SSFEAKEF? SYSTEM

IS 12"

INSTRUCTION MANUAL

PRINTED IN JAPAN 850-2077-00 IMP) (T)
67890N/950 P12345051 67890Nl'052 012345/153

Page 2

INTRODUCTION

Thank you for selecting our speaker system.
It is a 3 way, 3 speakers system which em-
bodies KENWOODs rich experience and
outstanding sound technology.

This manual should be read carefully to
understanding how to connect and operate the
new speaker correctly.

FOR YOUR RECORDS

Record the serial number, found on the back
of the unit, in the spaces designated on the war-
ranty card, and in the space provided below.
Refer to the model and serial numbers
whenever you call upon your KENWOOD dealer
for information or service on this product.
Model LS-1200 Serial number

UNPACKING

Examine the unit for any possibility of ship-
ping damage. If your unit is damaged or fails to
operate, notify your dealer immediately. If your
unit was shipped to you directly, notify the
shipping company without delay. Only the con-
signee (the person or company receiving the
unit) can file a claim against the carrier for ship-
ping damage.

We recommend that you retain the original
carton and packing materials for use should you
transport or ship the unit in the future.

INSTALLATION PRECAUTIONS

(3) Avoid locations subject to direct sunlight.

(b) Avoid high or low temperature extremes.

(c) Make sure power is off before making any
system connections.

WARNING:
TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.

POSITION OF THE SPEAKER

For best reproduction, it should be placed in
the corner of a room. If this is not possible, it
should at least be placed against a wall.

Bookshelf type speakers should not be plac-
ed directly on the floor as bass response will be
insufficient when so positioned. Also sound ef-
fect will be poor since the speakers are placed
below the ears of the listener.

Bookshelf speakers should be placed on ful-
ly packed, sturdy bookshelves. Avoid thin
shelves that may vibrated and cause poor bass
response. If bookshelf speakers must be placed
on the floor, be sure to put them on bricks or
concrete blocks which are hard and heavy.

SYSTEM CONNECTION

When connecting or disconnecting speakers
from an amplifier, the amplifier must be turned
off.

This speaker system has a nominal im-
pedance of 8 ohms, and will operate satisfac-
torily with an amplifier whose output im-
pedance is within the range of from 4 to 16
ohms. Connect the input terminals on the rear
of each speaker to the speaker output terminals
on the rear of the amplifier. Be sure to connect
the ® terminal of the amplifier to the GB terminal
of the speaker, and likewise the respective G) to
terminals.

RIGHT LEFT
SPEAKER SPEAKER
-+ _ -+
. s. .43

SPEAKERSI4~IGOI-

LEFT? (E? J
@ C0)

RIGHT SPEAKER TERMINAL
(AMPLIFIER or RECEIVER)

J
