CT*401(K)COVER1,1P(5/10/006:08PM «>91 +

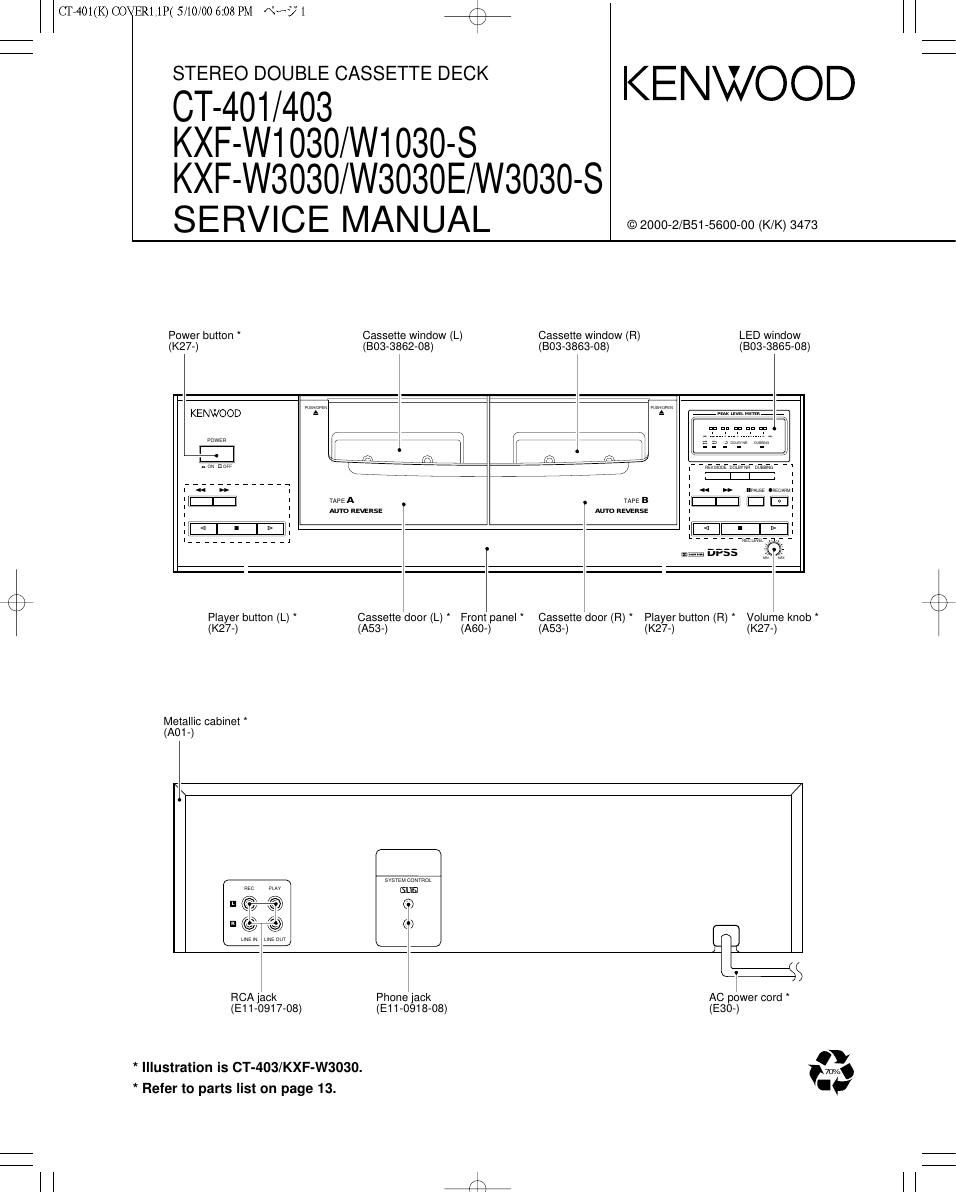

STEREO DOUBLE CASSETTE DECK V
CT-401/403 KENWOOD
KXF-W1030/W1030-S

KXF-W3030/W303OE/W3030-S
S E RV I C E MAN UAL ©2000-2/B51-5600-00 (K/K) 3473

Power button Cassette window (L) Cassette window (Fl) LED window
(K27) (Boa-386208) (B03-3863-08) (803-3865-08)

KENWOOD
x /
(74:7;7777771
#:E 1 mm
. I
I Ell:ll:l I
. ____________ .
3
\
Player button (L) Cassette door (L) Front panel Cassette door (R) Player button (Fl) Volume knob
(K27) (A53) (A60) (A53-) (K27) (K27)

Metallic cabinet
(A01)

svsikmcomaux

RCA jack Phone jack AC power cord
(E11-0917-08) (E11-0918-08) (E30)
* Illustration is CT-403/KXF-W3030. v.70)

* Refer to parts list on page 13.

Page 13

rx
\/

CT7401(K) COVER1,1P( 5/10/00 6:08 PM NH? 16

CT-401/403/KXF-W1030/W3030

SPECIFICATIONS

Track System IIIIIII
Recording System
Heads A DECK

Playback heads .......................................... 1

B DECK

Playback / recording heads

Erasing head
Motors A and B DECK
Wow and Flutter
Frequency Response

......... 4 track, 2 channel stereo
AC bias (Frequency: 105 kHz)

.3 0/, (WRMS)

TYPE I Tape. 30 Hz to 13,000 Hz, t 3 dB

TYPE lI Tape 30 Hz to 13,000 Hz, i 3 dB
Signal to Noise Ratio

Dolby NR OFF iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii 57 dB

Dolby B NR ON (3rd, H.D., 3 %, TYPE l| Tape) 00000 66 dB

Input sensitivity / Impedance

LINE IN .................................................... 122.8 mV / 54 k9
Output Level / Impedance
LINE OUT .................................................. 775 mV/1.1 k9
[General]
Power Consumption iiiii 14 W
Dimensions W 40mm (17-5/16)
H 128 mm (5-1/16'
D

')
.270 mm (10-5/8")
)

Weight (Net) ............. 4.1 kg (9.0 lb

1. KENWOOD follows a policy of continuous advancements in development. For this reason specifications

NOIe may be changed without notice.

2. The full performance may not be exhibited in extremely coud location (under a water-freezing temperature).

Note:

Component and circuit are sub)ect to modification to insure best operation
under differing local conditions. This manual is based on Europe (E) standard,
and provides information on regional circuit modification through use of alterr
nate schematic diagrams, and information on regional component variations
through use of pans list.
