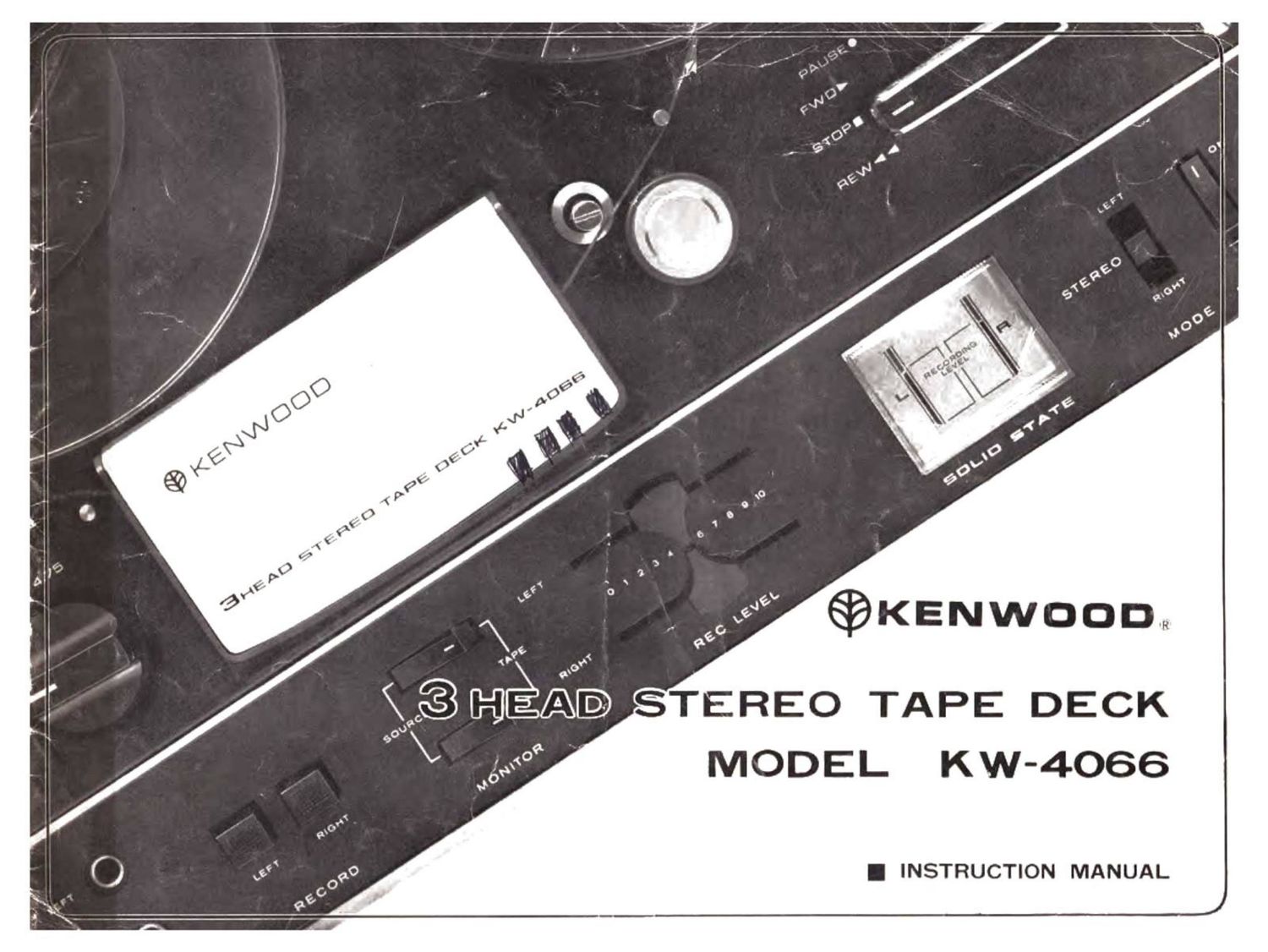

$KENWOODR
E STEREO TAPE DECK
H MODEL KW-4066
I INSTRUCTION MANUAL
@KENWOODQ
Thank you for purchasing our product.' The KENWOOD
Kw-4066 is a high quality stereo tape deck which has been
especially engineered to meet the highest standards and
reQuirements of audio fans. It is a dependable, one motor,
3'head system which employs all-silicon-transistor recording
and playback preamplifiers. It has also been designed so
that it can be readily panel~mounted to form an integral
part of your Hi-Fi system. We are sure that the KW-4066
as well as other fine KENWOOD products, will give you
many years of Satisfaction and pleasure in .high quality
sound enjoyment.
WARRANTY REGISTRATION
IMPORTANT 1 Fill out your warranty registration and mail it
at once.
TABlE OF CONTENTS
SPECIBI FeatUres ............................................................ 3
Before Using the Tape DECk .................................. . .......... 3
Parts Nomenclature and Their Functions --------------------------- 4
'ntefconnecting Diagram .................................................... 6
HOW to Attach the Tape ................................................... 7
How to Reproduce RecordingstPlayback) --------------------------- '7
How to Make Recordings
Specie] Recordings .......... ............................................. '0
Care and Maintenance ...................................... ' .............. |2
Panel Mounting ............................................................... l3
Helpfu] Hints ................................................................. .3
Troubleshooting ............................................................... | 4
\l
speCiICBtIOHS .................... Lu: ............................... ........ '5
\ .
