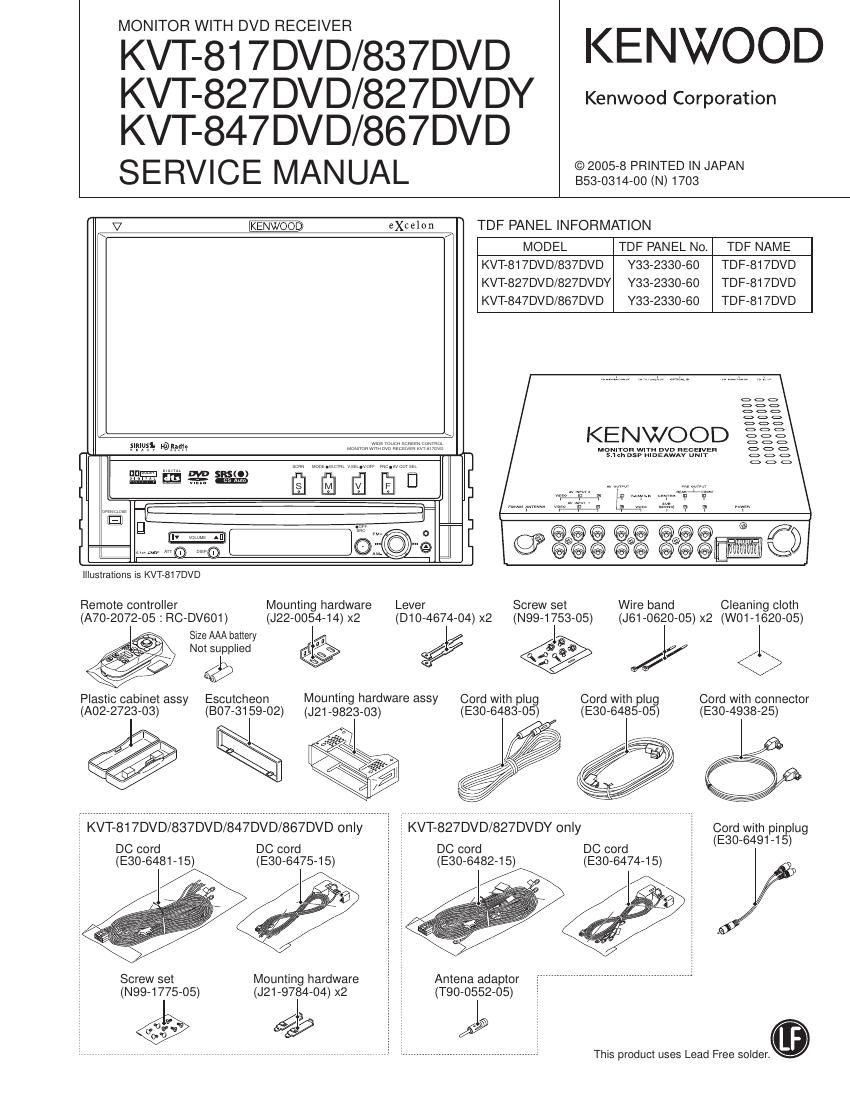

Kenwood KVT 837 DVD Service Manual
This is the 116 pages manual for Kenwood KVT 837 DVD Service Manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
Page: 1 / 116
Extracted text from Kenwood KVT 837 DVD Service Manual (Ocr-read)
Page 2
KVT-817DVD/827DVD/827DVDY
KVT-837DVD/847DVD/867DVD
NOTES ON ASSEMBLING THE MECHANISM
1. Fasten Screw A so that the interval (a) will be about 5.2mm
and the interval (b) will be about 2.6mm (The interval (a)
can be measured using a pair of vernier calipers or similar
tools.)
2. Turn B so that Position (0) will come at about the center of
interval (d).
3. Then, play the test disc and fine tune A or B so that the jitter
value would be minimized.
