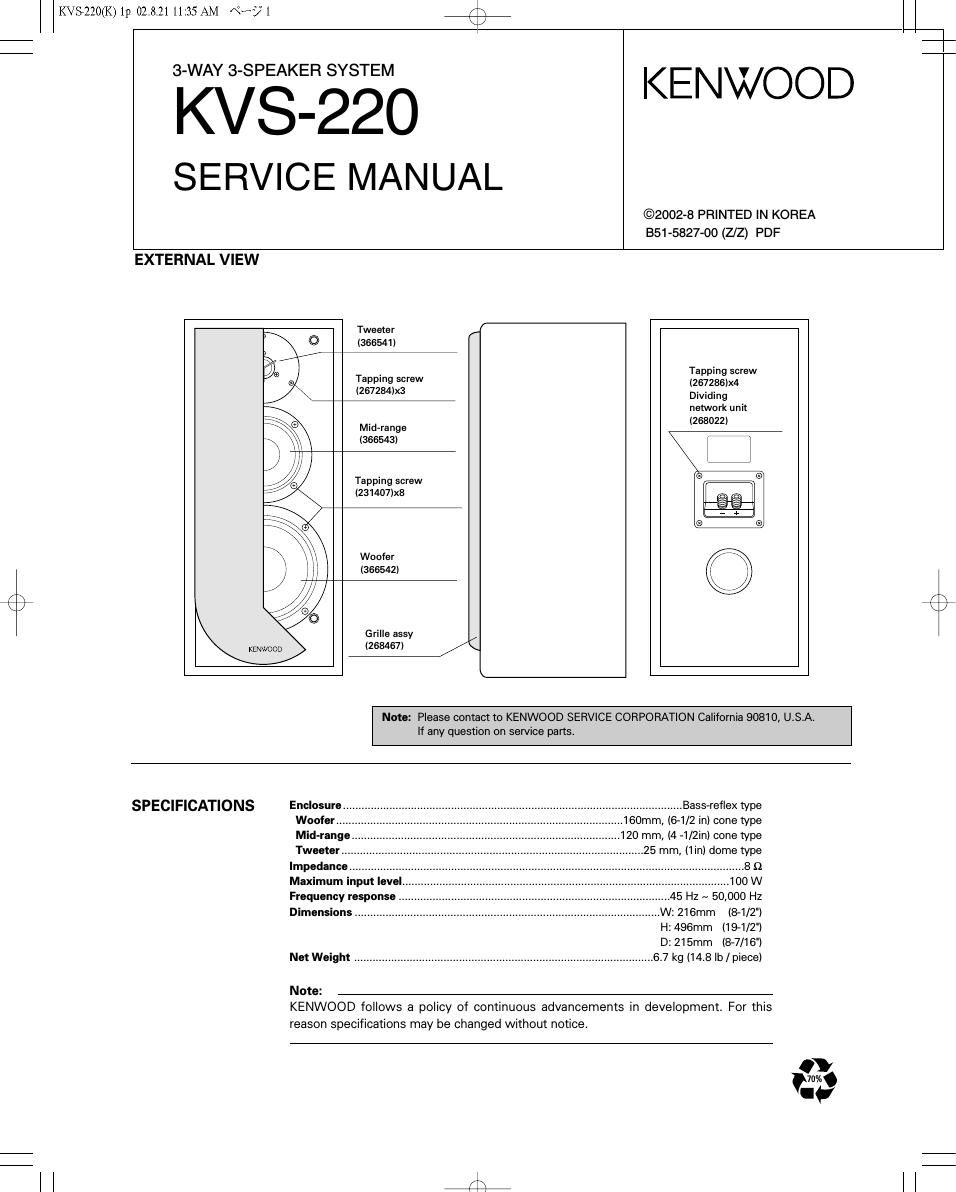

Page 1
KVSZZO(K)1p 02.8.21 11:35 AM \°-/1 /\
3-WAY 3-SPEAKER SYSTEM KENWOOD
KVS-220
SERVICE MANUAL
©2002-8 PRINTED IN KOREA
851-5827-00 (Z/Z) PDF
EXTERNAL VIEW
Tweeter /
(366541)
. Tapping screw
Tapping screw (267286)x4
(267284)x3 Dividing
network unit
268022
Mid-range I )
(366543)
Tapping screw
I231407Ix8
Woofer
(366542I
r\
\/
Grille assy
KENWOOD [268467) \
Note: Please contact to KENWOOD SERVICE CORPORATION California 90810, U.S.A.
If any question on service pans.
SPECIFICATIONS Enclosure.
Woofer...
Mid-rang
Tweeter ..
Impedance .............
Maximum input leve
Frequency response
Dimensions ...........
................. Bass-reflex type
.lGOmm, I6-1/2 in) cone type
120 mm, I4 -1/2in) cone type
..... 25 mm, (linl dome type
...8 Q
00 W
...45 HZ ~ 50,000 HZ
W: 216mm I8-l/2")
H; 496mm 094/2")
D: 215mm (8-7/16")
. .7 kg (14.8 lb/piece)
Net Weight .
Note:
KENWOOD follows a policy of continuous advancements in development. For this
reason specifications may be changed without notice.
Page 2
KVSZZO(K) 1p 02.8.21 11:35 AM \°-72
KVS-220
DIVIDING NETWORK UNIT/PARTS LIST
DIVIDING NETWORK UNIT
(268022)
PARTS LIST
* New Parts
r\
\/
fij
Parts without Parts No. are not supplied.
Les articles non mentionnes dans Ie Parts No. ne sont pas tournis.
Teile ohne Parts Na werden nicht geliefert.
C BLK
<< ; It. 205 FASTON
<< ; It. 110 FASTON
Ref. No. Address Iglew Parts No. Description Desti- Re-
ans natlon marks
KVS-220
- * 268467 GRILLE ASSY
- * 268633 INSTRUCTION MANUAL
- * 268634 WARRANTY CARD
- * 231712 PROTECTION BAG
- * 231821 POLYSTYRENE FOAMED FIXTURE
- * 268644 ITEM CARTON CASE
- * 268725 POLYSTYRENE FOAMED FIXTURE
- * 231407 TAPPING SCREW
- * 267284 TAPPING SCREW
- * 267286 TAPPING SCREW
SP1 * 366542 WOOFER
SP2 * 366543 MID-RANGE
SP3 * 366541 TWEETER
- * 268022 DIVIDING NETWORK UNIT
L: Scandinavia K: USA P: Canada R: Mexico C: China I: Malaysia
V: PXlFor East Hawaii! T: England E: Europe G: Germany V: China(Shanghai)
V: AAFESlEurcpeI X: Australia 0: Russia H: Korea M: Other Areas
A indicates safety critical components.
Note: Please contact to KENWOOD SERVICE CORPORATION
CaIifornia 90810, USA
If any question on sen/ice parts.
