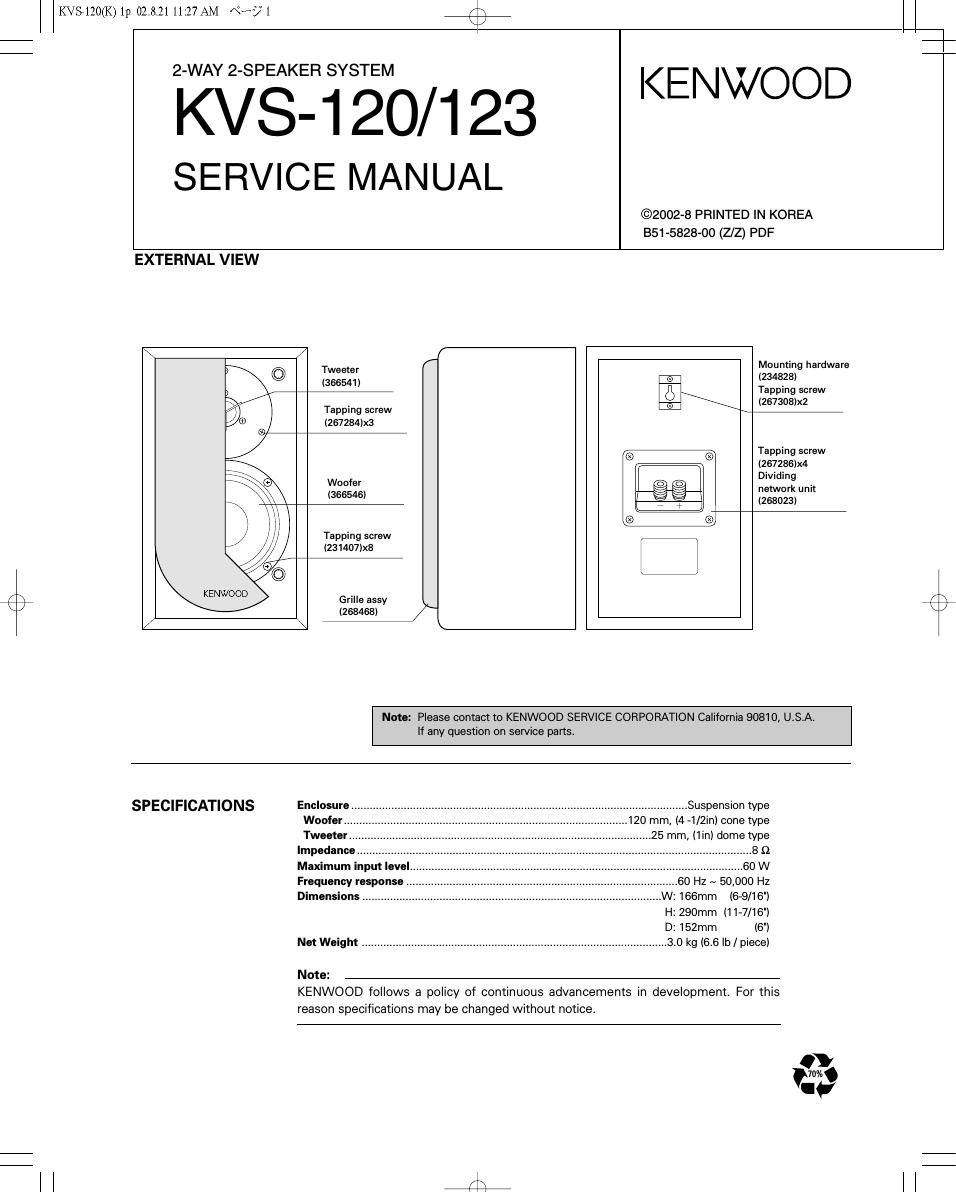

Page 1
r\
\J
KV5120(K) 1p 02.8.21 11:27 AM \°~/1 /\
2-WAY 2-SPEAKER SYSTEM
KVS-120/12
SERVICE MANUAL
KENWOOD
©2002-8 PRINTED IN KOREA
851-5828-00 (Z/Z) PDF
EXTERNAL VIEW
Mounting hardware
Tweeter
(366541) (0 (234828)
E Tapping screw
m (267308)XZ
Tapping screw
(267284)x3
Tapping screw
(267286))(4
Dividing
32:17:22) network unit
[268023)
Tapping screw
(231407IX8
KENWOOD Grille assv
1268468I
Note: Please contact to KENWOOD SERVICE CORPORATION California 90810, U.S.A.
If any question on service pans.
SPECIFICATIONS Enclosure..
............... Suspension type
Woofer.... 120 mm, (4 -i/2inl cone type
Tweeter... 25 mm, Ilin) dome type
Impedance ............................. 8 0
Maximum input level ...... 60 W
Frequency response . 0 Hz ~ 50,000 Hz
Dimensions ................................................................................................. W: i66mm (6-9/16")
H: 290mm (11»7/16")
D: 152mm (6")
Net Weight ................................................................................................... 3.0 kg (6.6 Ib/ piece)
Note:
KENWOOD follows a policy of continuous advancements in development. For this
reason specifications may be changed without notice.
Page 2
KV5120(K) 1p 02.8.21 11:27 AM \°-/2 /\
KVS-120/123
DIVIDING NETWORK UNIT/PARTS LIST
DIVIDING NETWORK UNIT
(268023)
i- _____________________________ _l
g l n BLU
+ 0 CU (KT +
1.511100 1
INPUT 1 SP2
0 if: BLK
1 1
l l
1 A RED +
l l L<
l l SP1
I Y fl '
l i c BLK
77777777777777777777777777777 7 << ; #. 205 FASTON
<< ; #.110 FASTON
PARTS LIST
r\
\/
* New Parts
Parts without Parts No. are not supplied.
Les articles non mentionnes dans Ie Parts No. ne som pas foumis.
Teile ohne Parts Na: werden nicht geliefert.
Ref. No. Address Iglew Parts No. Description Desti- Re-
ans natlon marks
KVS-1 20/ 123
- * 268468 GRILLE ASSY
- * 268633 INSTRUCTION MANUAL(KVS-1 201
- * 268634 WARRANTY CARD
- * 268637 INSTRUCTION MANUAL(KVS-1 231
- * 231749 PROTECTION BAG
- * 231820 POLYSTYRENE FOAMED FIXTURE
- * 268638 ITEM CARTON CASE
- * 268725 POLYSTYRENE FOAMED FIXTURE
- * 234828 MOUNTING HARDWARE
- * 231407 TAPPING SCREW
- * 267284 TAPPING SCREW
- * 267286 TAPPING SCREW
- * 267308 TAPPING SCREW
SP1 * 366546 WOOFER
SP2 * 366541 TWEETER
- * 268023 DIVIDING NETWORK UNIT
L: Scandinavia K: USA P: Canada R: Mexico C: China I: Malaysia
V: PXlFor East Hawaii! T: England E: Europe G: Germany V: ChinalShanghai)
V: AAFESlEuropel X: Australia 0: Russia H: Korea M: Other Areas A indicates safety critical components
Note: Please contaci to KENWOOD SERVICE CORPORATION
California 90810, USA.
If any question on service parts.
