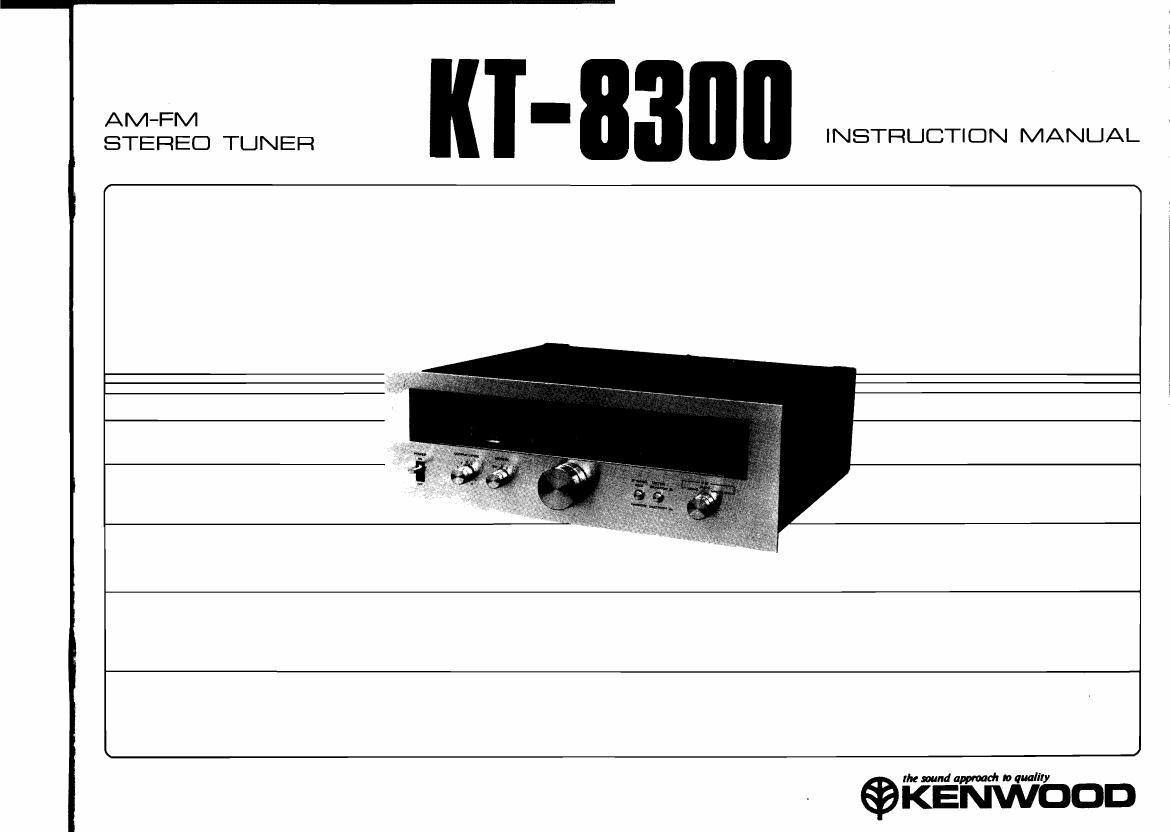

Kenwood KT 8300 Owners Manual

This is the 12 pages manual for Kenwood KT 8300 Owners Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 12
left right
Kenwood KT 8300 Owners Manual

Extracted text from Kenwood KT 8300 Owners Manual (Ocr-read)


Page 2

INTRODUCTION

Thank you for purchasing our tuner. Because we take great pride
in the long tradition of quality components the name Kenwood re-
presents, your purchase of a Kenwood tuner places you in a distinguish-
ed family of connoisseurs of superb high-fidelity sound reproduction.

The purpose of this manual is to acquaint you with the operating
features of your new tuner. You will notice that in every detail of plan-
ning, engineering, styling, operating convenience, and adaptability, we
have sought to anticipate your needs and desires.

We suggest that you read this manual carefully. Knowing how to
set up your tuner, to the best advantage, will enhance your listening
pleasure right from the start. You will also become aware of the ease
with which you can adjust your tuner to meet your special require-
ments.

Turn the pages and become acquainted with the exciting features
of your new tuner that will remain new for endless hours of listening
pleasure.

MAINTENANCE

CONCERNING TRANSISTORS

Transistors differ fundamentally from radio vacuum tubes and
require special attention to ensure their full performance capabilities.
Given proper care, transistors will provide years of practically trouble-
free performance.

(a) Avoid locations subject to direct sunlight.
(b) Avoid high or low temperature extremes.
(c) Keep the tuner away from heat radiating sources.

GROUND

Although broadcasts can be received without a ground connection,
it is recommended that a good ground connection be made to a buried
grounding rod or water pipe to reduce interference and ensure safety.
Never use a gas pipe for a ground connection, however.

NOTES

1. U its shipped to the U .8. A. and CANADA are designed to be
armed with 120 volts AC Only. Units shipped to the Scan-
dimmer: countries are designed to be operated with 220 volts
AC only. Units shipped to the U.K. are designed to be
I «operated with 240 waits AC oniy. Therefore the above units
{fare not equipped «with an AC Voltage Selector Switch so all
reference to such a switch throughout this manual should .be
disregarded.
:2 Units shipped to all other countries are equipped with an AC
, 'tage Selector Switch on the rear panel that is preset at
o the voltage generaliy available in the destina


» A switchaattingand make sure that}: corresponds I '

4 cottage before connection the power cord into

"Voltage Scientor Switch requires ream
rig, low the directions outlined on page 5.

CONTENTS
FEATURES ................................ 3
INTERCONNECTING DIAGRAM ................. 4
CONNECTING INSTRUCTIONS ................. 5
CONTROLS AND THEIR FUNCTIONS ............ 8
OPERATING INSTRUCTIONS ................... 10
TROUBLE SHOOTING ........................ 11

y is very, portant, however, to check the Volt- , ?
