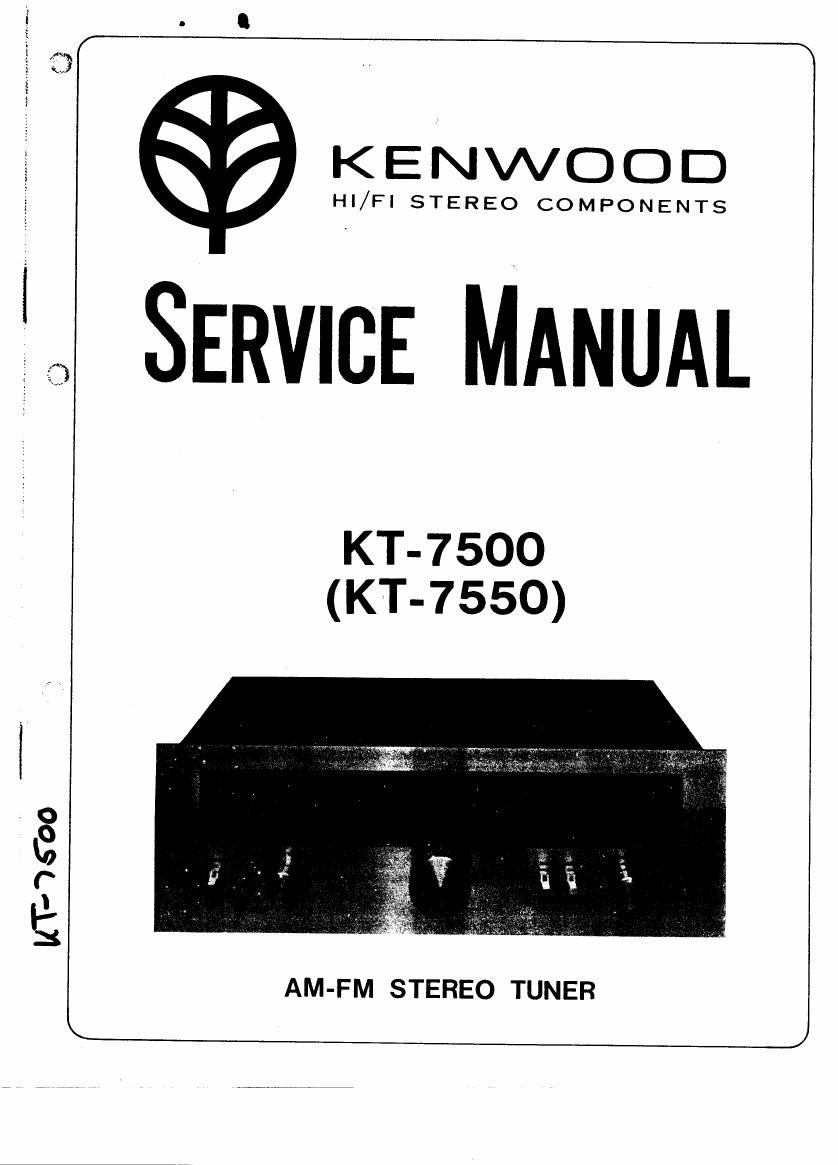

This is the 14 pages manual for Kenwood KT 7500 Service Manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
l 50!] -
TOP VIEW/ DIAL CORD STRINGING
Balun transformer
(L 1 9-0009-05)
Power .
transformer HF unit
(W02~0008-05)
Tuner unit
Pilot lamp
(BBQ-0123705)
Pilot lamp
Lighting acrvIe
resin board (BSD-010905)
(319-0197-03)
' Refer to Destinations'
DIAL CORD STRINGING um pun A. e Pans List.
(015-0155-13) ..... inside
(0154115643) ..... outside
1. Fully close the variable capacitor.
Assemble the dial pulley A with the pulley B and
fix them on the shaft of the variable capacitor using
2 screws.
3. Tie the end of the dial cord to the boss C as shown,
4. Dress the dial cord in the direction of "l" through
5" and wind it 3 turns around the dial shaft start
ing from its lower side. Variable
5. Dress the dial cord in the direction of 6" to "7" 9mm
and wind it 2 turns around the pulley B starting
from its lower side. Then, fix it to the boss D at
the rear side
6. Mount the dial pointerlas shown in the illustration, Sm... my
( D 1 5-0 1 60-04)
Dial man assy
. (Dzomzaoa)
Dial pointer
(321001604)
Small pulley .
(Dis-017004)
t)
