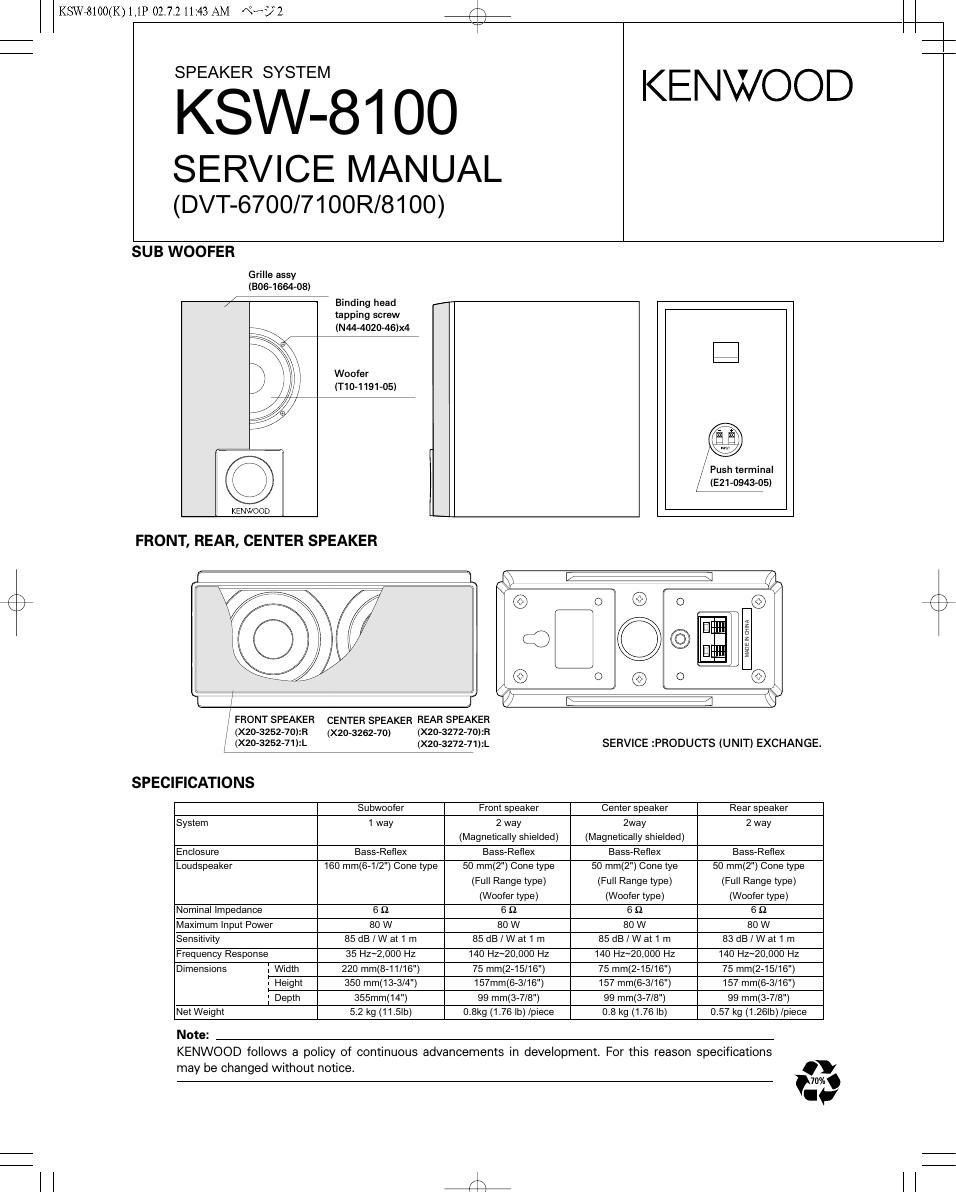

Page 1
KSW-8100
DIVIDING NETWORK UNIT/PARTS LIST
INPUTRED
B LK
+
-
+-
SP1
-ˆ— New Parts
Parts without Parts No.are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.
- G13-1187-08CUSHION (4 PIECES)
- G13-1193-08CUSHION (10 PIECES)
- * H10-8325-08 POLYSTYRENE FOAMED FIXTURE
- * H10-8326-08 POLYSTYRENE FOAMED FIXTURE
- * H10-8327-08 POLYSTURENE FOAMED FIXTURE
- * H21-1382-08 PROTECTION SHEET
- * H25-2548-08 PROTECTION BAG (SATELLITE)
- * H51-1864-08 ITEM CARTON CASE EG
- * H51-1865-08 ITEM CARTON CASE M
- * H51-1866-08 ITEM CARTON CASE XK
- * X20-3252-70 FRONT SPEAKER (R)
- * X20-3252-71 FRONT SPEAKER (L)
- * X20-3262-70 CENTER SPEAKER
- * X20-3272-70 REAR SPEAKER (R)
- * X20-3272-71 REAR SPEAKER (L)
X20-328
- * B06-1664-08 GRILLE ASSY
- * E21-0943-05 PUSH TERMINAL
SP1 * T10-1191-05 WOOFER
Ref. No. Address
NewParts
Parts No. DescriptionDesti-
nation
Re-
marks
L: Scandinavia K: USAP: CanadaR: Mexico C: ChinaI: Malaysia
Y: PX(For East Hawaii) T: EnglandE: EuropeG: Germany V: China(Shanghai)
Y: AAFES(Europe) X: AustraliaQ: RussiaH: Korea M: Other Areas
indicates safety critical components.
KSW-8100 SUB WOOFER
PARTS LISTDIVIDING NETWORK UNIT
SUB WOOFER
2
